CVD Single Crystalline Diamond 70GPa -120GPa Chemical Vapor Deposition Diamond

  • CVD Single Crystalline Diamond 70GPa -120GPa Chemical Vapor Deposition Diamond
Place of Origin Henan, China
Brand Name CAEC
Certification ISO9001, ISO14001, OHSAS18001
Minimum Order Quantity One piece
Price USD 1 for one piece
Packaging Details Standard package for export
Delivery Time 5-8 days
Supply Ability 500000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

CVD Single Crystalline Diamond

,

120GPa Chemical Vapor Deposition Diamond

,

Single Crystalline Diamond 70GPa
Leave a Message
Product Description

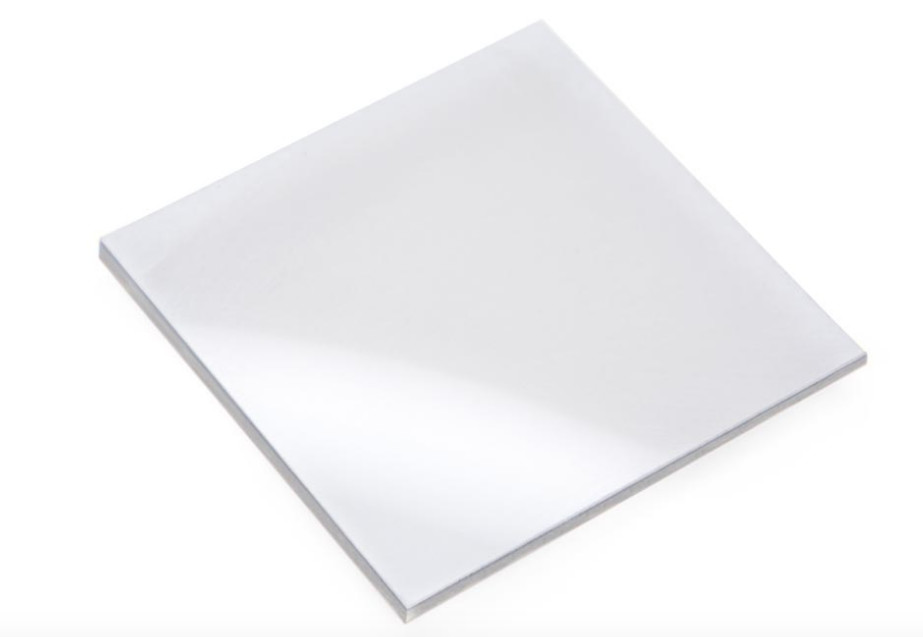

CVD large size single crystalline diamond

CVD Single Crystalline Diamond 70GPa -120GPa Chemical Vapor Deposition Diamond



Dimension: ≤ 20*20*3mm

Nitrogen content: 0.1-10ppm

Hardness: 70-120 GPa

Young's modulus:1050 GPa

Thermal conductivity: 1800-2300W/mK @ room temperature

Coefficient of thermal expansion: 1±0.1 ppm/K @ room temperature



Application:

Can provide a wide range of large size and high quality CVD single crystalline diamond materials, which are used for ultra-high thermal conductivity materials, optical diamond, as well as CVD single crystalline diamonds for research experiments.
