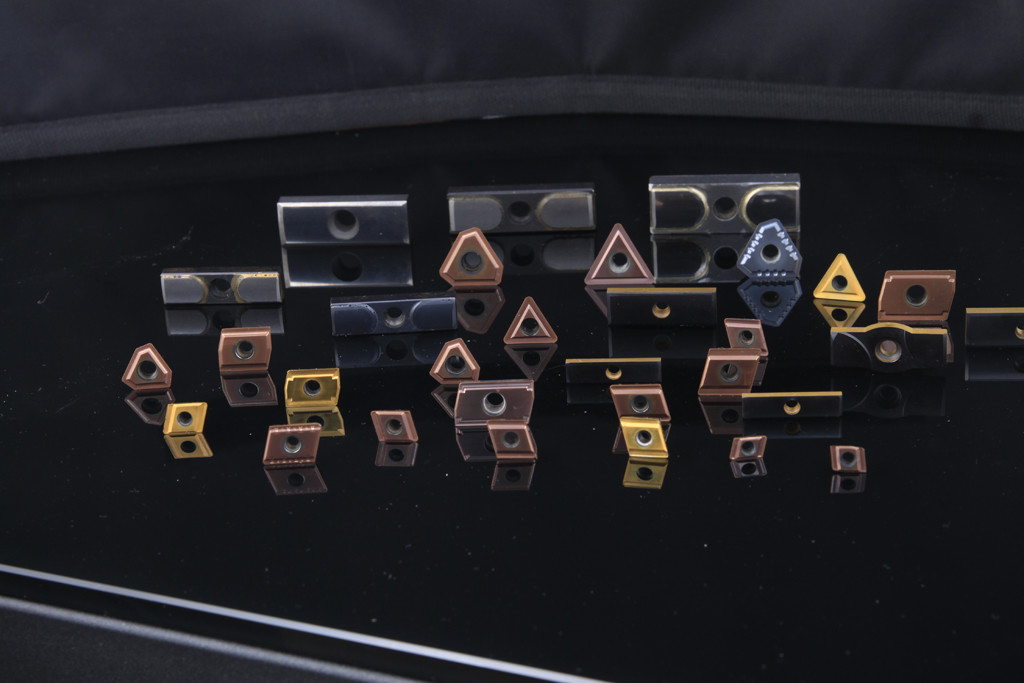

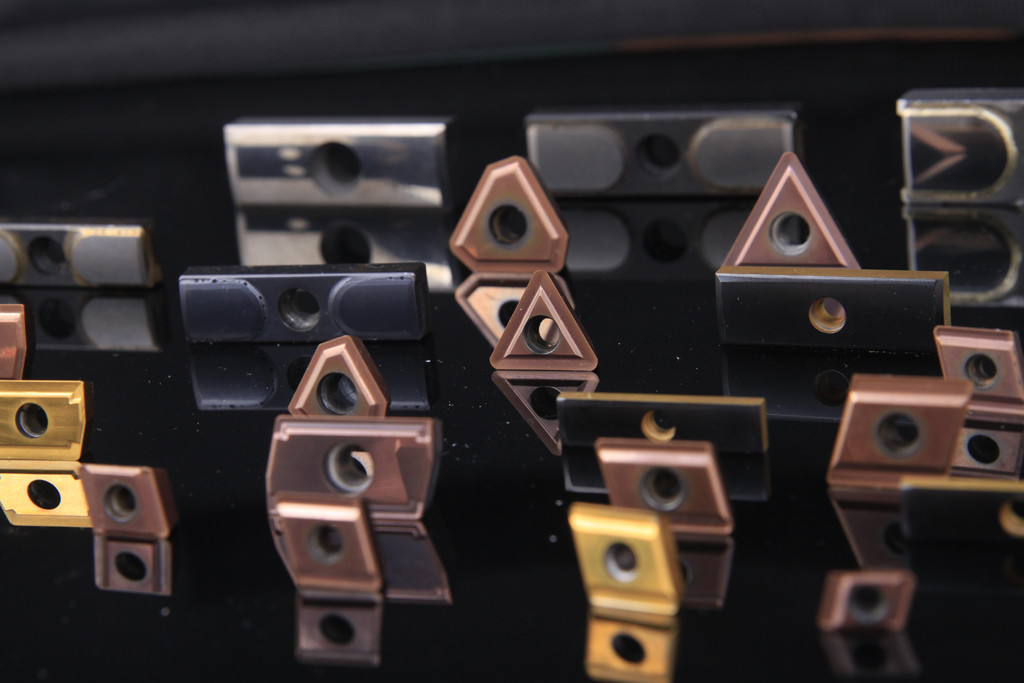

Deep Hole Drilling Tools Carbide Tool Inserts Reaming Drill

  • Deep Hole Drilling Tools Carbide Tool Inserts Reaming Drill
  • Deep Hole Drilling Tools Carbide Tool Inserts Reaming Drill
  • Deep Hole Drilling Tools Carbide Tool Inserts Reaming Drill
  • Deep Hole Drilling Tools Carbide Tool Inserts Reaming Drill
  • Deep Hole Drilling Tools Carbide Tool Inserts Reaming Drill
Place of Origin China
Brand Name CAEC
Certification ISO9001, ISO14001, OHSAS18001
Minimum Order Quantity One piece
Price USD 1 for one piece
Packaging Details Standard package for export
Delivery Time 7-10 days
Supply Ability 50000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Deep Hole Drilling Tools

,

Reaming Drill Carbide Tool Inserts

,

Deep Hole Carbide Tool Inserts
Leave a Message
Product Description

Deep Hole Drilling Tools

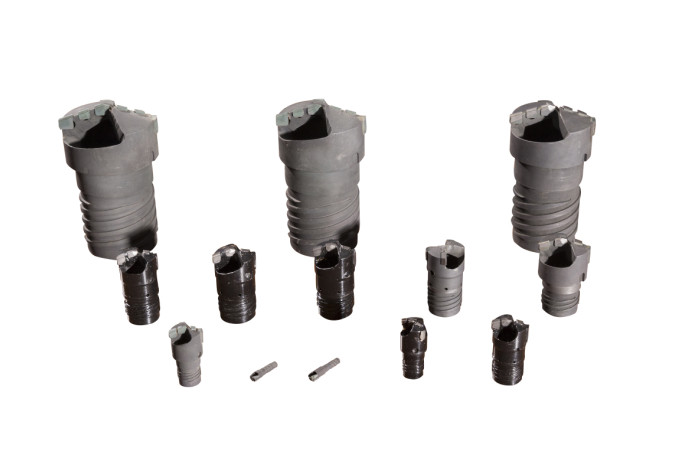

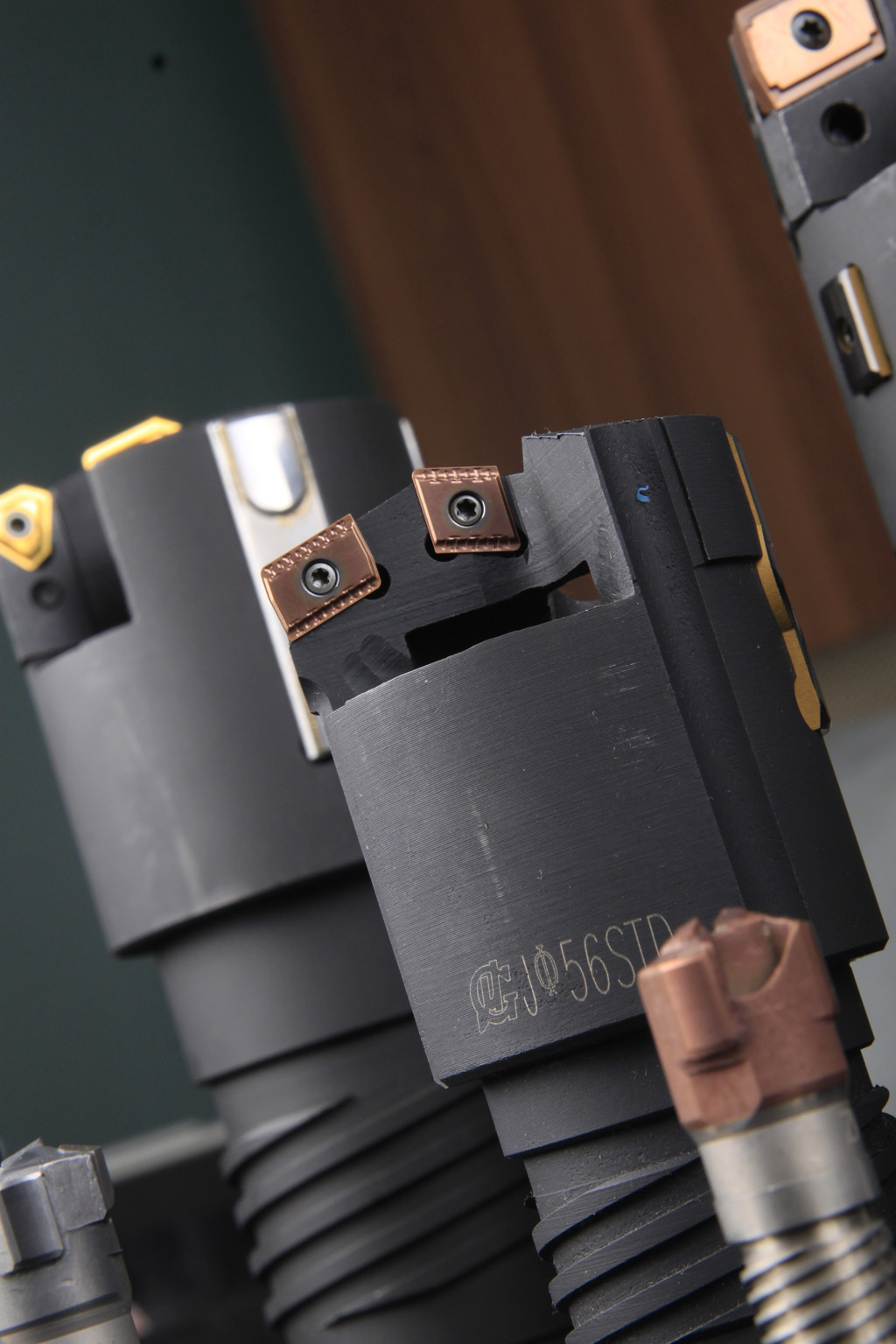

Deep Hole Drilling Tool (Deep Hole Drill)

Product Description:

CTRI can provide B type, P-type clamped /welded deep hole drilling, reaming drill, complete set of drill pipe, and other non-standard deep hole machining tools. We provide more individualized deep-hole drilling scheme and technical support in deep hole machining application. Besides, CNC holders are available to meet client’s daily needs.



Tube sheet drilling

Tube sheet is widely used in chemical container, pressure vessel, power generation equipment, boiler, condenser, central air conditioning, evaporator, seawater desalination and other industries with main features of multiple holes, small apertures, dense holes, high accuracy and surface finish requirements in the sheet. BTA drilling tools are more suitable for tube sheet drilling considering production efficiency and holes quality. It is also a trend for selecting drill bits of tube sheet. Both machines and tube sheet quality will significantly influence equipment assembly and performance.

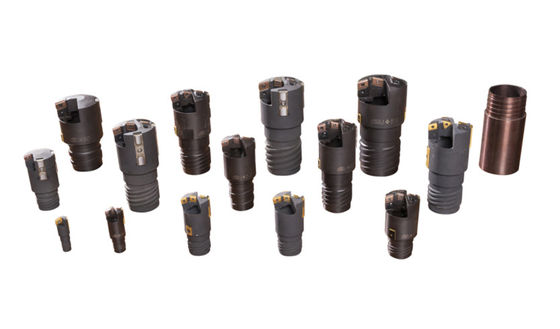

CAEC introduces two types of BTA deep hole drilling Type 5 and Type 6 based on different processing.

Type 6 is a special deep hole drilling for tube sheet, applicable for advanced tube sheet deep hole processing.

Type 5 is for less advanced tube sheet deep hole drilling.



Item Diameter Basic dimensions
L d3 d5 l1
GB6-Dxx.xx-SK Φ15.60-Φ16.20 43 10.8 12.6 20
GB6-Dxx.xx-SK Φ16.21-Φ16.70 43 10.8 12.6 20
GB6-Dxx.xx-SK Φ16.71-Φ17.20 43 11.8 13.6 20
GB6-Dxx.xx-SK Φ17.21-Φ17.70 43 11.8 13.6 20
GB6-Dxx.xx-SK Φ17.71-Φ18.40 47 12.5 14.5 21.5
GB6-Dxx.xx-SK Φ18.41-Φ18.90 47 12.5 14.5 21.5
GB6-Dxx.xx-SK Φ18.91-Φ19.20 47 13.5 15.5 21.5
GB6-Dxx.xx-SK Φ19.21-Φ20.00 47 13.5 15.5 21.5



Item Diameter Basic dimensions
L d3 d5 l1
GB5-Dxx.xx-DK Φ15.60-Φ16.20 43 10.8 12.6 20
GB5-Dxx.xx-DK Φ16.21-Φ16.70 43 10.8 12.6 20
GB5-Dxx.xx-DK Φ16.71-Φ17.20 43 11.8 13.6 20
GB5-Dxx.xx-DK Φ17.21-Φ17.70 43 11.8 13.6 20
GB5-Dxx.xx-DK Φ17.71-Φ18.40 47 12.5 14.5 21.5
GB5-Dxx.xx-DK Φ18.41-Φ18.90 47 12.5 14.5 21.5
GB5-Dxx.xx-DK Φ18.91-Φ19.20 47 13.5 15.5 21.5
GB5-Dxx.xx-DK Φ19.21-Φ20.00 47 13.5 15.5 21.5
