GY83 GY87 GY03 Tungsten Carbide Insert For Hard To Machine Materials Machining

  • GY83 GY87 GY03 Tungsten Carbide Insert For Hard To Machine Materials Machining
  • GY83 GY87 GY03 Tungsten Carbide Insert For Hard To Machine Materials Machining
  • GY83 GY87 GY03 Tungsten Carbide Insert For Hard To Machine Materials Machining
  • GY83 GY87 GY03 Tungsten Carbide Insert For Hard To Machine Materials Machining
Place of Origin China
Brand Name CAEC
Certification ISO9001, ISO14001, OHSAS18001
Minimum Order Quantity One piece
Price USD 1 for one piece
Packaging Details Standard package for export
Delivery Time 7-10 days
Supply Ability 50000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

GY03 Tungsten Carbide Insert

,

GY87 Tungsten Carbide Insert

,

GY83 Tungsten Carbide Insert
Leave a Message
Product Description

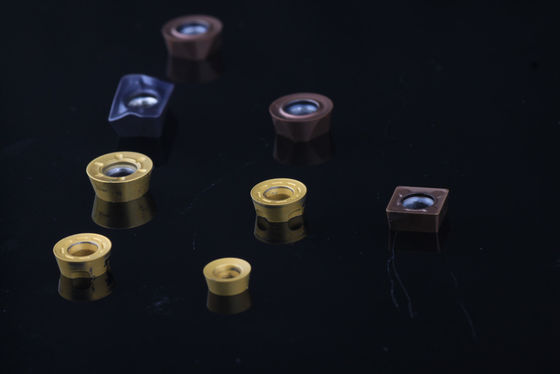

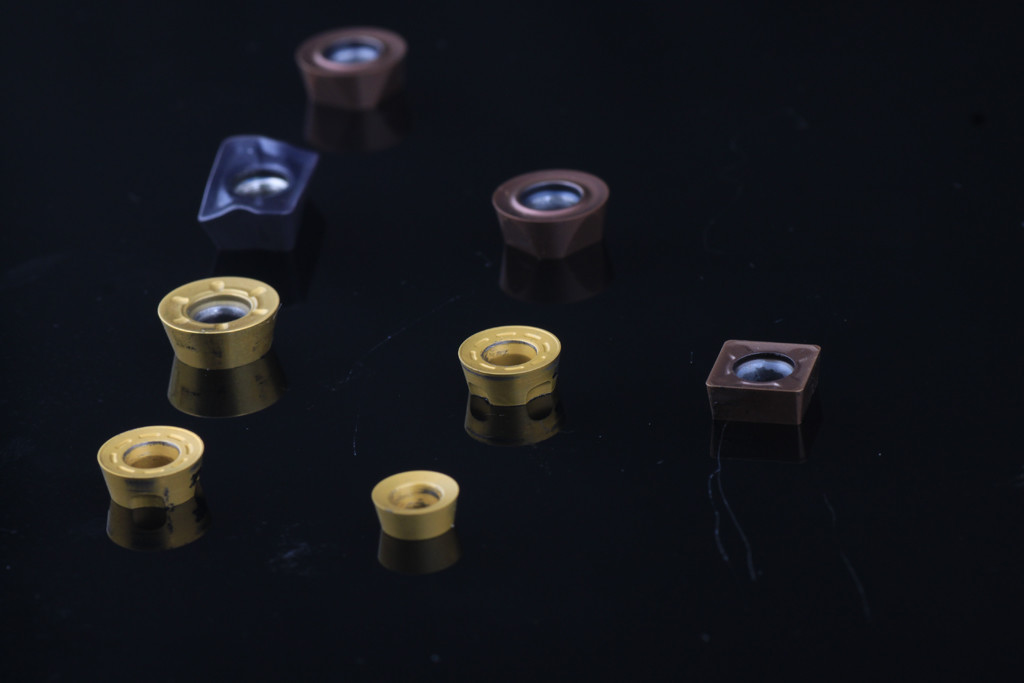

Inserts for Hard-to-machine Materials Machining



CAEC has developed special grade GY83,GY87,GY03, and GY08 for turning and milling by adding rare earth (RE) and applying special sintering processing. Products demonstrate excellent toughness and wear resistance after PVD and CVD composite coating, mainly applied for high-temperature alloy, titanium alloy and stainless steel milling, widely used in milling and turning of steam turbine, blade of aircraft engine, casing and other hard- to -machine materials. The coating has high anti crater wear resistance and flank wear performance in dry milling of stainless steel.



Composite PVD

Recommended Cutting Parameter
Cutting Material Stainless Steel Ni-based alloy titanium alloy
Cutting Rough Machining Finish Machining
Cutting Speed(m/min) 100-200 160-300 40-120 50-75
Feed (m/min) 0.6-1.2 0.6-1.0 0.6-0.8 0.6-0.8
Cutting Depth(mm) 0.5-2.5 0.5-2.5 0.5-1.5 0.5-1.5
Grade GY8768 GY8785 GY8368 GY8785 GY8785
Coolant Dry wet dry/wet dry/wet dry/wet



● Recommended Grade ○ Optional Grade


Order No. Dimension (mm) Grade
d s d1 GY83 GY87
RCKT10T3MO 10 3.97 4.4 ● ○
RCKT10T3MOT 10 3.97 4.2 ● ○
RCKT10T3MOT-3.5 10 3.97 3.9 ● ○








Order No. Dimension (mm) Grade
d s d1 GY83 GY87
RCKT1204MO 12 4.76 4.05 ○ ●
