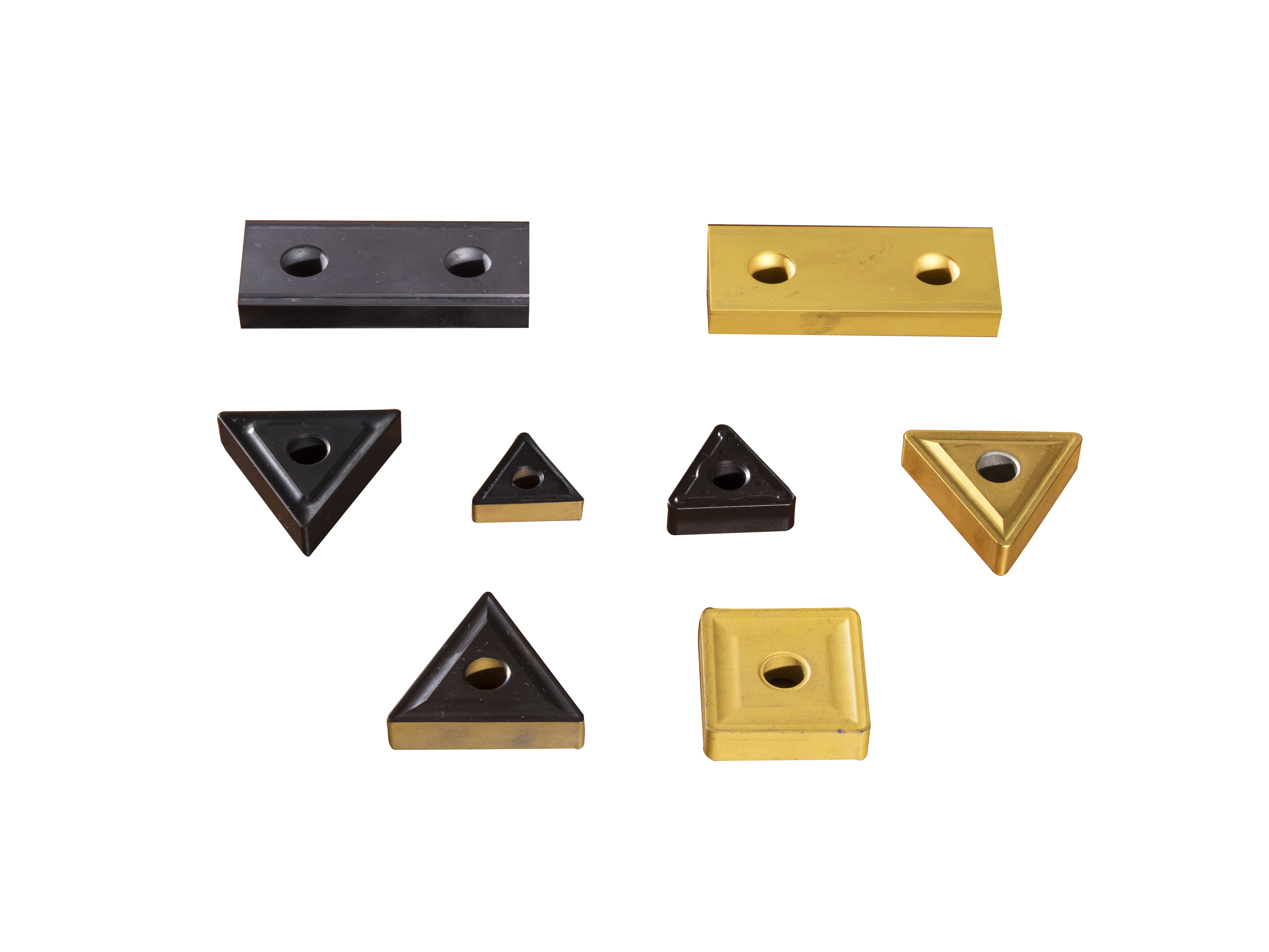

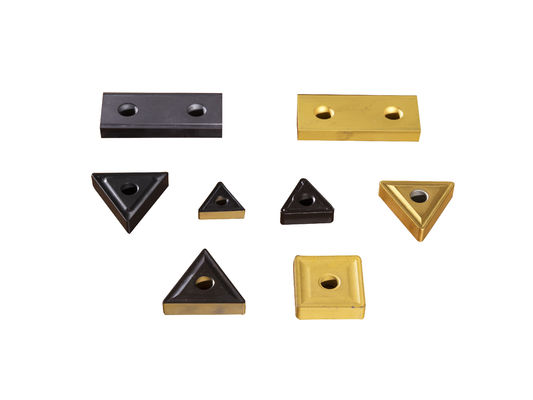

GY75 Carbide Tool Inserts Carbide Cutter Inserts For Welded Tube

  • GY75 Carbide Tool Inserts Carbide Cutter Inserts For Welded Tube
  • GY75 Carbide Tool Inserts Carbide Cutter Inserts For Welded Tube
  • GY75 Carbide Tool Inserts Carbide Cutter Inserts For Welded Tube
  • GY75 Carbide Tool Inserts Carbide Cutter Inserts For Welded Tube
  • GY75 Carbide Tool Inserts Carbide Cutter Inserts For Welded Tube
Place of Origin China
Brand Name CAEC
Certification ISO9001, ISO14001, OHSAS18001
Minimum Order Quantity One piece
Price USD 1 for one piece
Packaging Details Standard package for export
Delivery Time 7-10 days
Supply Ability 50000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

GY75 Carbide Tool Inserts

,

Carbide Cutter Inserts

,

Welded Tube Carbide Tool Inserts
Leave a Message
Product Description

Cutting insert for welded tube

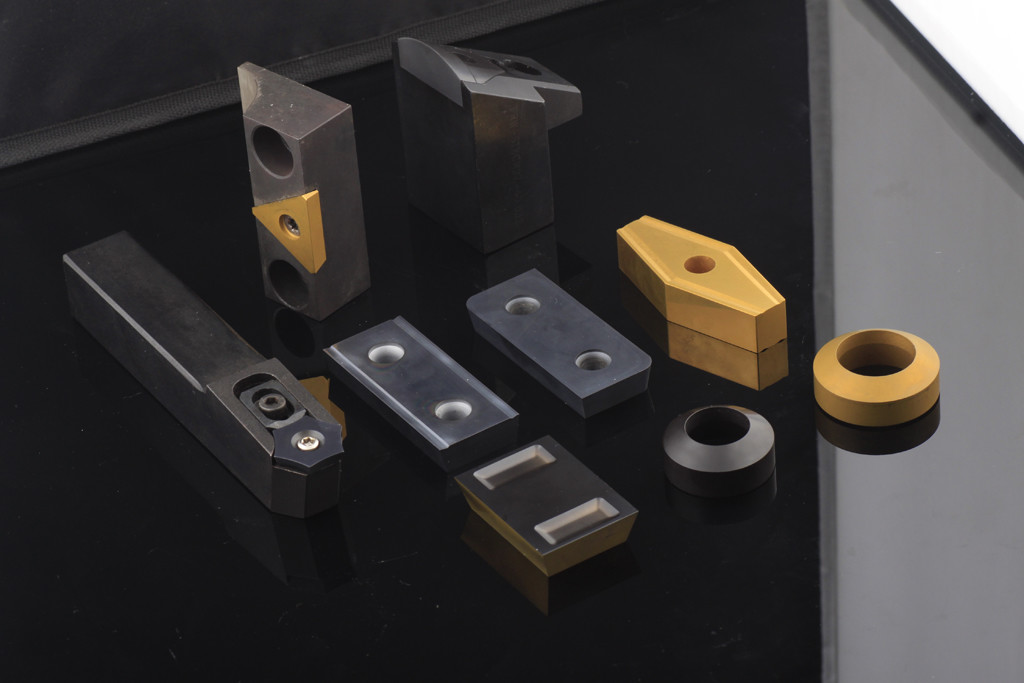

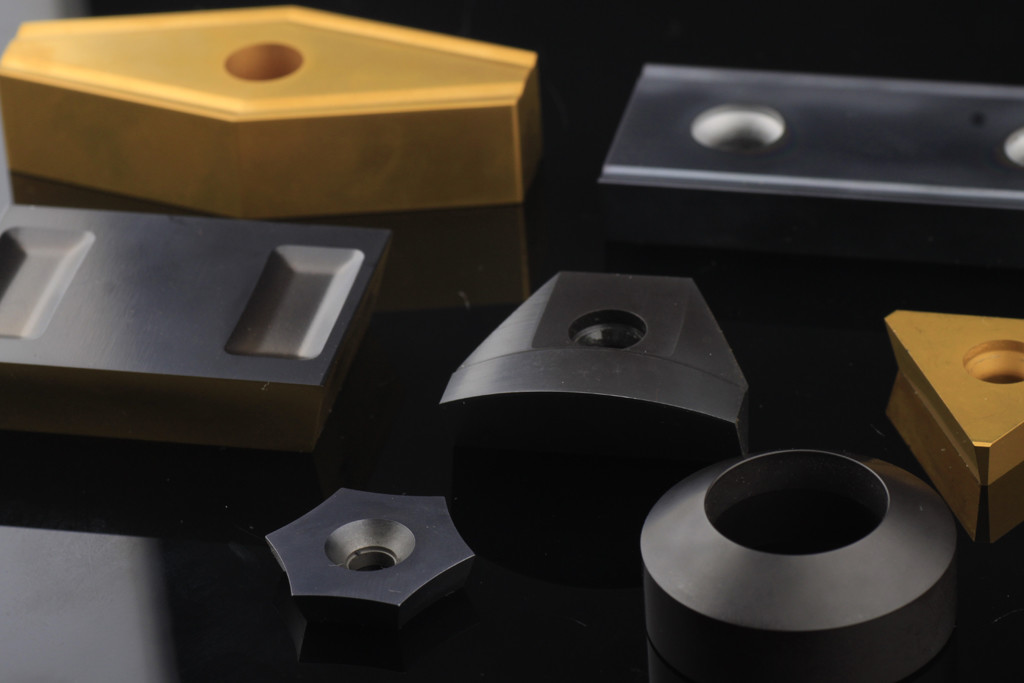

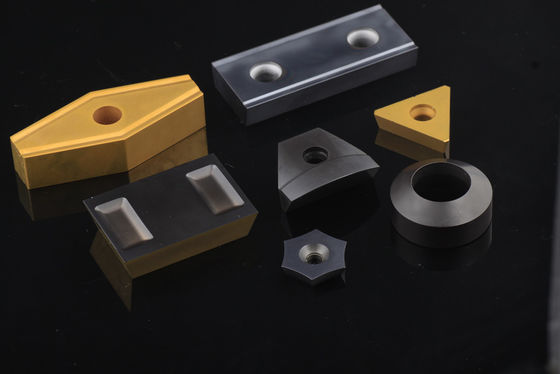

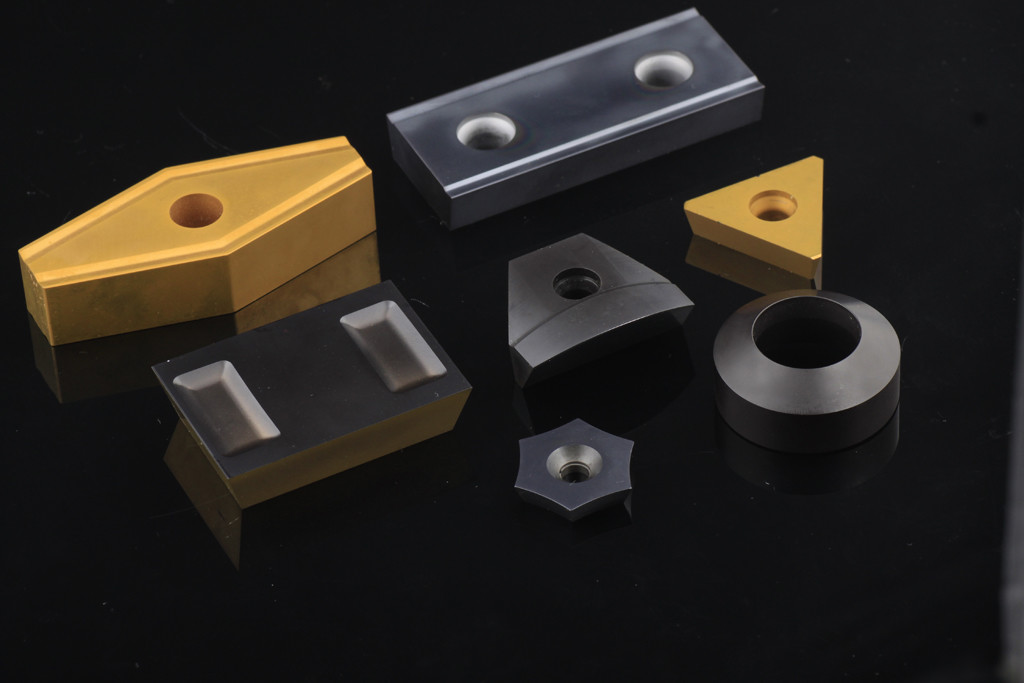

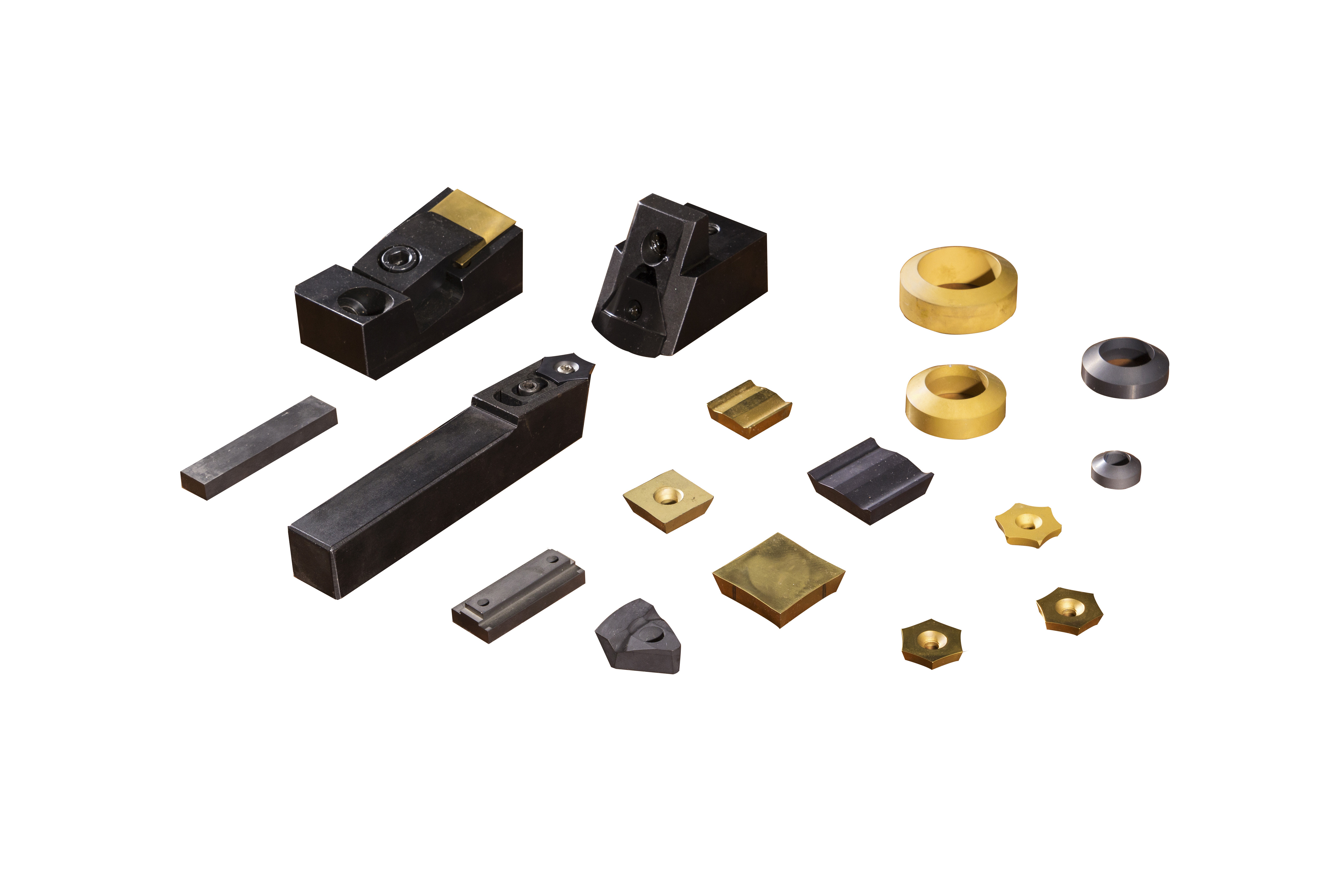

Various tube machining tools developed by CAEC such as carbide edge milling inserts, tube scarfing inserts, radius inserts and grooving inserts demonstrate great impact resistance and better life performance etc. Those are widely used in welded tube edge milling, scarfing and chamfer.



GY75 is a specialized carbide grade for scarfing inserts with great tenacity. Combined with CVD coating, inserts show better red-hardness. It is extensively used for scarfing tools.

GY03 shows high wear resistance and tenacity and can be used for heat-resistant steel, stainless steel and other difficult-to-machines materials. Also, it applies in semi-finish and finish machining of general purpose steel, cast iron and non-ferrous metals etc. It is especially suitable for tube end machining.

GY87 demonstrates high hardness and intensity with excellent comprehensive performance. It is specially developed for hard to machine materials such as stainless steel, heat resistant steel etc. It can be applied with CVD/PVD coating.




Type Dimensions (mm) Brand
  d h s d1 GY5357 GY4581
TPEW3307 19.05 25 7 6.6 ○ ●




Type Dimensions (mm) Brand
  d s d1 α GY7552 GY4652
107JD1-2 10 5.5 6 43° ○ ●
107JD1-2.1 10 4.5 6 43° ○ ●
107JD1-2.2 10 4.5 5 43° ○ ●
107JD1-3 13 6 8 38° ○ ●
107JD1-3.2 13 7 7 38° ○ ●
107JD1-3Y 13 6 8 42° ○ ●
107JD1-4.1 22 10 12 36° ○ ●
107JD1-4.2 22 10 15 36° ○ ●
107JD1-5 30 12 20 36° ○ ●
107JD1-6 35 12 22 36° ○ ●




Type Dimensions (mm) Brand
  d s d1 d2 d3 α r GY4652 GY7552
107JD3-6 20.7 4.76 5.3 10.5 25 15° 47.63 ● ○
107JD3-5 20.7 4.76 5.3 10.5 25 15° 38.89 ● ○
107JD3-4 20.7 4.76 5.3 10.5 25 15° 27.51 ● ○
107JD3-3 20.7 4.76 5.3 10.5 25 15° 21.79 ● ○
107JD3-2 20.7 4.76 5.3 10.5 25 15° 16.71 ● ○
107JD3-1 20.7 4.76 5.3 10.5 25 15° 13.54 ● ○
