Radial Clearance Bearing Measuring Instrument For X092J X092JC

  • Radial Clearance Bearing Measuring Instrument For X092J X092JC
  • Radial Clearance Bearing Measuring Instrument For X092J X092JC
  • Radial Clearance Bearing Measuring Instrument For X092J X092JC
  • Radial Clearance Bearing Measuring Instrument For X092J X092JC
  • Radial Clearance Bearing Measuring Instrument For X092J X092JC
Place of Origin Henan, China
Brand Name CAEC
Model Number X092J (C)
Minimum Order Quantity One set
Price USD1-200 for one set
Packaging Details Standard package for export
Delivery Time 1-7 days
Supply Ability 100 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Radial Clearance Bearing Measuring Instrument

,

Radial Clearance bearing measurement tool

,

X092J Bearing Measuring Instrument
Leave a Message
Product Description

Bearing radial clearance measuring instrument



►Product description of Bearing radial clearance measuring instrument:

We won the second prize for Mechanical industry science and technology for the bearing radial clearance measuring instrument.

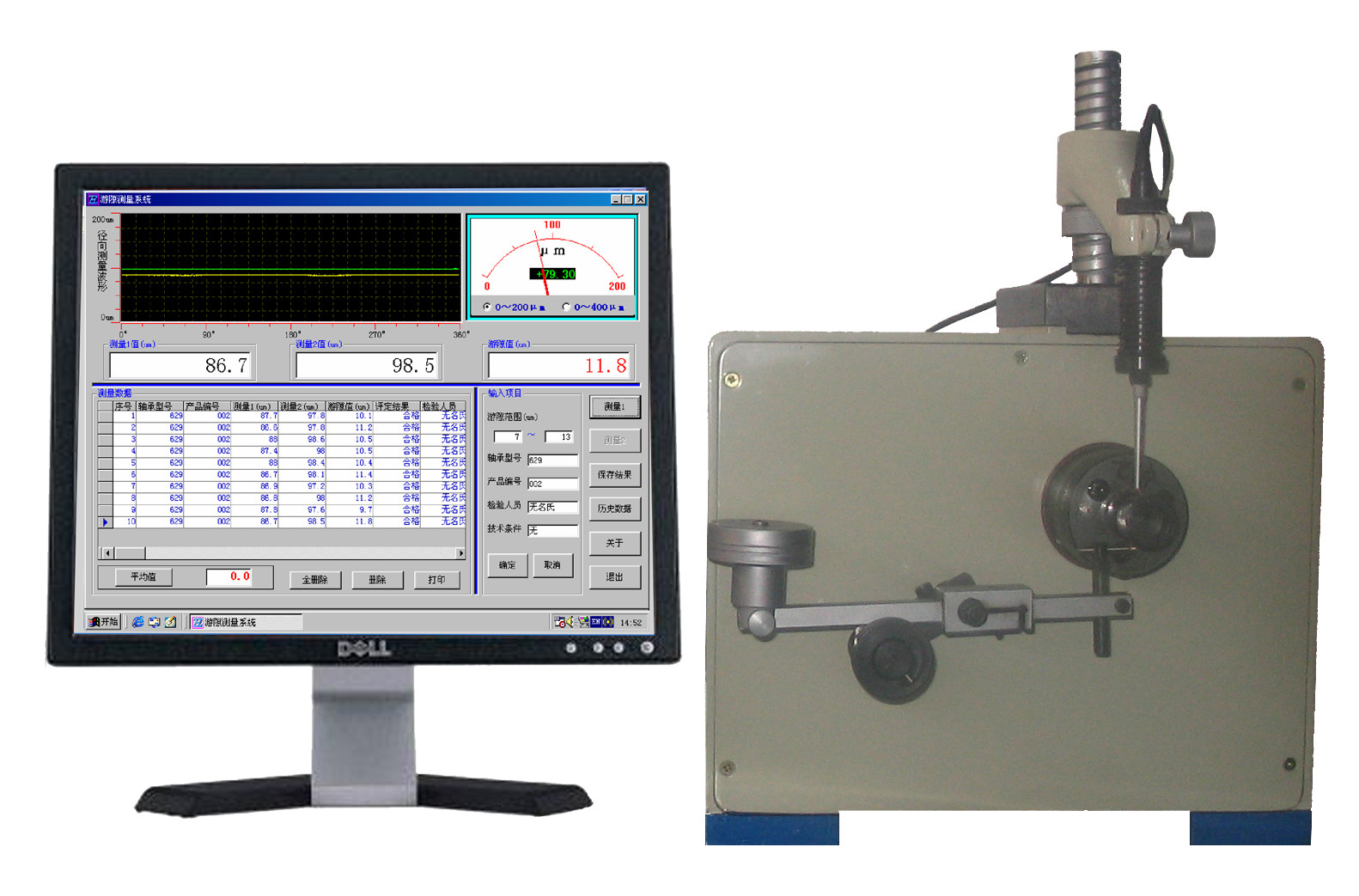

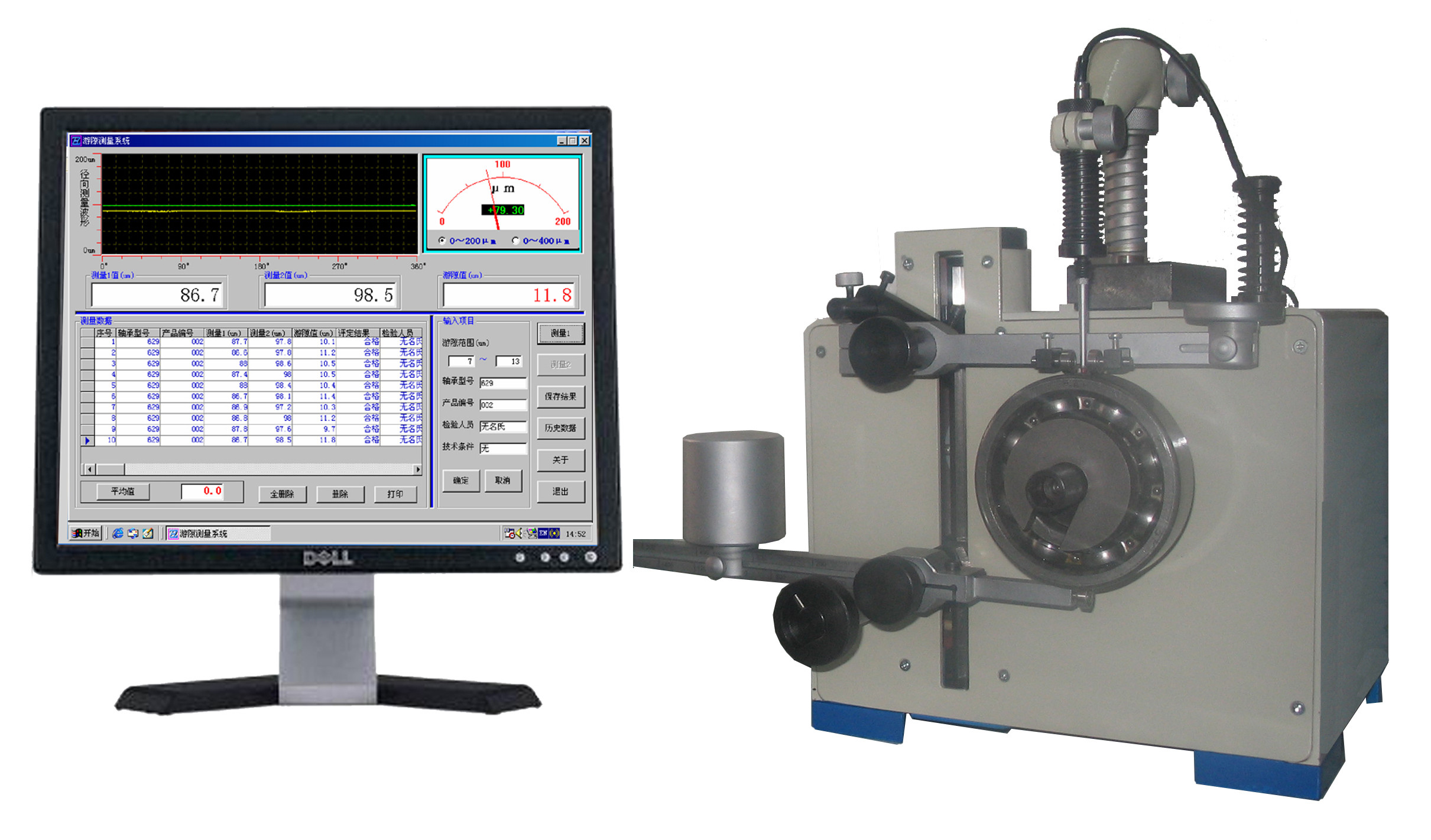

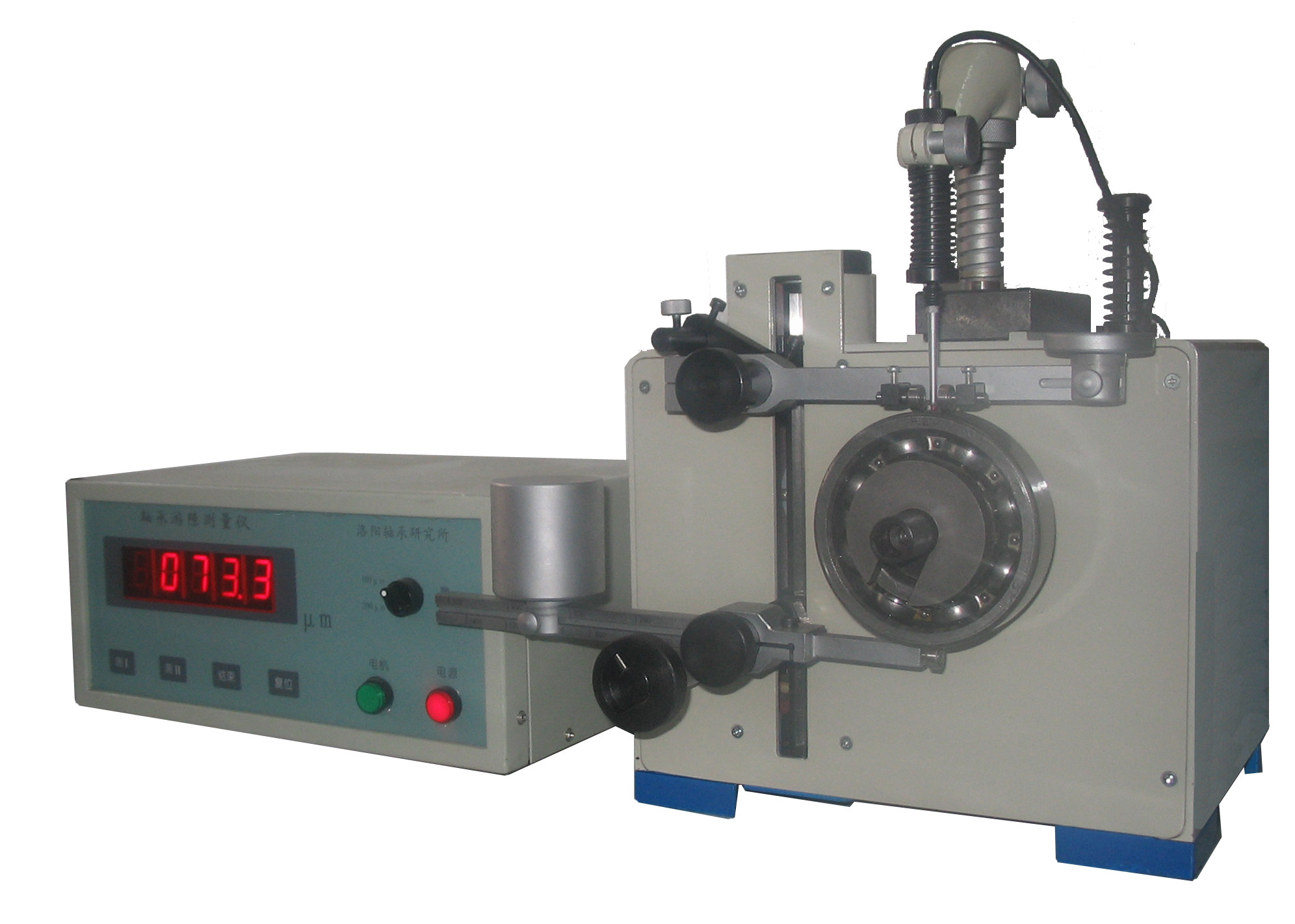

The bearing measuring instrument has compact and reasonable structure, high spindle rotation precision, stable and reliable measurement value. With high-precision inductive sensor-single-chip computer or computer system, the bearing measurement of radial clearance can achieve automatic data collection, automatic statistical calculation, digital display and high measurement accuracy. X09C series measurement interface displays measurement curves, which can set thresholds, overvalue alarm, store data, print history data and measure real-time data.



►Features of bearing radial clearance measuring instrument:

● The measurement method is in accordance with ISO international standards with no load dynamic measurement.
● The spindle error is separated by sum and difference operation with zero sensor.
● Dynamic measurement, in line with actual working conditions, eliminating ball position error, high repeatability.
● High-precision spindle and high-precision sensor ensure high-precision characteristics during measurement and reduce subjective errors.
● Sampling more than 100 points a week, the evaluation is sufficient, the measured value is reliable.
● With no load measurement, the measured value is the real clearance, no need to minus the deformation.



►Specification of bearing radial clearance measuring instrument:

Instrument type Model Measuring bearing range Span Resolution Indication repeatability Outer dimension
    Inner diameter Outer diameter Width
Radial reference clearance instrument X092J (C) Φ3-Φ15 ＜Φ45 2.5-17

0-100μm/

0-200μm

 0.1μm/0.2μm ±1μm 650*480*460
  X093JB (C) Φ12-Φ50 ＜Φ130 4-35

0-100μm/

0-200μm

 0.1μm/0.2μm ±1μm 700*500*500
  X094J (C) Φ40-Φ100 Φ60-250 ＞17

0-200μm/

0-400μm

   ±1.5μm 750*550*550
