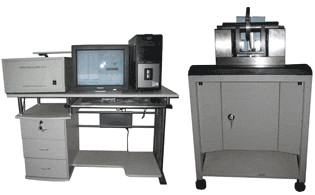

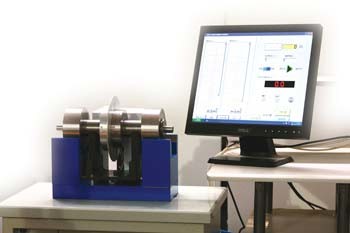

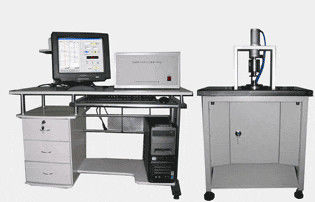

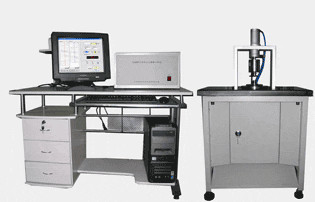

M992 Friction Torque Bearing Measuring Instrument Bearing Measurement Tool

  • M992 Friction Torque Bearing Measuring Instrument Bearing Measurement Tool
  • M992 Friction Torque Bearing Measuring Instrument Bearing Measurement Tool
  • M992 Friction Torque Bearing Measuring Instrument Bearing Measurement Tool
  • M992 Friction Torque Bearing Measuring Instrument Bearing Measurement Tool
Place of Origin Henan, China
Brand Name CAEC
Model Number M992
Minimum Order Quantity One set
Price USD1-200 for one set
Packaging Details Standard package for export
Delivery Time 1-7 days
Supply Ability 100 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Friction Torque Bearing Measuring Instrument

,

M992 Bearing Measuring Instrument

,

M992 Bearing Measurement Tool
Leave a Message
Product Description

Bearing friction torque measuring instrument



►Product description of Bearing friction torque measuring instrument:

The friction torque is an important factor affecting the noise, vibration and life of the bearing and also a main index to measure the dynamic performance of the bearing.

We developed series of bearing friction torque measuring instruments according to relevant standards and user requirements.

The bearing friction torque measuring instruments are suitable for measuring dynamic friction torque (maximum friction torque, average friction torque and torque fluctuation) of various bearings, such as deep groove ball bearings, angular contact bearings, single row tapered roller bearings, etc.



►Application of Bearing friction torque measuring instrument:

It is suitable for testing the precision bearing rotation flexibility in the measuring room of bearing manufacturing workshop and quality identification of the bearing submitted for inspection by the testing institution.



►Features of Bearing friction torque measuring instrument:

Axial loading, synchronous drive, reduce of basic friction torque with air bearing, and dynamic measurement of bearing friction torque variation with integral torque sensor.

The measured curve of friction torque can provide reliable basis for users to analyze the bearing quality and further complete the optimization design of bearing and improve the processing technology. The bearing friction torque measuring instrument has obtained national patents and won the third prize for Mechanical industry science and technology progress award.



►Specification of Bearing friction torque measuring instrument:

Model Measuring bearing range (mm) Measuring range of moment Axial load Speed Indication error Air supply
M695

Angular contact ball bearing in pairs

Inner diameter: Φ10-Φ50

 0-50N*mm 100-500N 0.5/2μm ±1% 0.4-0.5MPa
M992 Inner diameter: Φ2-Φ8 0-100N*μm 1-4N 2rpm ±2.5% 0.3-0.5MPa
M9908B Inner diameter: Φ8-Φ30 0-5N*mm/ 0-50N*mm 15N 5rpm ±1% 0.3-0.5MPa
M8930 Outer diameter: Φ30-Φ100 0-100N*mm 100-500N 2-50r/min ±1% 0.3-0.5MPa
