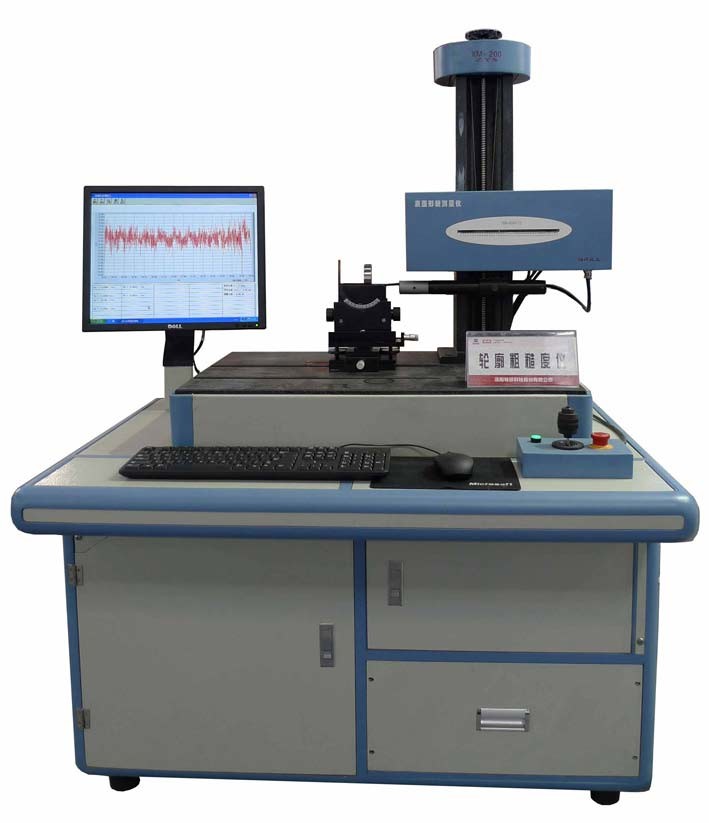

XM200 Surface Profile Measuring Instrument For Mass Of A Ball Bearing

  • XM200 Surface Profile Measuring Instrument For Mass Of A Ball Bearing
Place of Origin Henan, China
Brand Name CAEC
Model Number XM200
Minimum Order Quantity One set
Price USD1-200 for one set
Packaging Details Standard package for export
Delivery Time 1-7 days
Supply Ability 100 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

XM200 Surface Profile Measuring Instrument

,

Bearing Surface Profile Measuring Instrument

,

Measuring Instrument For Mass Of A Ball Bearing
Leave a Message
Product Description

XM200 surface profile measuring instrument



►Product description of XM200 surface profile measuring instrument:

Measurement parameters of surface profile measuring instrument: contour, waviness, and roughness and other microscopic topographic parameters specified in GB3505; contour radius, double groove, chamfer, convexity, lock height, spherical base and other dimension parameters.
Measurement objects of surface profiler: ring groove, roller busbar and spherical base, steel ball radius and roughness.



►Application of XM200 surface profile measuring instrument: test equipment status and make maintenance in the grinding workshop inspection room; Measurement of various shapes and sizes in the measuring room.



►Features of XM200 surface profile measuring instrument:



1. Independent property rights: core technology for sensors, guide rails, measurement and control circuits, and analysis software.
2. Wide range:
X direction movement range 200mm, resolution 0.5 μm;
Z direction movement range >400mm, with full positioning.
3. High precision: roughness 2%+4μm; Contour radius 0.02%-0.1%;
Straightness of guide rail: 0.3μm/50mm
Roughness tip: 60°cone with a radius of 2 μm;
4. Full parameters: all the microstructure parameters specified in GB3505; various contour size parameters required in the bearing industry.

5. Automatic selection: Steel ball, groove, double groove, roller and other shapes can be automatically selected after inputting nominal size and rated length, which can improve measurement efficiency and consistencyof multi-piece measurement.



►Honor of XM200 surface profile measuring instrument:

In December 2008, we won the second prize for Mechanical industry science and technology progress award and had three national invention patents and appearance patents.



►Specification of XM200 surface profile measuring instrument:

Item Description Item Description
X-direction movement   Z-direction movement
Guide rail type High precision slide guide Guide rail type High precision slide guide
Movement length

XM200 type: 200mm

XM100 type:100mm

 Movement length

XM200 type: 400mm

XM100 type: 200mm
Linear accuracy 0.5μm/100mm Measurement mode Encoder for XM200 type
Measurement mode Grating counting
Contour shape measurement   Components
Sensor type

High precision differential

inductance type

Three-dimensional adjusting

table

 XOY, XOZ, Y directional adjustment; Cross V groove on the top pf worktable
Measuring range ±0.5mm, ±4mm
Resolution 0.017μm, 0.13μm Rotary table XOZ oscillation angle ±35°
Relative error 0.005FS High precision chuck (optional) Cylindrical rod end spherical measurement or roughness measurement
Radius measurement error 0.02-0.1%
Roughness measurement

Y-direction movement

platform (optional)

 For three-dimensional profile measurement
Measuring range Ra0.01-10μm Guide rail type Rolling guide/Linear motor
Resolution 1/65536 Movement length 100mm
Roughness measurement error 2%±nm Linear accuracy 2μm/100mm
Measurable parameters The special parameters for bearings stipulated in GB3505, such as profile, waviness and roughness, curvature radius, groove central distance, lock height, convexity, logarithmic curve, ball base surface, groove position, etc.
Hardware configuration LCD, printer, roughness sample, standard ball
Software platform function According to the situation of the workpiece under test, it can automatically select, automatically correct, and automatically analyze. It can manually or automatically do cycling measurement, automatically touch the workpiece, protect the sensor, manually or automatically convert the range, directly display the obtained shape and various parameters, and then print out. We can increase or decrease the analysis and processing software according to the user's requirements.
Outer dimension
