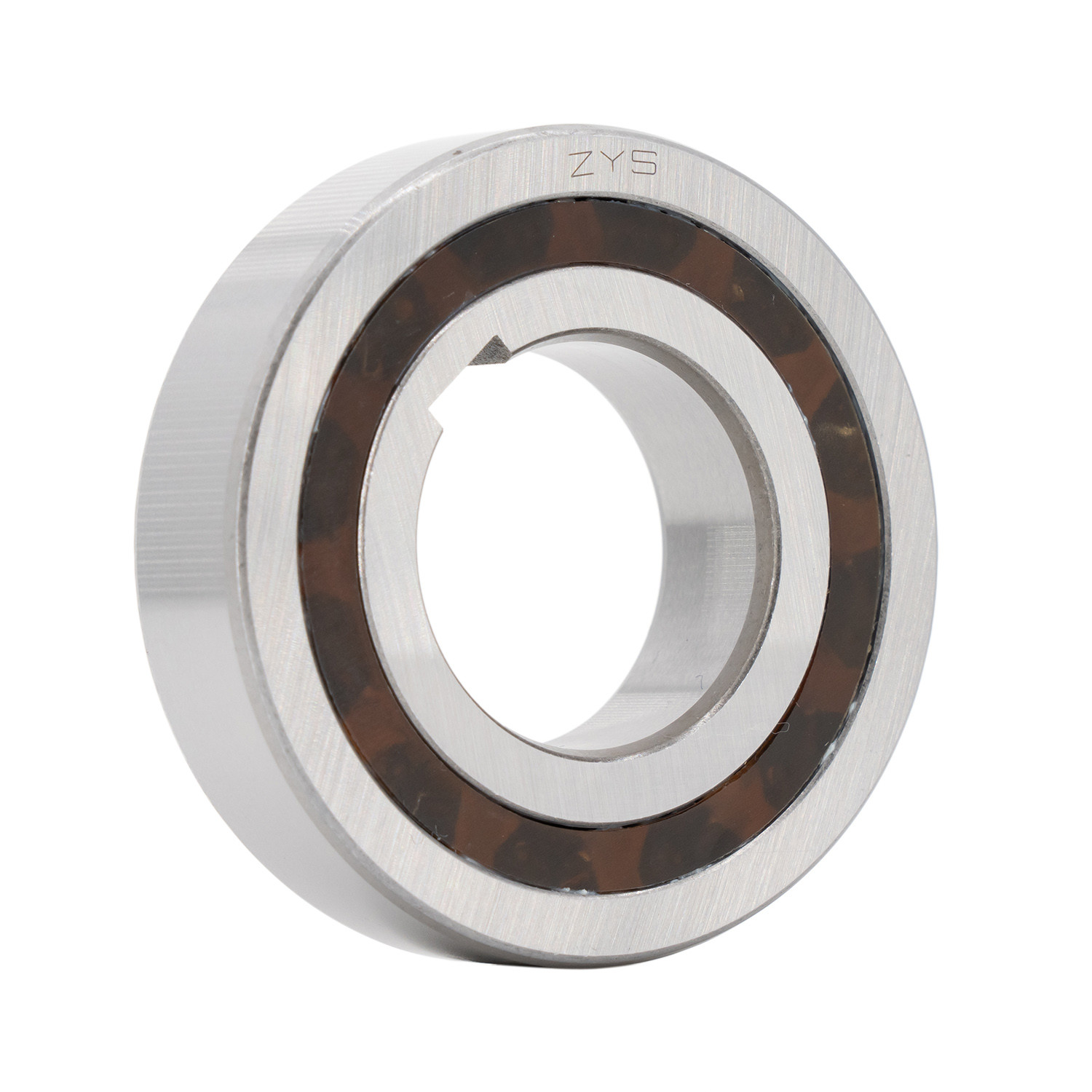

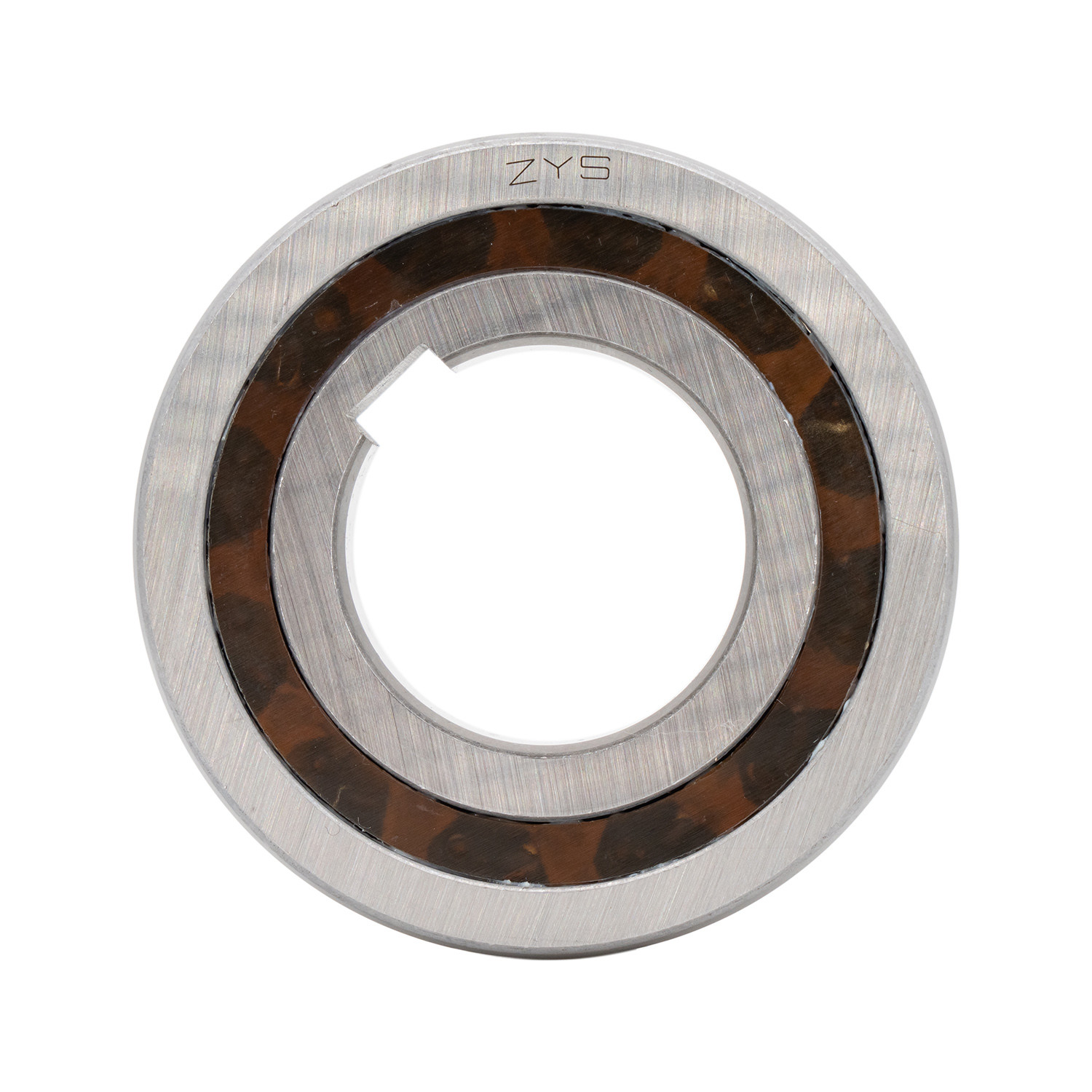

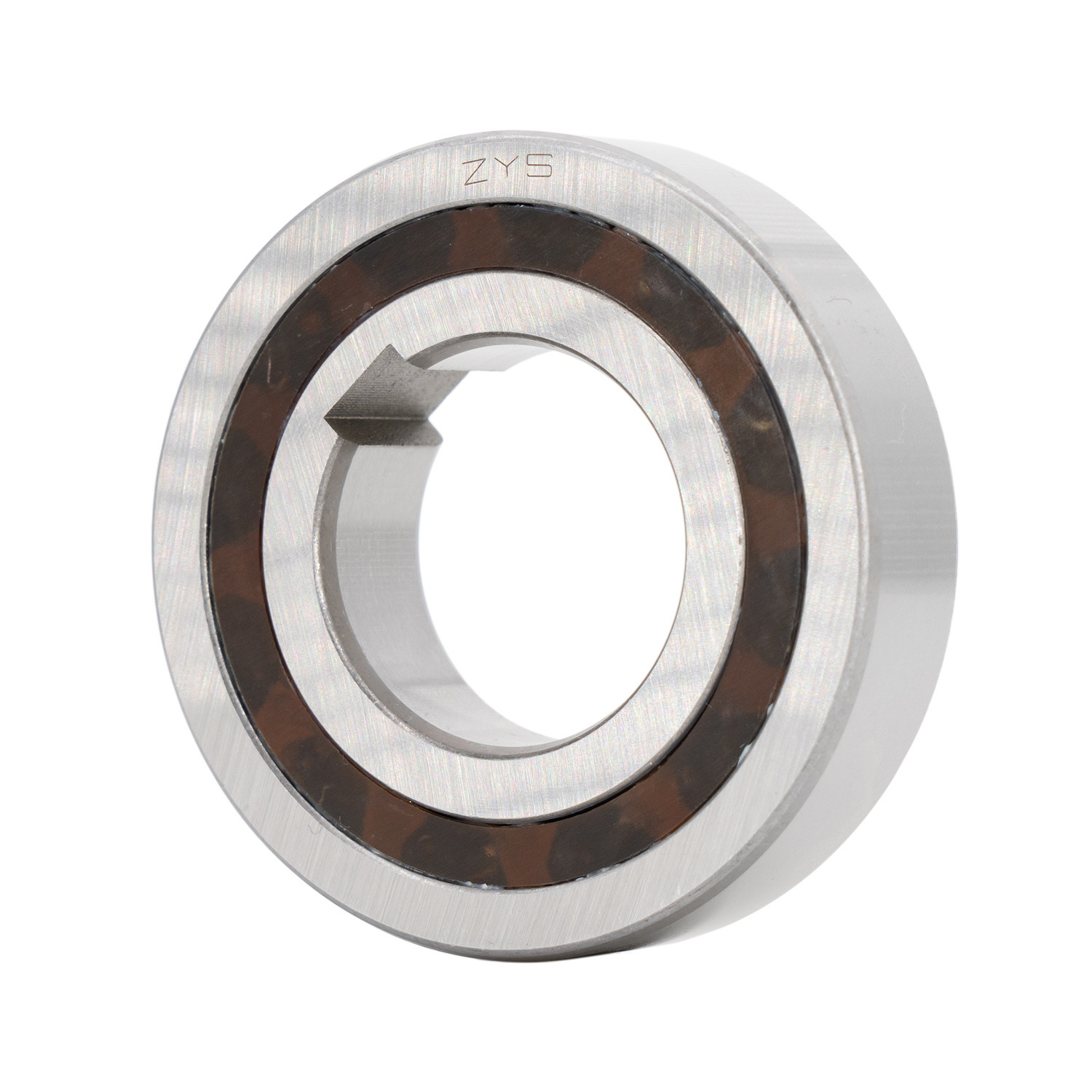

CSK35PP Overrunning Clutch Bearing P5 P6 Wheel Bearing One Way Sprag
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel NO. | Csk35PP | Ball Bearings | One-Way Sprag Overrunning Clutch Bearing |
---|---|---|---|
Accuracy Grade | P2/P5/P6/P4/P0 | Sealing Type | Sealed |
Rolling Body | Ball Bearings | Clearance | C0, C2, C3 |
Spherical | Non-Aligning Bearings | Application | Heavy Duty/Load Trucks Clutch, Washing Machine |
Advantages | High Speed, High Precision,High Quality | Use | Speed Conversion, Reversal Preventing |
OEM | Acceptable | Delivery Period | Within 7 Days |
Transport Package | Cases And Pallets Or As Customer′s Requirment | Specification | Customized |
Trademark | ZYS, OEM, Neutral | Origin | Luoyang, Henan, China |
HS Code | 8482102000 | Supply Ability | 1000000 PCS/Year |
Material | Bearing Steel | ||
High Light | CSK35PP Overrunning Clutch Bearing,P6 Wheel Bearing One Way Sprag,Overrunning Clutch Bearing P5 |
Wheel Bearing One-Way Sprag Overrunning Clutch Bearing Csk35PP 35X72X17mm with Two Keyways
One Way Bearings are divided into open type and sealed type. The keyway can be machined on the inner ring and outer ring.
Freewheel clutch is mainly used in such applications as speed conversion, reversal preventing, intermittent movement and etc. Working principle is to use friction generated by wedge, spring and such compression elements to transmit torque.Features of one way clutch bearings:
Small size, transmitting high torque, smooth combining, high slip combining, working without noise, etc.
Technical parameters of one way clutch bearings:
Fitted outer raceway diameter: φ 30mm~φ 150mmFitted inner raceway diameter: φ 10mm~φ 120mm
Minimum mounting width: 15mm~30mm
Rated torque: 60N. M~4000N. M
Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||||
dynamic | static | |||||||||||
d | TKN1) | nmax | D | L | b | t | C | C0 | TR | |||
[mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
CSK..P | 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | ||
15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |||
17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |||
20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |||
25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |||
30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |||
35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |||
40 | - | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |||
CSK..PP | 15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 7.4 | 3.42 | 0.06 | 0.9 |
17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 7.9 | 3.8 | 0.07 | 1.1 | |
20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 9.4 | 4.46 | 0.11 | 1.3 | |
25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 12.6 | 7.28 | 0.3 | 5.8 | |
40 | - | 325 | 3000 | 80 | 22 | 10 | 3 | 15.54 | 12.25 | 0.5 | 7 | |
CSK..P-2RS | 12 | - | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | ||
15 | - | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | |||
17 | - | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | |||
20 | - | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | |||
25 | - | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | |||
30 | - | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | |||
35 | - | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | |||
40 | - | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 |
CAEC Precision Bearing Quality Control and Assurance:
Austrian AICHELIN heat treatment equipment and long-life heat treatment process provide a strong guarantee for the continuous and reliable operation of bearings.
FAQ:
Q: Are you trading company or manufacturer?
A: CAEC is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.
Q: How do you control quality of bearing?
A: CAEC has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
Q: Is sample avaiable?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
