Non ISO BS2562 Ball Screw Bearing Roller Ball Bearing Metric

  • Non ISO BS2562 Ball Screw Bearing Roller Ball Bearing Metric
  • Non ISO BS2562 Ball Screw Bearing Roller Ball Bearing Metric
Place of Origin China
Brand Name ZYS
Certification ISO9001, CE, SGS, 16949
Model Number BS2562
Minimum Order Quantity One set
Price USD 1 for one set
Packaging Details Standard package for export
Delivery Time 10-15 days
Payment Terms L/C, T/T
Supply Ability 100000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Non ISO Ball Screw Bearing

,

BS2562 Ball Screw Bearing

,

BS2562 Roller Ball Bearing
Leave a Message
Product Description

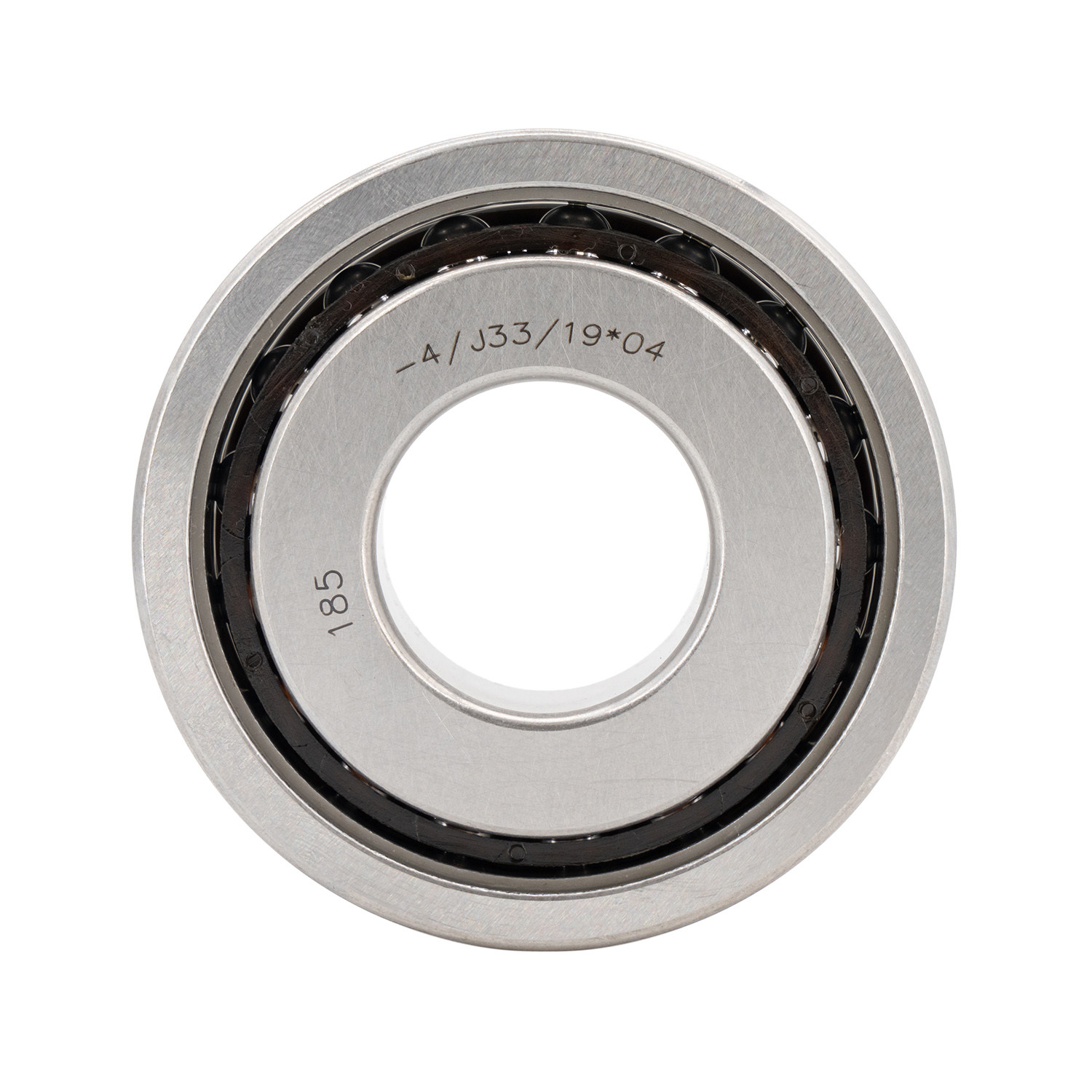

Non-ISO Metric ball screw bearing

Product Description

Ball screw bearings also have BS and BSS series; BS stands for non-standard metric series while BSS stands for Inch series.

Product Parameters
Bearing model Dimensions (mm) Rated load (KN) Limit speed (r/min) MAX axial load (KN) Preload (KN) Friction torque (N.mm) Weight (kg)
  d D B rsmin a Ca Coa Grease
BS1547 15 47 15 1.0 35 21.5 27 12000 11.5 2.6 50 0.13
BS1747 17 47 15 1.0 35 21.5 27 12000 11.5 2.6 50 0.14
BS2047 20 47 15 1.0 37 19.3 25 12000 10.6 2.3 50 0.13
BS2562 25 62 15 1.0 46 28.5 41.5 9000 18.0 3.3 85 0.24
BS3062 30 62 15 1.0 48 26 39 9000 17.0 2.9 85 0.23
BS3072 30 72 15 1.0 52 31 54 8000 22.0 3.4 115 0.35
BS3572 35 72 15 1.0 54 30 50 8000 21.2 3.3 115 0.30
BS4072 40 72 15 1.0 56 28 49 8000 21.2 2.9 115 0.26
BS4090 40 90 20 1.5 67 50 83 6300 35.5 5.6 225 0.65
BS4575 45 75 15 1.0 60 28.5 52 7500 22.4 3.1 130 0.26
BS45100 45 100 20 1.5 74 58.8 104 5600 45.0 6.9 300 0.81
BS50100 50 100 20 1.5 76 58.5 104 5600 45.0 7.0 330 0.75
BS5590 55 90 15 1.0 70 32.5 65.5 6300 28.0 3.6 190 0.38
BS55100 55 100 20 1.5 77 40.5 81.5 6000 33.5 4.6 250 0.75
BS55120 55 120 20 1.5 86 60 116 5000 50.0 6.8 360 1.18
BS60120 60 120 20 1.5 88 61 120 4800 53.0 7.0 380 1.11
BS75110 75 110 15 1.5 88 35.5 83 5000 33.5 4.6 250 0.75
BS100150 100 150 22.5 2.0 120 69.5 173 3800 71.0 7.5 600 1.37
INCH
BSS2047 20.0000 47 15.875 1.0 38 19.3 25 12000 10.6 2.3 50 0.13
BSS2362 23.838 62 15.875 1.0 45 28.5 41.5 9000 18.0 3.3 85 0.24
BSS3872 38.100 72 15.875 1.0 56 28 49 8000 21.2 2.9 115 0.26
BSS4476 44.475 76.2 15.875 1.0 60 28.5 52 7500 22.4 3.1 130 0.26
BSS5790 57.150 90 15.875 1.0 72 32.5 65.5 6300 28.0 3.6 190 0.38
BSS76110 76.200 110 15.875 1.0 88 35.5 83 5000 33.5 4.6 250 0.75
BSS101145 101.600 145 22.225 1.5 118 69.5 173 3800 71.0 7.5 600 1.37



CAEC Precision Bearing Quality Control and Assurance:

Austrian AICHELIN heat treatment equipment and long-life heat treatment process provide a strong guarantee for the continuous and reliable operation of bearings.
Zys Auto Parts Spindle Bearing Sealed Angular Contact Ball Bearing 70, 72, 718, 719 for Machine Tool Spindle, CNC Machine, Motor, Gas Turbine, Robot Industry

FAQ:

Q: Are you trading company or manufacturer?
A: CAEC is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.

Q: How do you control quality of bearing?
A: CAEC has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.

Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail  for more information.

Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.

Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.

Q: Is sample avaiable?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
