Electric Motor CNC Router Spindle 80MD120y0.9 Stainless Steel

  • Electric Motor CNC Router Spindle 80MD120y0.9 Stainless Steel
  • Electric Motor CNC Router Spindle 80MD120y0.9 Stainless Steel
  • Electric Motor CNC Router Spindle 80MD120y0.9 Stainless Steel
  • Electric Motor CNC Router Spindle 80MD120y0.9 Stainless Steel
  • Electric Motor CNC Router Spindle 80MD120y0.9 Stainless Steel
  • Electric Motor CNC Router Spindle 80MD120y0.9 Stainless Steel
Place of Origin China
Brand Name CAEC
Certification ISO9001, ISO14001, OHSAS18001
Model Number 80MD150Y0.8
Minimum Order Quantity One piece
Price USD 1 for one piece
Packaging Details Standard package for export
Delivery Time 20-30 days
Supply Ability 1000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. 80MD120y0.9 Material Stainless Steel
Maximum Torque 200 Speed 40000r/Min
Drive Motor Application Motor, Machine Tool.
Device Automatic Tool Change Lubrication Oil Spray
Use Internal/External Grinding, Broach Grinding Spindle Bearing P4 Precision Ceramic Ball Bearing
R&D Capacity OEM/ODM/CAEC Spindle Standard DIN, ASTM, GOST, GB, JIS, ANSI, BS
Movement Method Linear Control Starting Mode Variable Frequency Starting
Operating Speed Adjustable Speed Number Of Stator Three-Phase
Rotor Structure Squirrel-Cage Transport Package Cases And Pallets Or As Customer′s Requirment
Specification Dimension For Motor Grinding Spindle Trademark CAEC
Origin Luoyang, Henan, China Supply Ability 10000 PCS/Year
After-sales Service One Year Warranty One Year
Logo Printing With Logo Printing Size Middle
Customized Customized Type Cutting Tool
Customization Available | Customized Request
High Light

Electric Motor CNC Router Spindle

,

CNC Router Spindle 80MD120y0.9

,

Stainless Steel CNC Router Spindle
Leave a Message
Product Description

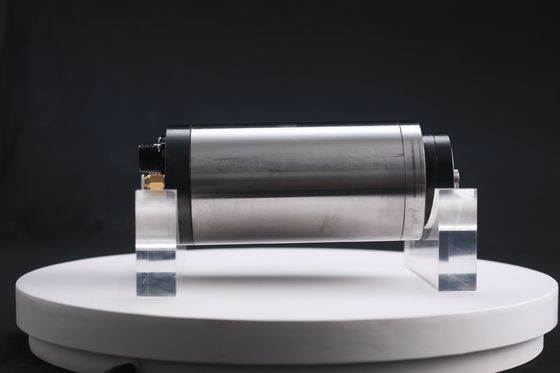

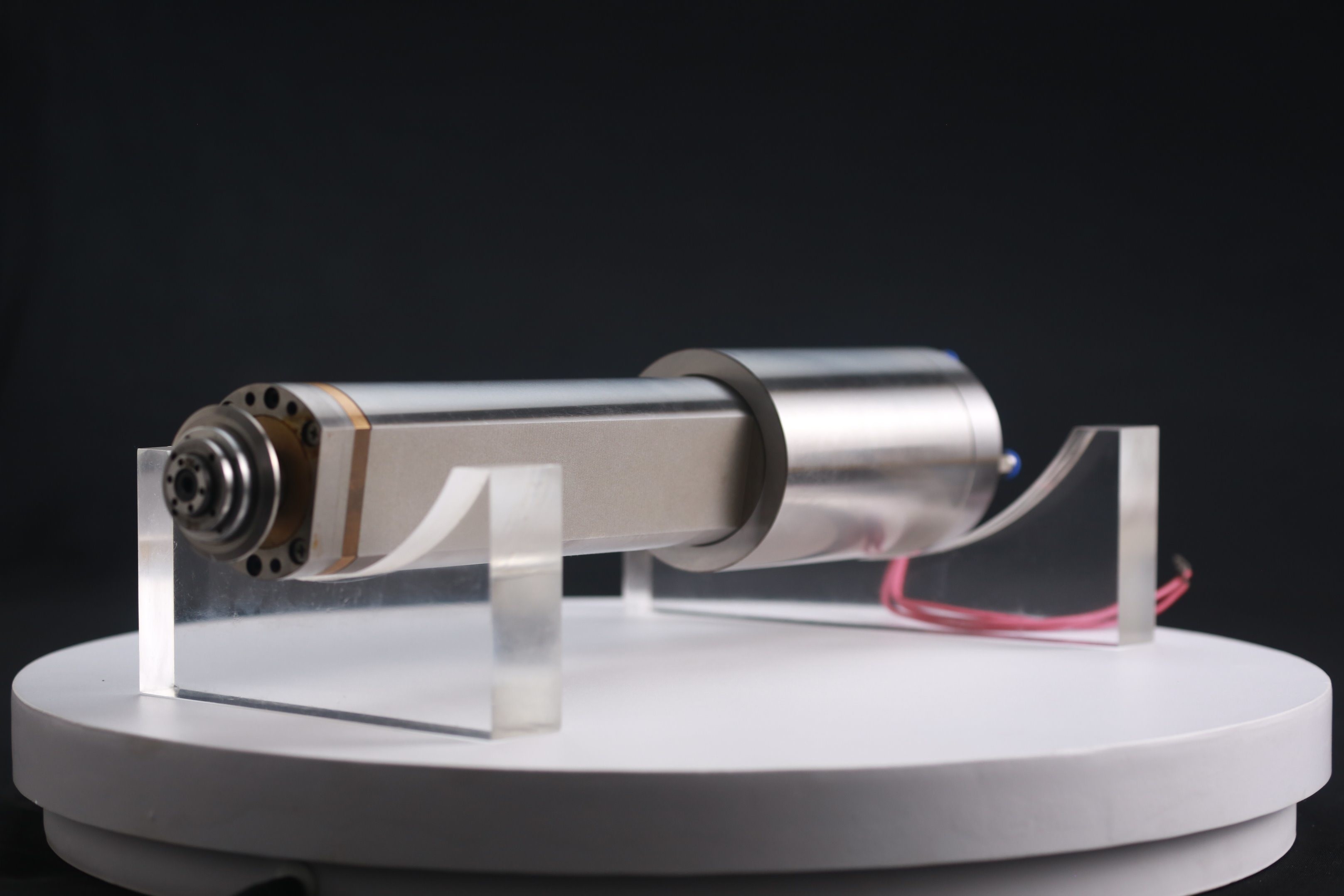

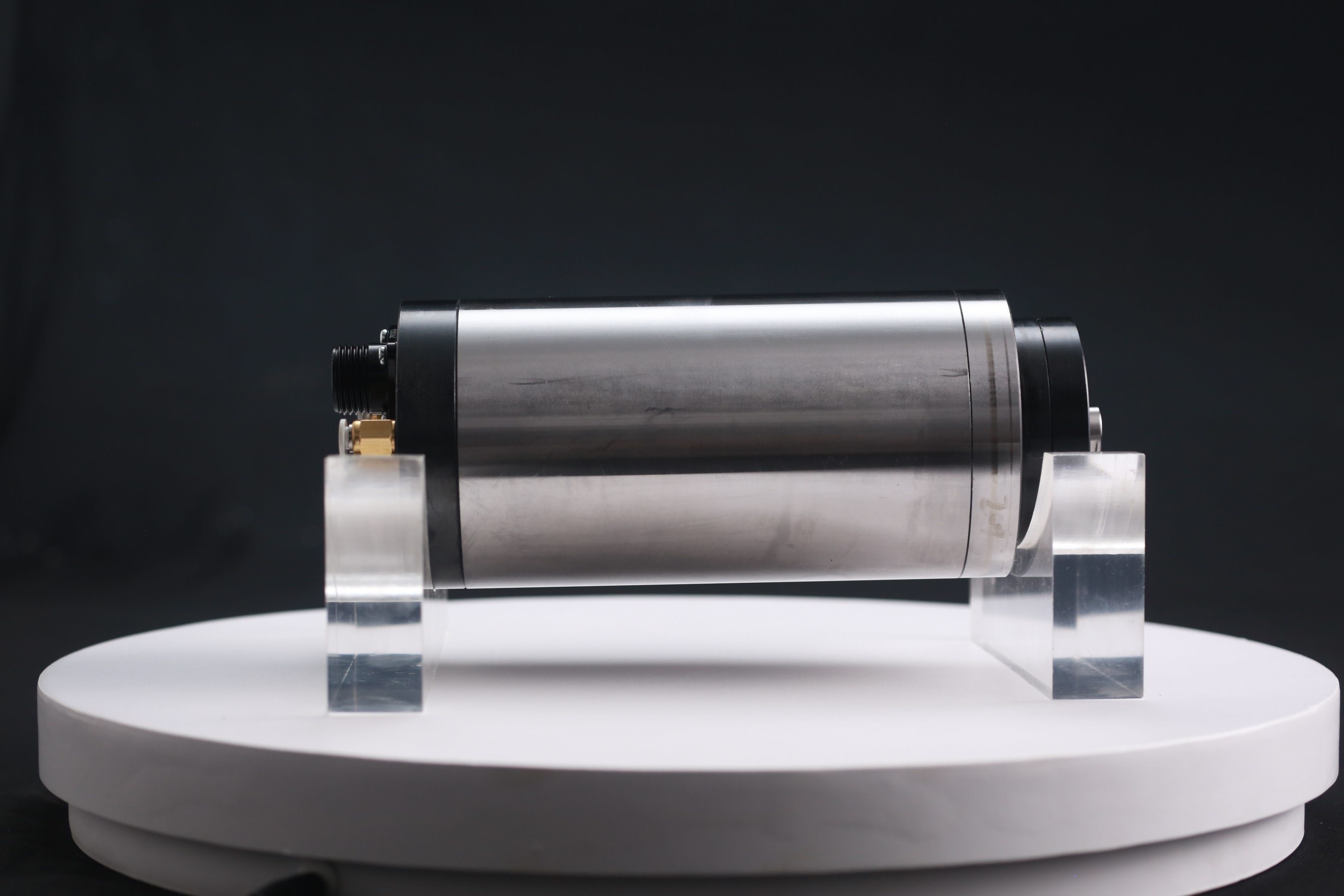

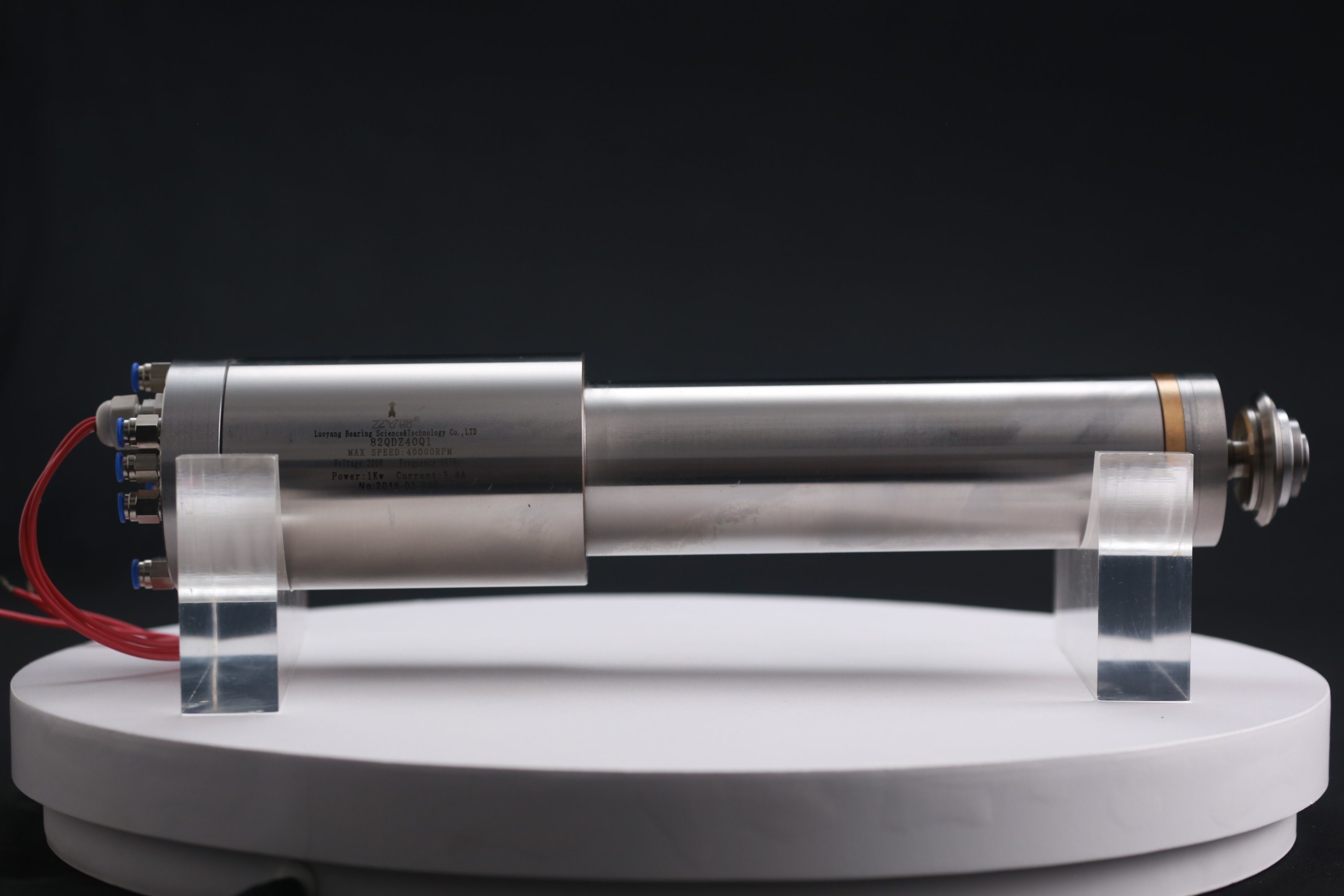

CNC Router Spindle High-Frequency Electric Motor Grinding Spindle/CNC Spindle/Atc Spindle/Water Cooling



►Product Description of grinding spindle:

The machine tool spindle is the most important part of the machine tools. The traditional machine tool spindles are driven by gearing. CAEC electric spindles are the embedded motor spindles, which drive the shaft directly to work by driving power. So our high frequency spindles reallize the compounding of motor and shaft.

The electric spindle for grinding have MD, MDF, MDT, MDS, MDK series. Grinding spindles are characterized by high precision, high speed, high power and high rigidity. Tool grinding spindles are widely used in internal grinding, external grinding, forming grinding, thread grinding, etc.



►Product features of grinding spindle:
1.Constant power section design reduces the cost of the inverter.
2.Reliable life with the application of P4 precision ceramic ball bearings.
3. Low heat loss with use of Copper rotor motor or imported motor.
Based on the above features, our high frequency and high speed spindles play the important role in improving the production efficiency and machining quality.



►Application of spindles for grinding: suitable for internal grinding, external grinding, broach grinding and thread grinding.



►Technical parameters of grinding spindle:



Type Motor parameter Dimension
  Power
(KW)
S6/ S1		 Voltage
(V)		 Current
(A)
S6/ S1		 Speed
 (r/min)		 Frequency
(Hz)		 D L D1 L1 D2 L2 d1 L1 M L2 Bearing P4 Remark
80MD150Y0.8 0.8/0.5 360 3/1.43 150000 2500 80 110 8 12 - - 3.175 14 - - 1-VEB08/NS 1-VEB08/NS
80MD120Y0.9 0.9/0.55 220 4.6/2.8 120000 2000 80 150 48 8 10 5 5 9 M5 8 1-VEB10/1-VEB10 2GDZ120
80MD90Y2.5 2.5/1.5 220 10.8/6.5 90000 1500 80 170 58 22 11 10 6 11 M6 11 2-B7001/1-B7001 GDZ90
100MD90Y3 -/3 350 -/8 90000 1500 100 165 80 24 16 8 9 16 M8X2 21 2-7003CE/2-7002CE
120MD75Y3.5 3.5/2.1 350 9/5.4 75000 1250 120 190 12 24 16 9 9 17 M9*1.25 14 2-B7003/2-B7001 2GDZ75
80MD60Y1.5 1.5/0.9 153 9/5.4 60000 1000 80 160 55 24 14 9 8 16 M8 14 2-B7002/1-B7002 DZ60B
100MD60Y4 4/2.5 350 10/6.3 60000 1000 100 185 66 24 16 8 8 13 M8*1 15 2-B7003/2-B7003 GDZ60B
120MD60Y6 6/3.6 350 16/10 60000 1000 120 220 70 11 18 11 10 19 M10*1.5 19 2-B7004/2-B7003 2GDZ60
120MD60Y7 -/7 380 -/15 60000 1000 120 222 90 28 23 10 14 22 M14*1.5 20 2-H71905HQ1/2-H71904HQ1
120MD51Y8 8/4.8 350 20/12 51000 850 120 250 70 12 23 13 14 23 M14*1.5 19 2-B7005/2-B7004 2GDZ51
120MD48Y5.8 5.8/3.5 350 15/9 48000 800 120 230 80 23 23 14 14 24 M14*1.5 19 2-B7005/2-B7004 GDZ48
120MD42Y9 9/5.5 350 20/12 42000 700 120 230 90 27 23 12 14 24 M14*1.5 19 2-B7005/2-B7004 GDZ42S
120MD36Y8.5 8/5.5 350 18/11 36000 600 120 255 92 30 28 12 16 27 M16*1.5 20 2-B7006/2-B7005 GDZ36B
120MD36Y8.5C 8/5.5 350 18/11 36000 600 120 255 92 28 33 15 20 34 M20*1.5 20 2-B7007/2-B7005 GDZ36C
150MD36Y11 11/7 350 30/15.6 36000 600 150 270 105 32 33 14 20 34 M20*1.5 20 2-B7007/2-B7006 2GDZ36
150MD36Y11A -/11 360 /22 36000 1200 150 270 116 30 33 13 20 34 M20*1.5 20 2-B7007/2-B7006
120MD30Y11 11/6.6 350 30/17.8 30000 1000 120 315 70 10 33 7 20 34 M20*1.5 19 2-B7007/2-B7006 2GDZ30N
120MD24Y12 12/7.2 350 30/18 24000 800 120 315 70 10 43 8 22 38 M22*2 24 2-B7009/2-B7006 2GDZ24N
150MD24Y12.5 12.5/7.5 350 26.7/16 24000 400 150 310 98 32 38 19 22 38 M22*2 26 2-B7008/2-B7007 GDZ24A
150MD24Y16 16/10 350 38/23 24000 800 150 320 105 30 43 18 25 42 M25*2 25 2-B7009/2-B7007 2GDZ24
150MD24Y16A -/16 380 -/30 24000 800 150 331 122 37 47 16 28 44 M28*2 25 2-B7010/2-B7009
170MD24Y22 22/14 350 -/30.2 24000 800 120 305 110 40 43 22 25 42 M25*2 24 2-B7009/HQ12-B7008/HQ1
150MD18Y14.5 14.5/8.6 350 32/20 18000 300 150 327 110 38 43 22 25 40 M25*2 30 2-B7009/2-B7008 GDZ18A
170MD18Y16 16/10 350 35/21.2 18000 600 170 305 110 40 43 22 25 42 M25*2 24 2-B7009/2-B7008 GDZ18R
170MD15Y20 20/12 350 46.3/27.8 15000 500 170 320 116 38 53 17 32 50 M30*2 25 2-B7011/2-B7009 2GDZ15
170MD15Y16 16/10 350 35/21.2 15000 500 170 325 116 38 48 24 28 47 M28*2 25 2-B7010/2-B7009 GDZ15R
170MD15Y25A -/25 380 -/46 15000 500 170 414 140 38 53 18 32 49 M32*2 23 2-B7012/2-B7010
200MDF15Y28 28/18 380/300 44/35 15000
/8000		 500/267 200 430 140 42 53 25 32 50 M30*2 28 2-B7011/2-B7010
170MD12Y16 16/10 350 36/22 12000 400 170 330 124 40 53 22 36 40 M33*2 30 2-B7011/2-B7009 GDZ12R-10
170MD12Y20 20/12 350 41.5/25 12000 400 170 370 124 40 53 22 36 40 M33*2 30 2-B7011/2-B7009 GDZ12R-12
170MD12Y32 32/20 350 36/22 12000 400 170 370 124 40 53 22 36 40 M33*2 30 2-B7011/2-B7009
250MD10Y17 17.6/11 350 38.5/24 10000 334 250 350 140 15 53 28 25 35 M24*1.5 33 2-B7011/2-B7009
170MD09Y20 20/12.5 350 43/26.9 9000 300 170 383 124 40 53 22 36 40 M33*2 30 2-B7011/2-B7009 GDZ09
210MD09Y33 33/20.6 350 70/43.8 9000 300 210 403 140 44 55 54 - - Cone 1:8   2-B7212/2-B7009 2GDZ09
210MD09Y33B -/33 350 70 9000 300 210 522 165 70 68 53 45 55 M42*2 40 3-7014/2-7211
210MD06Y20 -/20 350 42.5 6000 200 210 491 140 44 55 54 - - Cone 1:8 46 2-7212/2-B7009
200MD06Y20 -/20 380 - 6000 200 200 557 165 20 77 123 - - Cone 1:10 66 4-7016/2-7011
120MD75Z3.5 3.5/2.2 350 -/9 75000 1250 120 190 65 24 16 9 9 17 M9*1.25 14 2-H71903HQ1/2-H7001HQ1
100MD60Z4 4/2.5 350 10/6.3 60000 1000 100 185 76 26 16 8.5 8 14 M8*1 15 2-H7003HQ1/2-H7003HQ1
120MD48Z7 7/4.5 350 15.6/9.8 48000 800 120 230 90 25.5 23 11.5 14 24 M14*1.5 19 2-H7005HQ1/2-H7004HQ1
120MD36Z9.5A 9.5/6 350 -/12.6 36000 600 120 255 94 36 28 14 16 27 M16*1.5 20 2-H7006HQ1/2-H7005HQ1
150MD36Z11A -/11 360 -/22 36000 1200 150 270 116 30 33 13 20 34 M20*1.5 20 2-H7007HQ1/2-H7006HQ1
120MD24Z5.5 5.5/3.3 250 18/11 24000 400 120 255 92 30 28 12 16 27 M16*1.5 20 2-B7006/2-B7005 GDZ24K
150MD24Z16 16/10 350 38/24 24000 800 150 327 121 30 43 19 25 42 M25*2 25 2-B7009HQ1/2-H7007HQ1
150MD24Z16-YT -/16 380 -/30 24000 800 150 331 122 37 47 16 28 44 M28*2 25 2-H7010HQ1/2-H7009HQ1
150MD18Z9 9/5.5 350 22.4/13.5 18000 300 150 290 95 40 38 18 22 36 M22*2 28 2-B7008/2-B7007 DZ18B
170MD18Z16 16/10 350 -/19.7 18000 300 170 340 120 46 43 20 25 42 M25*2 26 2-B7009/2-B7007 GDZ18G
170MD15Z25 -/25 380 -/46 15000 500 170 414 140 38 53 18 32 49 M32*2 23 2-H7012HQ1/2-H7010HQ1
170MD15Z16 16/10 350 35/21.2 15000 500 170 325 116 38 48 24 28 47 M28*2 25 2-B7010/2-B7009
170MD15Z20 20/12 350 46.3/27.8 15000 500 170 320 116 38 53 17 32 50 - 25 2-B7011/2-B7009
170MD12Z20 20/12 350 41.5/25 12000 400 170 370 124 40 53 22 36 40 M33*2 30 2-B7011/2-B7009
160MDF09Z9 -/9 350 19 9000 300 160 280 120 42 38 18       60 2-H7009HQ1/2-H7007HQ1
170MD07Z8.5 8.5/5 350 19/11.5 7000 234 170 320 120 117 50 24 33 52 M33*1.5 27 3-VEX55/2-VEX45
170MD09Z20 20/12.5 350 43 9000 300 170 383 124 70 50 24         3-B7011/2-B7009
210MD09Z33 33/20.6 350 70/43.8 9000 300 210 403 140 44 55 54         2-B7212/2-B7009 2GDZ09
170MD07Z8.5W 8.5/5 350 19/11.5 7000 234 170 320 120 117 50 74         3-VEX55/2-VEX45 2GDZ07
200MD06Z8 -/8 380 -/15 6000 100 200 370 150 97 57 54         3-B7012/2-B7010
200MD06Z20 -/20 350 42.5 6000 200 200 491 150 58 50 80         2-7212AC/2-7009AC
230MDF06Z40 -/40 380 75 6000 200 230 763 - - - -         4-B7017/2-7013
180MD03Z10B -/10 380 21 3000 100 180 530 165 20 - -         4-7016/2-7011
200MD03Z12 12/8 350 18.5 3000
/2100		 100/70 200 470 165 100 75 15         4-7016/2-7010
240MD03Z16 -/16 380 -/32 3000 100 240 415 178 104 80 20         4-7017/2-7013
260MD03Z24B 15 380/350 33/36 3000/
1500		 100/50 260 423 165 57 75 15         3-7016/2-7013
240MD015Z10 10/6.25 - 30/18.7 1500 50 240 410 190 92 85 24         3-7017/2-7012 GDZ015
80MD150Q0.8 0.8/5.5 350 3/1.43 150000 2500 80 110 8 12 - - 3.175 14 - - 1-VEB08NS/1-VEB08NS
80MD120Q0.9 0.9/0.55 220 4.6/2.8 120000 2000 80 150 48 8 10 5 5 9 M5 8 1-VEB10/1-VEB10
120MD100Q2.5 -/2.5 200 -/9 100000 1667 120 177 75 3.5 19 8 11 8 M10*1.25 12 1-71904/1-71903
120MD75Q8 85 350 18.4/11.5 75000 1250 120 210 80 25 18.5 13 10 19 M1081.5 19 2-VEX20NS/2-VEX17NS
100MD60Q6 6/3.6 350 16/10 60000 1000 100 255 - - 28 9 8 16 M8*1 15 2-VEX30NS/2-VEX20NS 2GDZ60Q
100MD60Q9 -/9 350 13.3 60000 1000 100 255 - - 28 9 16 23 M16*1.5 30 2-VEX30NS/2-VEX20NS
140MD60Q9 9/5.5 350 13.3/8.3 60000 1000 149.8 260 129.7 50 53 13.5 16 25 M16*1.5 19 2-VEX30NS/2-VEX25NS
170MD60Q(HW) 7.5/4.5 380 14.4/9 48000
/60000		 800/1000 170 220 - - 28 6.5 16 24 M16*1.5 20 2-VEX30NS/2-VEX25NS
120MD51Q8 8/4.8 350 20/12 51000 850 120 232 80 30 23 10 14 23 M14*1.5 19 2-B7005/2-B7004
170MD36Q13.6 13.6/8.5 350 28.6/18 36000 600 170 390 115 47 43 32 25 38 M25*2 29 2-VEX45NS/2-VEX35NS
120MD30Q12 19/12 350 49/31 30000 1000 120 370 - - 43 15 28 44 M28*2 29 2-VEX45NS/2-VEX30NS
170MD30Q32H 32/21 350 46 30000 1000 170 340 126 45 53 27 32 46 M32*2 25 2-H7011CHQ1/2-H7009CHQ1
150MD30Q23 23/14.4 380 49/30 30000 1000 149.8 260 129.7 50 53 13.5 32 50 M32*2 26 2-VEX55NS/2-VEX40NS
150MD21Q18 18/11 380 35.5/21.4 21000 350 150 320 110 38 43 18 25 40 M25*2 30 2-B7009/2-B7008
170MD24Q30H 30/19 350 41 24000 800 170 340 136 45 63 27 36 50 M36*2 30 2-H7014CHQ1/2-H7009CHQ1
170MD12Q40H 40/30 350 58 12000 600 170 415 137 49 68 27 40 50 M40*2 30 2-H7014CHQ1/2-H7009CHQ1
210MD09Q46H 46/33 350 70 9000 300 210 560 190 24 97 30 48 55 M48*2 40 2-H7020CHQ1/2-7211CP4


►Main series of motor grinding spindle:
MD,MDF,MDT series High frequency Spindles for Grinding
XD,XDS,XDJ series High frequency Spindles for Milling
CD,CDS,CDJ series High-frequency Spindles for Turning
DZ,DZS series High-frequency Spindles for Drilling

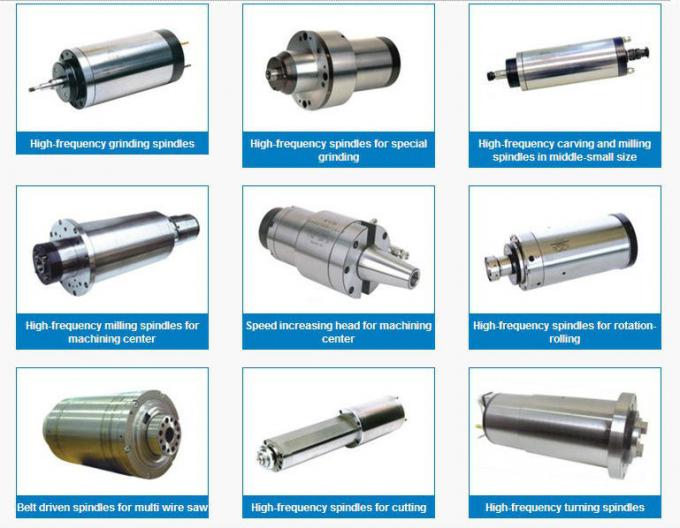

►Types of motor grinding spindle:

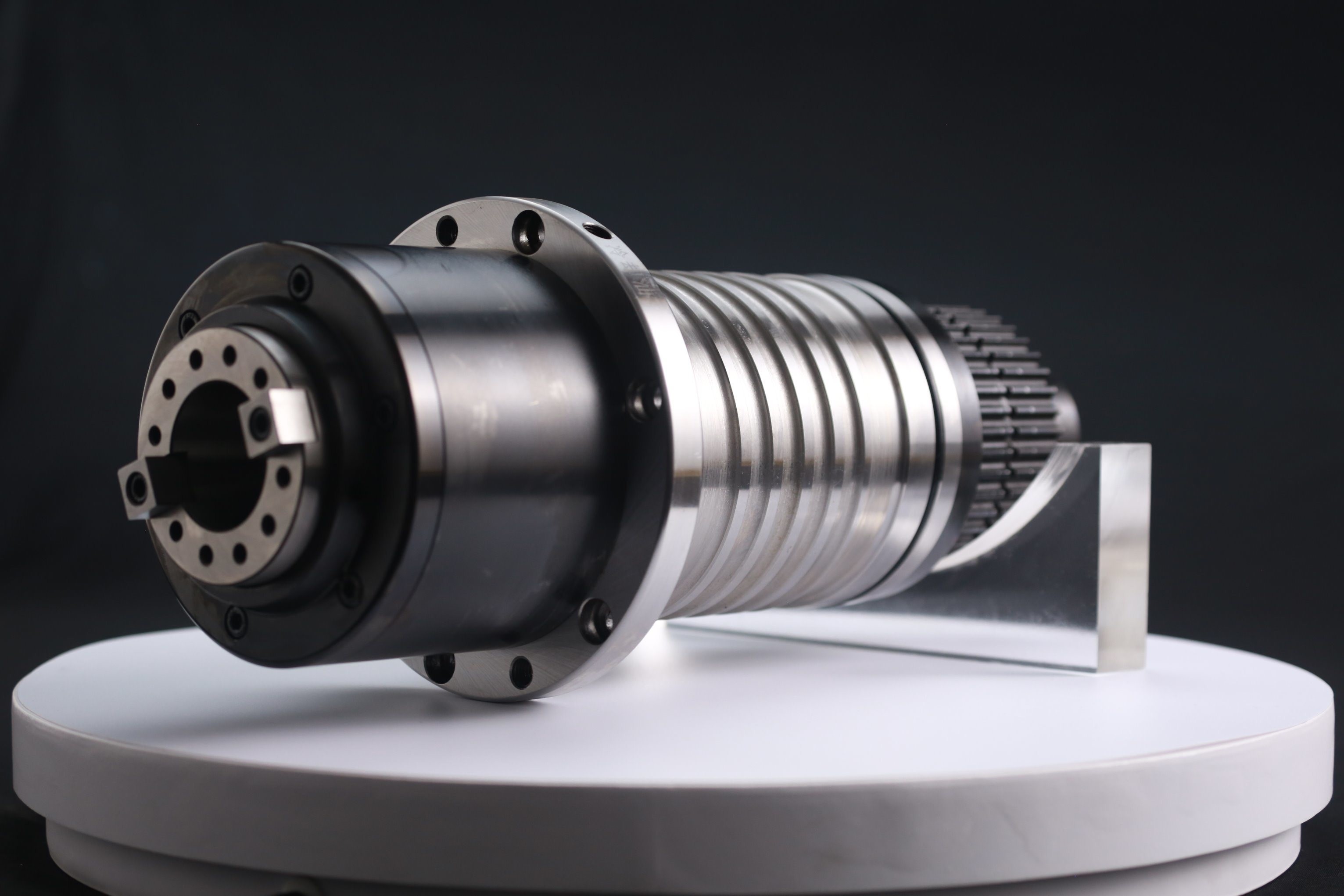

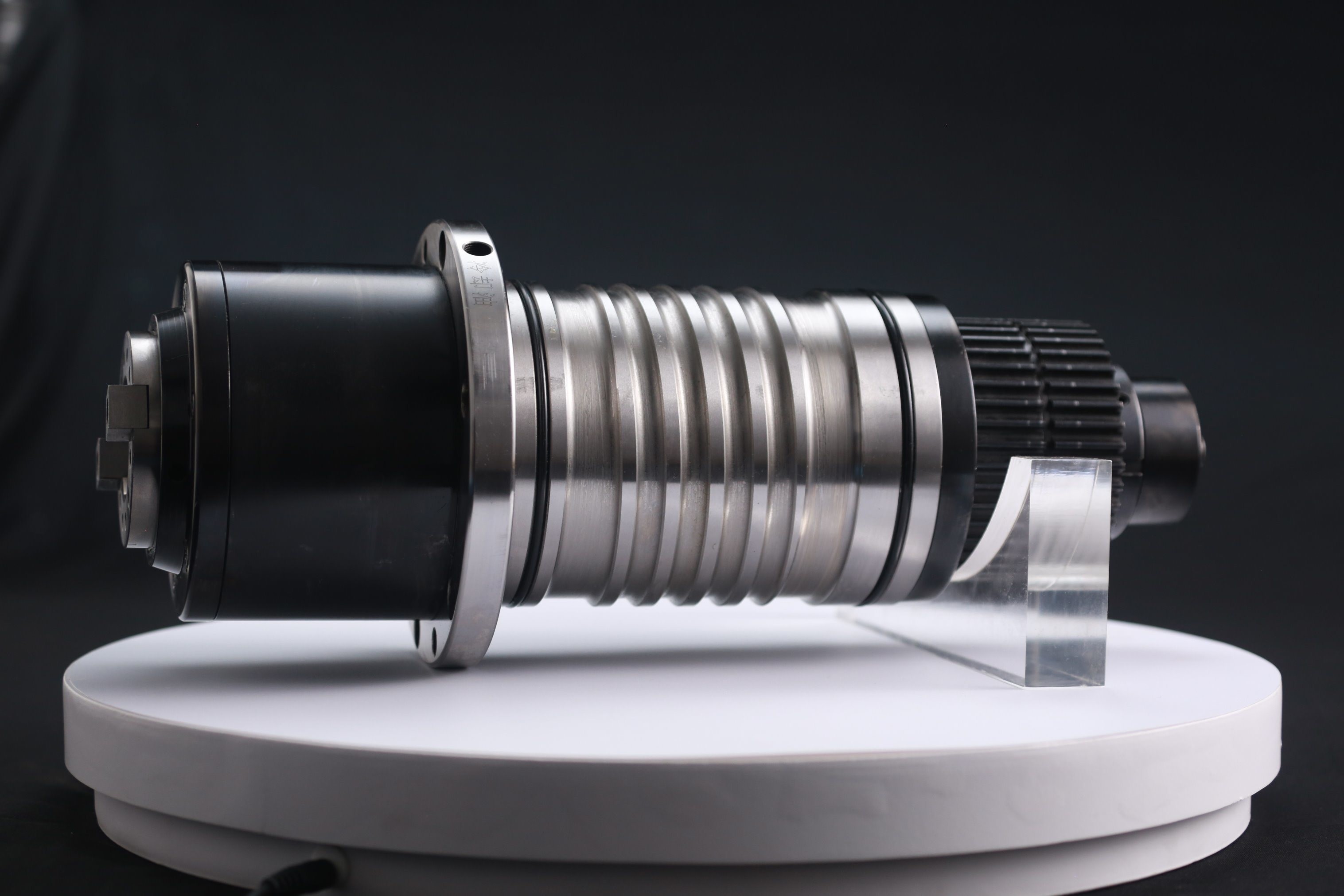

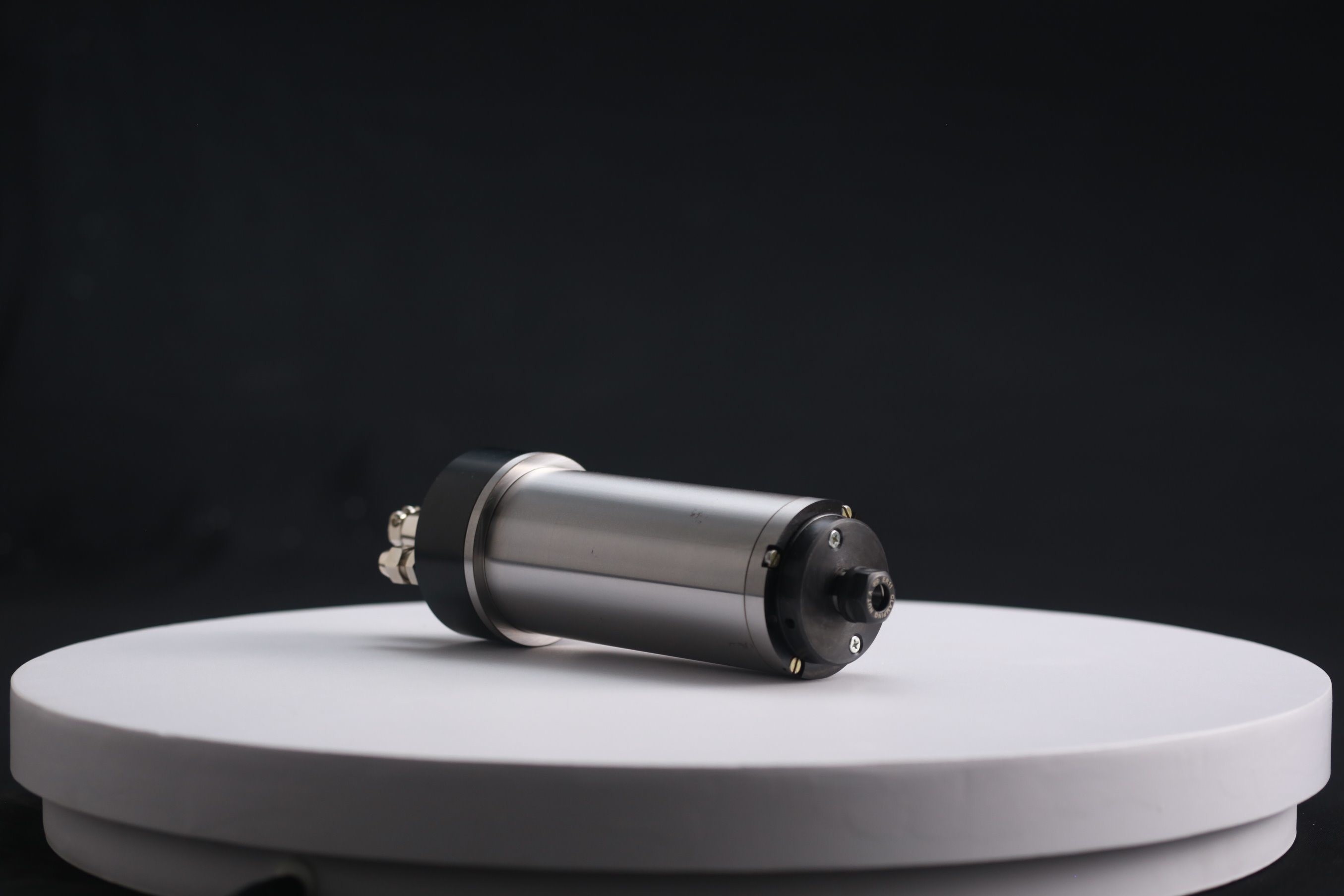

CNC Router Spindle High-Frequency Electric Motor Grinding Spindle/CNC Spindle/Atc Spindle/Water Cooling Spindle/ Air Cooling Spindle with Automatic Tool Change



►The brief introduction of  spindle workshop:

In 1958,  we set the 308 Research Group to develop the spindles. After more than 60 years of development, it has gradually developed from the original scientific research institution into the company which collects the spindle research, development and production as a whole. The production area of spindle workshop reached 32,800 square meters. Luoyang Bearing Research Institute Co., Ltd. is the main drafting unit of spindle national standard, the chairman unit of the spindle branch of China Machine Tool Industry Association, the leader of the 863 spindle project, the responsible unit of the "Eighth Five-Year Plan", "Ninth Five-Year Plan", "Tenth Five-Year Plan" and major national science and technology projects for CNC machine tool spindle. It is also the location of Henan Machine Tool Spindle Engineering Technology Research Center.

We has an annual production capacity of 6000 sets of spindles



►The Milestone of spindle products:

  • 1958 China's first electric spindle
  • 1980 China's first pneumatic static spindle
  • 1995 China's first machining center spindle
  • 1999 China's first engraving and milling spindle
  • 2006 China's first precision turning spindle
  • 2016 China's first permanent magnet workpiece spindle
  • 2017 Research and development of high-end machining center electric spindle
  • 2018 Research and development of intelligent spindle

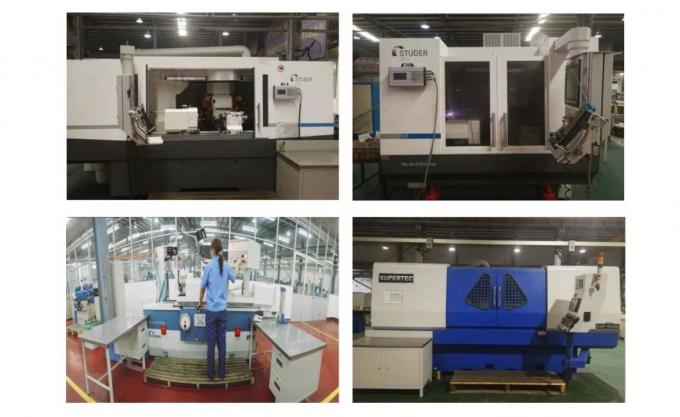

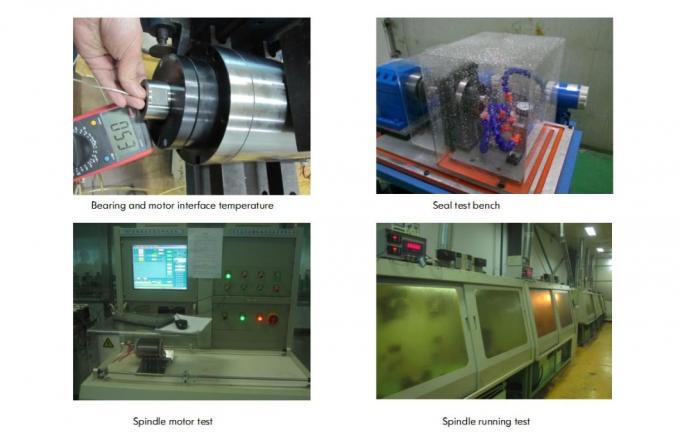

►Manufacturing capacity of grinding spindle:

CNC Router Spindle High-Frequency Electric Motor Grinding Spindle/CNC Spindle/Atc Spindle/Water Cooling Spindle/ Air Cooling Spindle with Automatic Tool ChangeCNC Router Spindle High-Frequency Electric Motor Grinding Spindle/CNC Spindle/Atc Spindle/Water Cooling Spindle/ Air Cooling Spindle with Automatic Tool Change

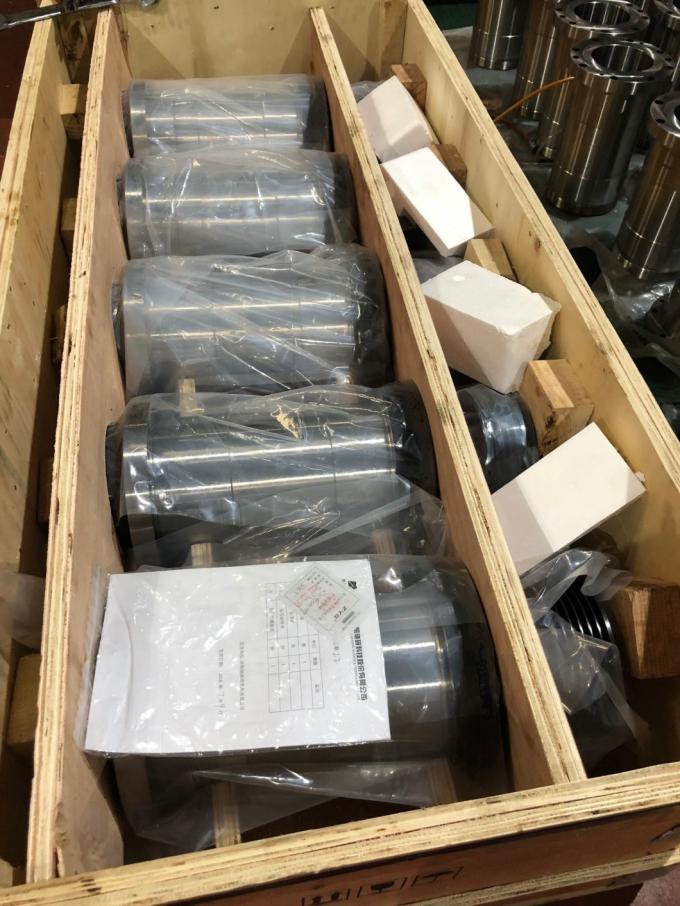

►Package of grinding spindle:

CNC Router Spindle High-Frequency Electric Motor Grinding Spindle/CNC Spindle/Atc Spindle/Water Cooling Spindle/ Air Cooling Spindle with Automatic Tool Change

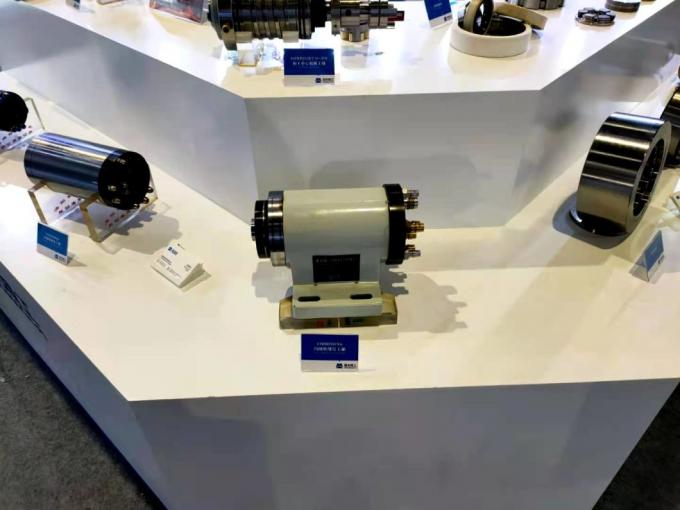

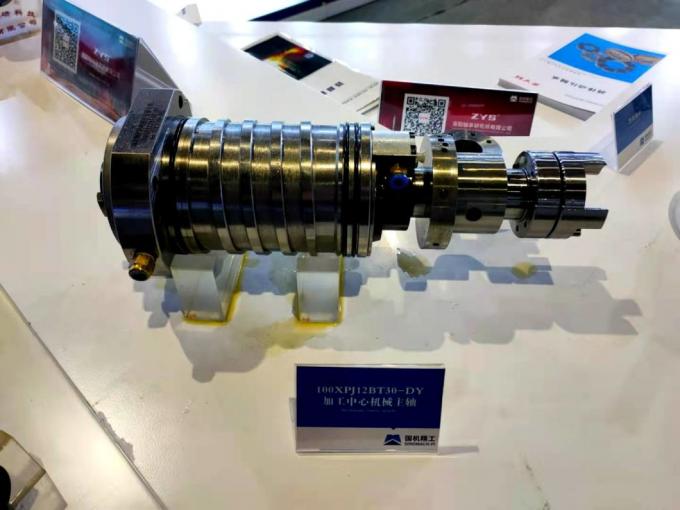

►Exhibition of grinding spindle:

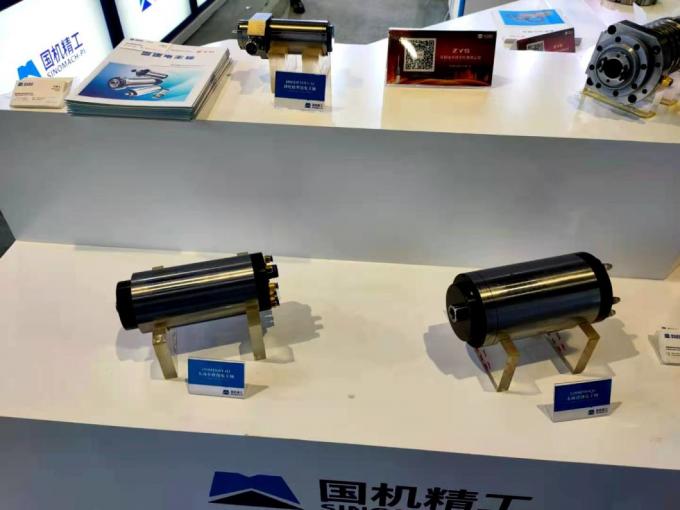

CNC Router Spindle High-Frequency Electric Motor Grinding Spindle/CNC Spindle/Atc Spindle/Water Cooling Spindle/ Air Cooling Spindle with Automatic Tool Change
CNC Router Spindle High-Frequency Electric Motor Grinding Spindle/CNC Spindle/Atc Spindle/Water Cooling Spindle/ Air Cooling Spindle with Automatic Tool Change
CNC Router Spindle High-Frequency Electric Motor Grinding Spindle/CNC Spindle/Atc Spindle/Water Cooling Spindle/ Air Cooling Spindle with Automatic Tool Change
