GY8768 GY8785 Carbide Cutting Tool Custom Profile End Mill

  • GY8768 GY8785 Carbide Cutting Tool Custom Profile End Mill
  • GY8768 GY8785 Carbide Cutting Tool Custom Profile End Mill
  • GY8768 GY8785 Carbide Cutting Tool Custom Profile End Mill
  • GY8768 GY8785 Carbide Cutting Tool Custom Profile End Mill
  • GY8768 GY8785 Carbide Cutting Tool Custom Profile End Mill
Place of Origin China
Brand Name CAEC
Certification ISO9001, ISO14001, OHSAS18001
Minimum Order Quantity One piece
Price USD 1 for one piece
Packaging Details Standard package for export
Delivery Time 1-3 day
Supply Ability 50000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

GY8785 Carbide Cutting Tool

,

GY8768 Carbide Cutting Tool

,

Custom Profile End Mill
Leave a Message
Product Description

Carbide profile cutting tool improves component’s surface quality, increases cutting tools life performance and productivity. Main products CTRI develops are used in manufacturing industry including turbines, generators equipment and aerospace etc. CTRI provides experienced and systematic solutions in key spare parts such as turbine processing, various root processing, turbine rotor and generator rotor etc.

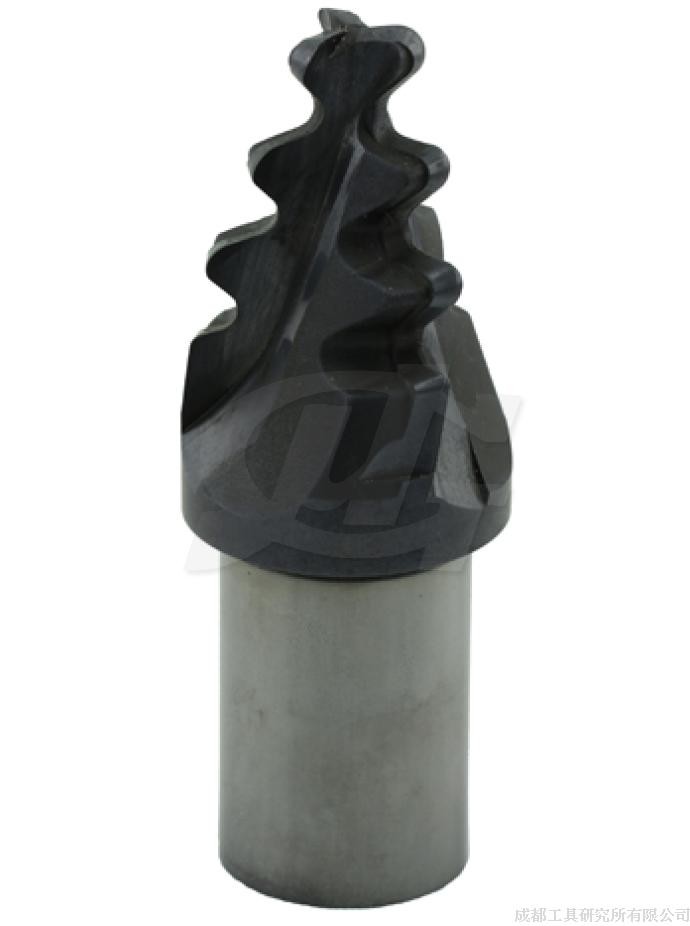

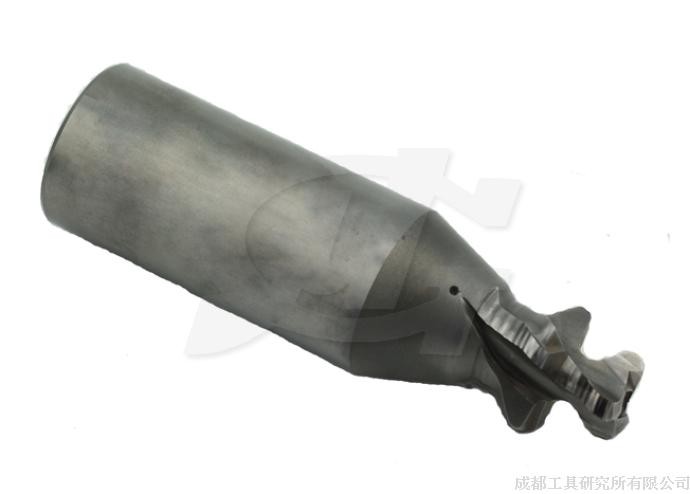

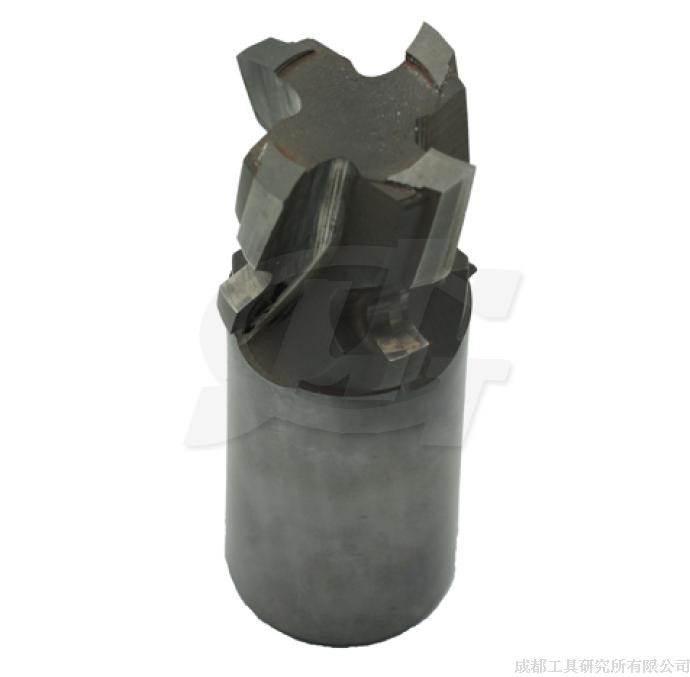

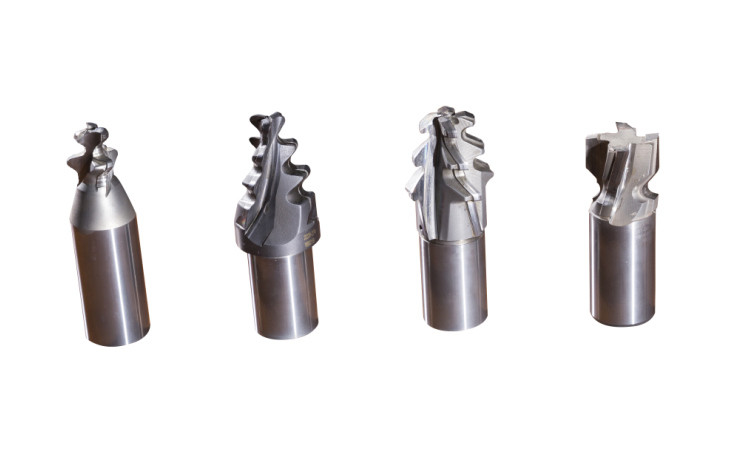

Carbide Profile Mills





Application Areas: energy industry generating equipment manufacturing , aerospace stainless steel, titanium , high temperature alloy processing.

Tool Accuracy: Shank Tolerance Level H6, Tool Profile : Tolerance + -0.005mm

Cutting data recommendations
Cutting Materials Stainless Steel High-strength Steel
Processing Method Roughing Finishing
Cutting Speed(m/min) 80-160 130-240 32-96
Feed(m/min) 0.4-1.2 0.4-1.0 0.4-0.8
Cutting Depth(mm) 0.5-2.5 0.5-2.5 0.5-1.5
Cutting Material and Coating GY8768 GY8785 GY8768 GY8785
Cooling Method Dry Wet Dry /Wet Dry /Wet



2. Carbide Die, Abrasion Wear Parts, Rough Material

 Application Areas: generating equipment manufacturing in energy industry, automobile manufacturing , small margin blanks of aerospace tool , carbide die and abrasion wear parts.

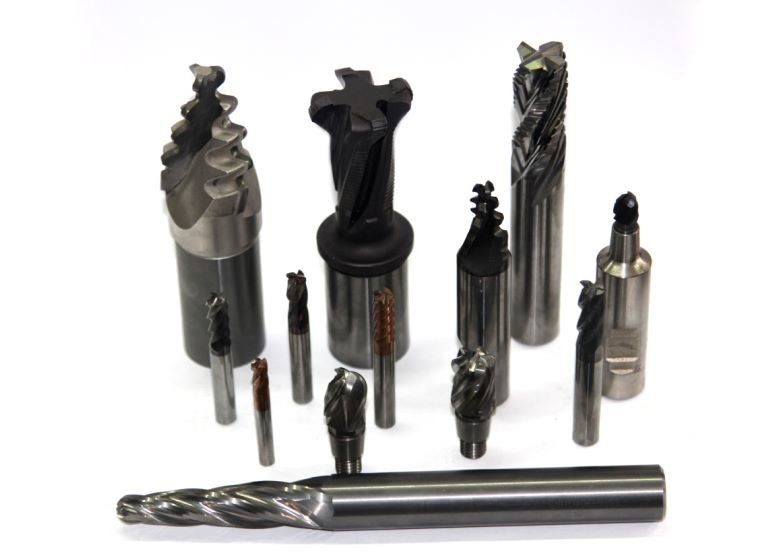

3. Standard Carbide End Mills

Application Areas: generating equipment manufacturing in energy industry, aerospace stainless steel, titanium, high temperature alloys and aluminum alloy, hardened mold processing, general tool and mould manufacturing.



End Mills

Cutting data recommendations

Liner velocity:coated(80-100m/m)

uncoated (80-100m/m)

Single teeth feed:(0.1-0.2mm/m)



End Mills

Specifications and Models
Edge Diameter d 4--32
Shank Diameter D 6,8,10,12,14,16,18,20,24,25,32
Edge Length l 10--100
Total length L 50--200
Edge number Z 2,3,4,6,8
Helix Angle Size 0°, 5°, 15°, 20°, 30°, 35°, 40°, 45°

Unit: millimeter(mm)



Corner Radius Mills

Cutting data recommendations

Liner velocity:coated(80-100m/m)

uncoated (80-100m/m)

Single teeth feed:(0.1-0.2mm/m)

Corner Radius Mills

Specifications and Models
Edge Diameter d 4--32
Shank Diameter D 6,8,10,12,14,16,18,20,24,25,32
Edge Length l 10--100
Total length L 50--200
Edge number Z 2,3,4
Helix Angle Size 0°, 5°, 15°, 20°, 30°, 35°, 40°, 45°
Corner Radius R 0.5--10



Ball Nose End Mills

Cutting data recommendations

Liner velocity:coated(80-100m/m)

uncoated (80-100m/m)

Single teeth feed:(0.1-0.2mm/m)



Ball Nose End Mills Unit: millimeter(mm)

Specifications and Models
Edge Diameter d 4--32
Shank Diameter D 6,8,10,12,14,16,18,20,24,25,32
Edge Length l 10--100
Total length L 50--200
Edge number Z 2,3,4,6,8
Helix Angle Size 0°, 5°, 15°, 20°, 30°, 35°, 40°, 45°
Ball Nose Diameter R 2--16



Conical Ball Nose End Mill

Cutting data recommendations

Liner velocity:coated(80-100m/m)

uncoated (80-100m/m)

Single teeth feed:(0.1-0.2mm/m)



Conical Ball Nose End Mill Unit: millimeter(mm)

Specifications and Models
Conical Degree 2°--10°
Shank Diameter D 6,8,10,12,14,16,18,20,25,32
Edge Length l 10--100
Total length L 100--300
Edge number Z 2,3,4,
Helix Angle Size 0°, 5°, 15°, 20°, 30°, 35°, 40°, 45°
Ball Nose Diameter R 2--16



High-speed Mill, Large Helix Angle Mill, Unequal Tooth Mill

Cutting data recommendations

Liner velocity:coated(80-100m/m)

uncoated (80-100m/m)

Single teeth feed:(0.1-0.2mm/m)



Specifications and Models
Shank Diameter D 6,8,10,12,14,16,18,20,25,32
Edge Length l 10--100
Total length L 80--200
Edge number Z 2,3,4,
Helix Angle Size 20°, 30°, 35°, 40°, 45°
Ball Nose Diameter R 2--16





Exchangeable Heads End Mills



Cutting data recommendations

Liner velocity:coated(80-100m/m)

Single teeth feed:(0.1-0.2mm/m)



Exchangeable Heads End Mills

Specifications and Models
Edge Diameter d 10,12,16
Shank Diameter D 20
Edge Length l 20
Total length L 100--200
Edge number Z 3,4,
Helix Angle Size 15°, 20°, 30°
Ball Nose Diameter R 5,6,8
Corner Radius r 0.5--3



4. Machine Clip Inserts

We developed special milling base materials graded GY83 and GY87, which have remarkable toughness and excellent wear resistance especially matching with preferred PVD composite coating by using the addition of tombarthite elements and a special sintering processing. The materials are mainly used in milling of high-temperature alloys, titanium, stainless steel, turbine blades and other difficult-to-machine materials. This kind of coating with a high resistance to flank wear and crater wear when milling stainless steel.



Blades, Rotors and Special Steel Series of Carbide Mill Inserts

Cutting Data Recommendations
Cutting Materials Stainless Steel Based Alloy Titanium
Processing Method Roughing Finishing
Cutting Speed(m/min) 80-160 130-240 40-120 40-60
Feed(m/min) 0.4-1.2 0.4-1.0 0.6-0.8 0.4-0.8
Cutting Depth(mm) 0.5-2.5 0.5-2.5 0.5-1.5 0.5-1.5
Cutting Material and Coating GY8768 GY8785 GY8768 GY8785 GY8785
Cooling Method Dry Wet Dry /Wet Dry /Wet Dry /Wet
