Black Threaded Tube Inserts Indexable Standard Threading Inserts

  • Black Threaded Tube Inserts Indexable Standard Threading Inserts
  • Black Threaded Tube Inserts Indexable Standard Threading Inserts
  • Black Threaded Tube Inserts Indexable Standard Threading Inserts
  • Black Threaded Tube Inserts Indexable Standard Threading Inserts
  • Black Threaded Tube Inserts Indexable Standard Threading Inserts
Place of Origin China
Brand Name CAEC
Certification ISO9001, ISO14001, OHSAS18001
Minimum Order Quantity One piece
Price USD 1 for one piece
Packaging Details Standard package for export
Delivery Time 7-10 days
Supply Ability 50000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Indexable Standard Threading Inserts

,

Black Threaded Tube Inserts

,

Black Threading Inserts
Leave a Message
Product Description

Indexable standard threading inserts

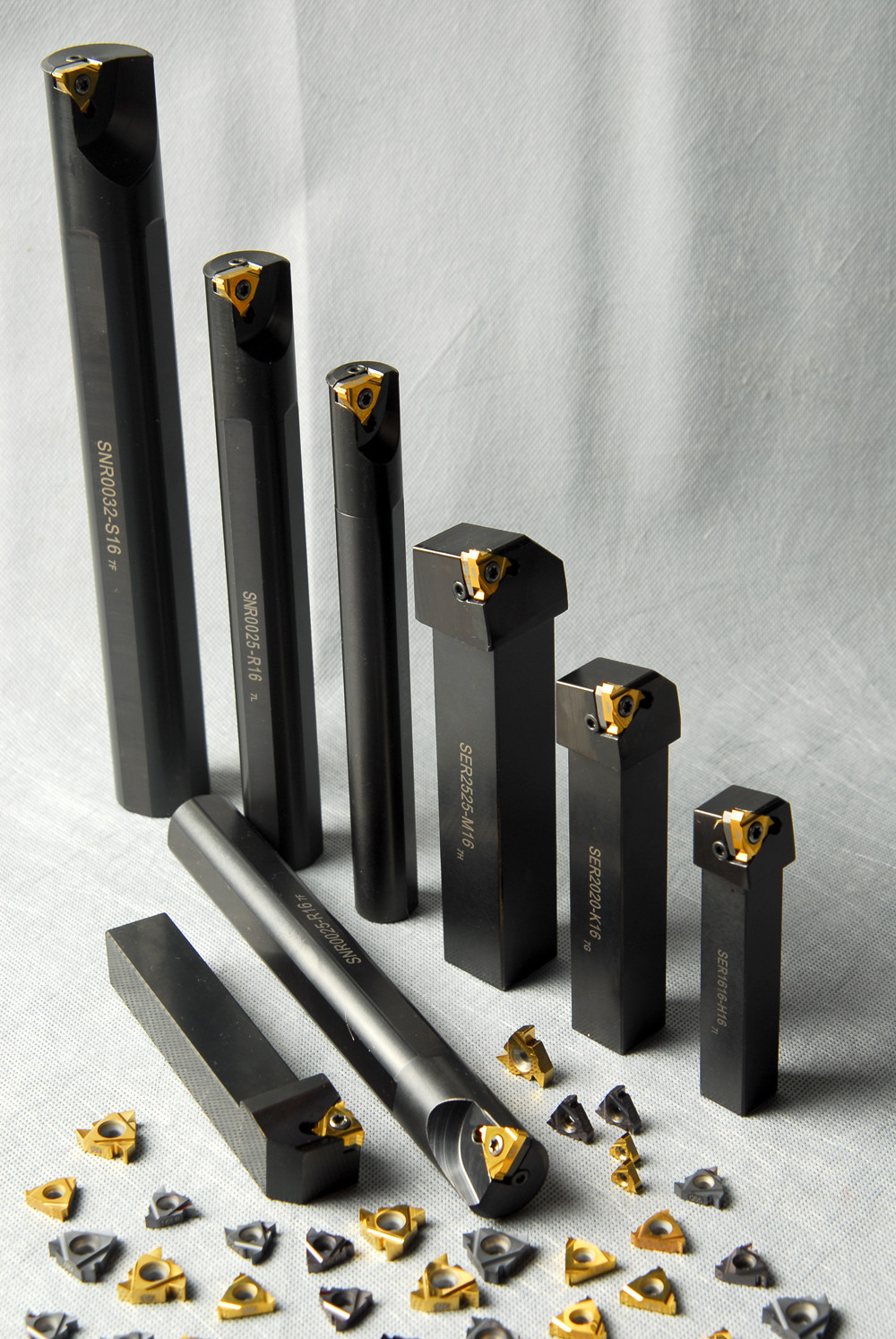

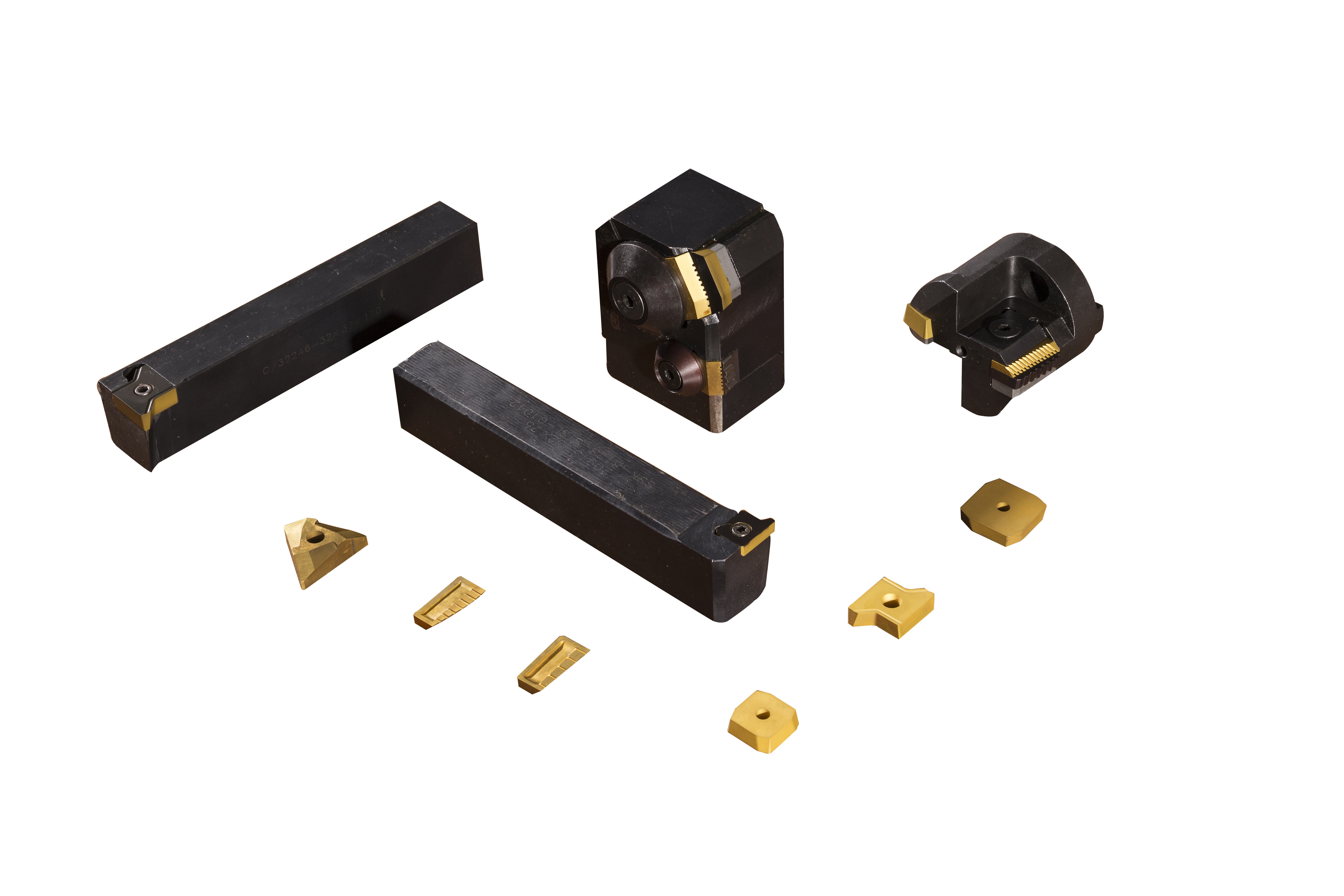

Indexable Thread Turning Cutting Tool

Product Introduction:

Indexable thread turning cutting tools have a wide range of threading types such as ISO, UN, W, BSPT, ACME,STACME, API, NPT, Tr, 3°/30°, 7°/45°, B.S.BUTTRESS, ABUTT, and other non-standard special threading types. The cutting precision and cutting performance have reached international level. Different threading cutting tools grades are available for stainless steel, cast iron, cast steel, high strength steel and non-ferrous metal etc.

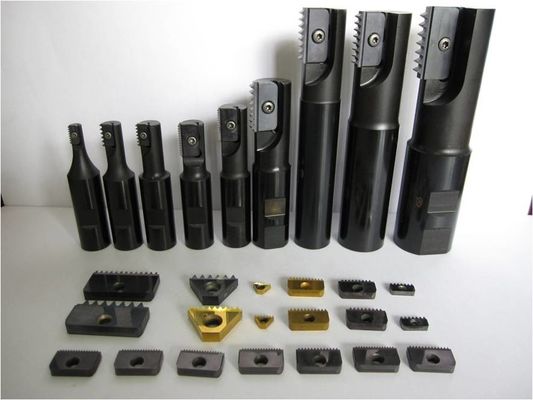

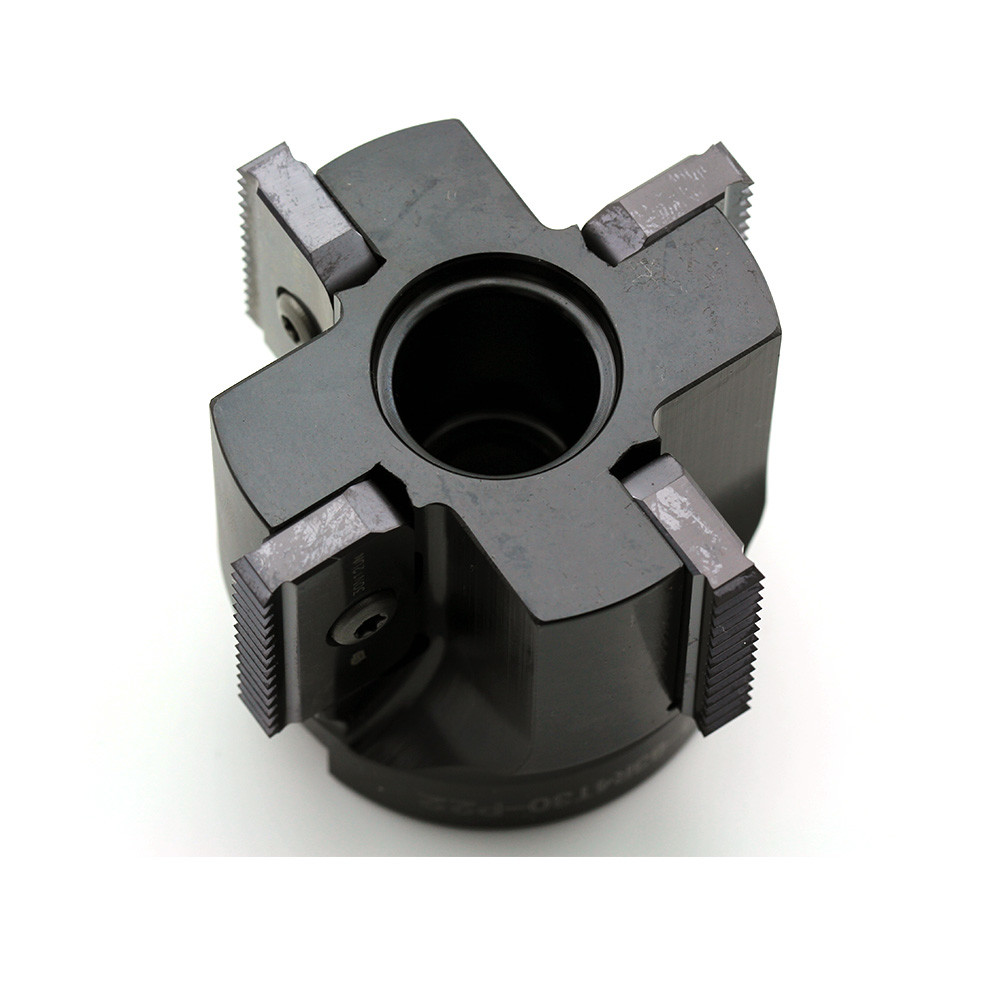

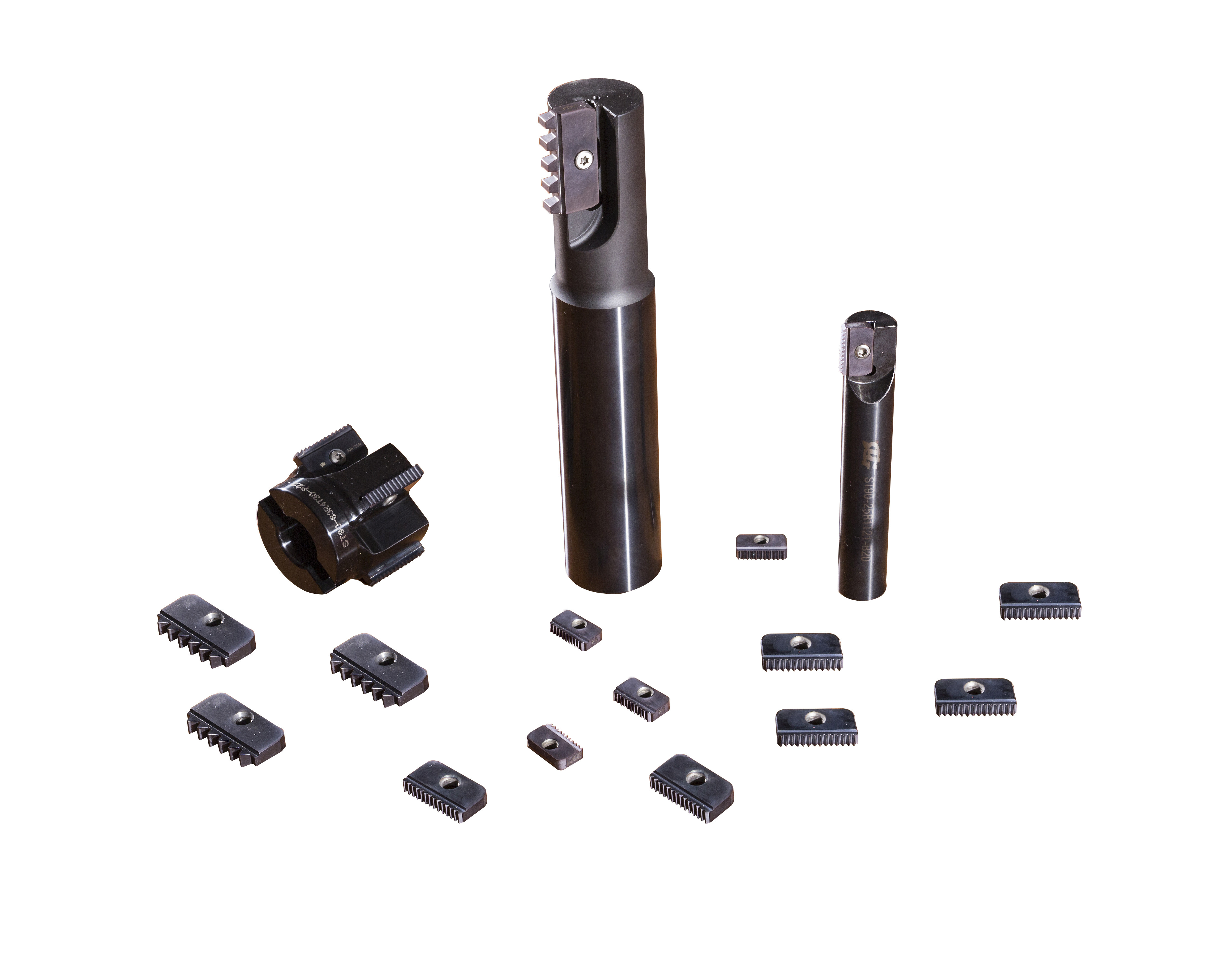

Thread Milling Cutting Tool

Product Introduction

Thread milling cutting tools demonstrate outstanding performance in solving threading processing problems in hard-to-machine materials and large components. CTRI develops complete series of thread milling cutting tools through independent research in carbide threading milling materials, surface treatment and structural parameters. Indexable threading milling cutting tools developed by CTRI are presently widely used in automobile industry, oil industry, and mines etc. Main thread types include: ISO, UN, W, BSPT, API, NPT,Tr, ACME, STACME, 3°/30°, 7°/45°, B.S.BUTTRESS,ABUTT, and also provide special customized products and service.





Shape I.C.  Screw pitch   L X Y Inventory
mm TPI Left Right LW20 GY30 LK30
External thread blade 3/8″ 0.5～1.5 48～16 16ERA60 16ELA60 16.5 0.6 0.8 ● ○ ○
1.75～3.0 14～8 16ERG60 16ELG60 16.5 1.1 1.5 ● ○ ○
0.5～3.0 48～8 16ERAG60 16ELAG60 16.5 1.1 1.5 ● ● ○
1/2″ 3.5～5.0 7～5 22ERN60 22ELN60 22 1.8 2.5 ● ○ ○
5/8″ 5.5～6.0 4.5～4 27ERQ60 27ELQ60 27.5 2.1 3.1 ● ○ ○

Internal thread blade 1/4″ 0.5～1.5 48～16 11NRA60 11NLA60 11 0.6 0.8 ● ○ ○
3/8″ 0.5～1.5 48～16 16NRA60 16NLA60 16.5 0.6 0.8 ● ○ ○
1.75～3.0 14～8 16NRG60 16NLG60 16.5 1.1 1.5 ● ○ ○
0.5～3.0 48～8 16NRAG60 16NLAG60 16.5 1.1 1.5 ● ● ○
1/2″ 3.5～5.0 7～5 22NRN60 22NLN60 22 1.8 2.5 ● ○ ○
5/8″ 5.5～6.0 4.5～4 27NRQ60 27NLQ60 27.5 1.8 2.7 ○ ○ ○
Remarks:●In stock ○Make-to-order
