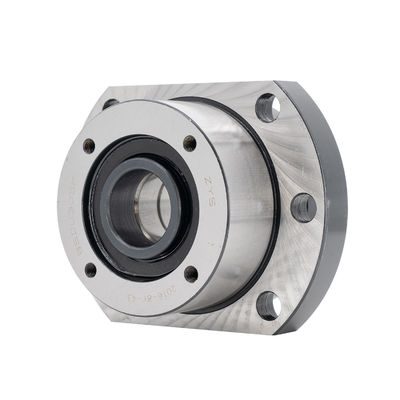

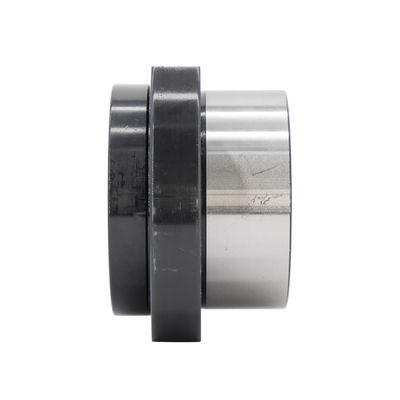

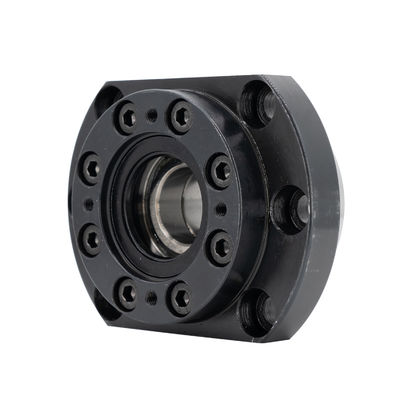

760203 ISO Metric Ball Screw Support Bearing 30mm-150mm OD High Torque

  • 760203 ISO Metric Ball Screw Support Bearing 30mm-150mm OD High Torque
  • 760203 ISO Metric Ball Screw Support Bearing 30mm-150mm OD High Torque
  • 760203 ISO Metric Ball Screw Support Bearing 30mm-150mm OD High Torque
Place of Origin China
Brand Name ZYS
Certification ISO9001, CE, SGS, 16949
Model Number 760203
Minimum Order Quantity One set
Price USD 1 for one set
Packaging Details Standard package for export
Delivery Time 10-15 days
Payment Terms L/C, T/T
Supply Ability 100000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

ISO Metric Ball Screw Bearing

,

760203 Ball Screw Bearing

,

760203 Ball Screw Support Bearing
Leave a Message
Product Description

ISO Metric ball screw bearing

Product Description

One Way Bearings are divided into open type and sealed type. The keyway can be machined on the inner ring and outer ring.

Freewheel clutch is mainly used in such applications as speed conversion, reversal preventing, intermittent movement and etc. Working principle is to use friction generated by wedge, spring and such compression elements to transmit torque.

Features of one way clutch bearings:
Small size, transmitting high torque, smooth combining, high slip combining, working without noise, etc.
Product Parameters

Technical parameters of one way clutch bearings:

Fitted outer raceway diameter: φ 30mm~φ 150mm
Fitted inner raceway diameter: φ 10mm~φ 120mm
Minimum mounting width: 15mm~30mm
Rated torque: 60N. M~4000N. M
Type Size Bearing series   Bearing loads Weight Drag torque
dynamic static
d TKN1) nmax D L b t C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
CSK..P 12 6201 9.3 10000 32 10     6.1 2.77 0.04 0.7
15 6202 17 8400 35 11     7.4 3.42 0.06 0.9
17 6203 30 7350 40 12     7.9 3.8 0.07 1.1
20 6204 50 6000 47 14     9.4 4.46 0.11 1.3
25 6205 85 5200 52 15     10.7 5.46 0.14 2
30 6206 138 4200 62 16     11.7 6.45 0.21 4.4
35 6207 175 3600 72 17     12.6 7.28 0.3 5.8
40 - 325 3000 80 22     15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 - 325 3000 80 22 10 3 15.54 12.25 0.5 7
CSK..P-2RS 12 - 9.3 10000 32 14     6.1 2.77 0.05 3
15 - 17 8400 35 16     7.4 3.42 0.07 4
17 - 30 7350 40 17     7.9 3.8 0.09 5.6
20 - 50 6000 47 19     9.4 4.46 0.145 6
25 - 85 5200 52 20     10.7 5.46 0.175 6
30 - 138 4200 62 21     11.7 6.45 0.27 7.5
35 - 175 3600 72 22     12.6 7.28 0.4 8.2
40 - 325 3000 80 27     15.54 12.25 0.6 10



CAEC Precision Bearing Quality Control and Assurance:

Austrian AICHELIN heat treatment equipment and long-life heat treatment process provide a strong guarantee for the continuous and reliable operation of bearings.
Zys Auto Parts Spindle Bearing Sealed Angular Contact Ball Bearing 70, 72, 718, 719 for Machine Tool Spindle, CNC Machine, Motor, Gas Turbine, Robot Industry

FAQ:

Q: Are you trading company or manufacturer?
A: CAEC is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.

Q: How do you control quality of bearing?
A: CAEC has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.

Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail  for more information.

Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.

Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.

Q: Is sample avaiable?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
