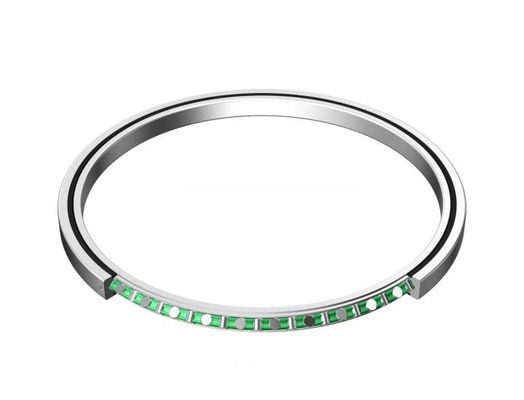

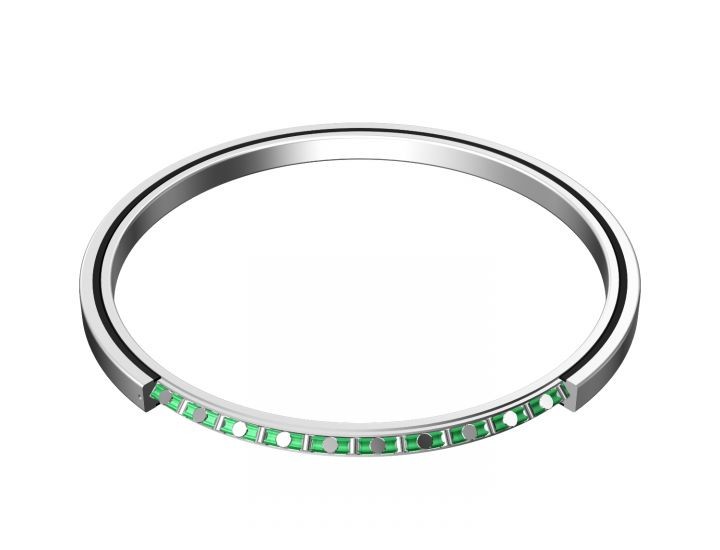

RA7008 Cylindrical Roller Ball Bearing 70mm Dia Cylindrical Ball Bearing
| Place of Origin | China |
|---|---|
| Brand Name | ZYS |
| Certification | ISO9001, CE, SGS, 16949 |
| Model Number | RA7008 |
| Minimum Order Quantity | One set |
| Price | USD 1 for one set |
| Packaging Details | Standard package for export |
| Delivery Time | 10-15 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | RA7008 Cylindrical Roller Ball Bearing,Cylindrical Roller Ball Bearing 70mm,RA7008 Cylindrical Ball Bearing |
||
|---|---|---|---|
Product Description
RA series cross cylindrical roller bearings
RA series cross cylindrical roller bearing is a compact form that reduces the thickness of the inner and outer rings of RB series to the limit. The crossed roller bearing is suitable for parts that require small load and compact design, such as the rotating parts of robots and manipulators. There are two types of RA series cross cylindrical roller bearings: RA (open type) and RA-UU (double end face seal) type.
| Model No. | Outer dimension (mm) | Installation dimension (mm) | Rated load (Kn) | Weight | |||||
| d | D | B | Rmin | da | Da | C | C0 | kg | |
| RA5008 | 50 | 66 | 8 | 0.5 | 53.5 | 60.5 | 5.1 | 7.19 | 0.08 |
| RA6008 | 60 | 76 | 8 | 0.5 | 63.5 | 70.5 | 5.68 | 8.68 | 0.09 |
| RA7008 | 70 | 86 | 8 | 0.5 | 73.5 | 80.5 | 5.98 | 9.8 | 0.1 |
| RA8008 | 80 | 96 | 8 | 0.5 | 83.5 | 90.5 | 6.37 | 11.3 | 0.11 |
| RA9008 | 90 | 106 | 8 | 0.5 | 93.5 | 100.5 | 6.76 | 12.4 | 0.12 |
| RA10008 | 100 | 116 | 8 | 0.5 | 103.5 | 110.5 | 7.15 | 13.9 | 0.14 |
| RA11008 | 110 | 126 | 8 | 0.5 | 113.5 | 120.5 | 7.45 | 15 | 0.15 |
| RA12008 | 120 | 136 | 8 | 0.5 | 123.5 | 130.5 | 7.84 | 16.5 | 0.17 |
| RA13008 | 130 | 146 | 8 | 0.5 | 133.5 | 140.5 | 7.94 | 17.6 | 0.18 |
| RA14008 | 140 | 156 | 8 | 0.5 | 143.5 | 150.5 | 8.33 | 19.1 | 0.19 |
| RA15008 | 150 | 166 | 8 | 0.5 | 153.5 | 160.5 | 8.82 | 20.6 | 0.2 |
| RA16013 | 160 | 186 | 13 | 0.8 | 165 | 179 | 23.3 | 44.9 | 0.59 |
| RA17013 | 170 | 196 | 13 | 0.8 | 175 | 189 | 23.5 | 46.5 | 0.64 |
| RA18013 | 180 | 206 | 13 | 0.8 | 185 | 199 | 24.5 | 49.8 | 0.68 |
| RA19013 | 190 | 216 | 13 | 0.8 | 195 | 209 | 24.9 | 51.5 | 0.69 |
| RA20013 | 200 | 226 | 13 | 0.8 | 205 | 219 | 25.8 | 54.7 | 0.71 |
CAEC Precision Bearing Quality Control and Assurance:
Austrian AICHELIN heat treatment equipment and long-life heat treatment process provide a strong guarantee for the continuous and reliable operation of bearings.
FAQ:
Q: Are you trading company or manufacturer?
A: CAEC is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.
Q: How do you control quality of bearing?
A: CAEC has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
Q: Is sample avaiable?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
