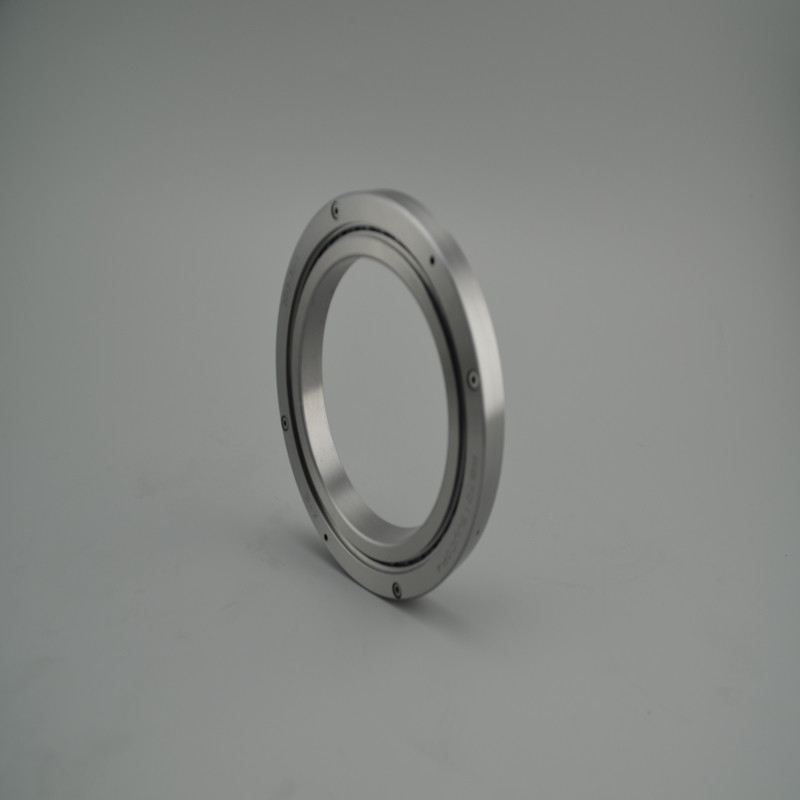

RA-C series cross cylindrical roller bearings
| Place of Origin | China |
|---|---|
| Brand Name | ZYS |
| Certification | ISO9001, CE, SGS, 16949 |
| Model Number | RA14008C |
| Minimum Order Quantity | One set |
| Price | USD 1 for one set |
| Packaging Details | Standard package for export |
| Delivery Time | 10-15 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
The main dimensions of RA-C series cross cylindrical roller bearings are the same as the RA series. Since this series of bearing is provided with a notch structure for the outer ring, the outer ring also has high rigidity and it can also be used for parts requiring high rotation accuracy of outer ring. There are two types of RA-C series cross cylindrical roller bearings: RAC (open type) and RAC-UU (double end face seal) type.
| Model No. | Outer dimension (mm) | Installation dimension (mm) | Rated load (Kn) | Weight | |||||
| d | D | B | Rmin | da | Da | C | C0 | kg | |
| RA5008C | 50 | 66 | 8 | 0.5 | 53.5 | 60.5 | 5.1 | 7.19 | 0.08 |
| RA6008C | 60 | 76 | 8 | 0.5 | 63.5 | 70.5 | 5.68 | 8.68 | 0.09 |
| RA7008C | 70 | 86 | 8 | 0.5 | 73.5 | 80.5 | 5.98 | 9.8 | 0.1 |
| RA8008C | 80 | 96 | 8 | 0.5 | 83.5 | 90.5 | 6.37 | 11.3 | 0.11 |
| RA9008C | 90 | 106 | 8 | 0.5 | 93.5 | 100.5 | 6.76 | 12.4 | 0.12 |
| RA10008C | 100 | 116 | 8 | 0.5 | 103.5 | 110.5 | 7.15 | 13.9 | 0.14 |
| RA11008C | 110 | 126 | 8 | 0.5 | 113.5 | 120.5 | 7.45 | 15 | 0.15 |
| RA12008C | 120 | 136 | 8 | 0.5 | 123.5 | 130.5 | 7.84 | 16.5 | 0.17 |
| RA13008C | 130 | 146 | 8 | 0.5 | 133.5 | 140.5 | 7.94 | 17.6 | 0.18 |
| RA14008C | 140 | 156 | 8 | 0.5 | 143.5 | 150.5 | 8.33 | 19.1 | 0.19 |
| RA15008C | 150 | 166 | 8 | 0.5 | 153.5 | 160.5 | 8.82 | 20.6 | 0.2 |
| RA16013C | 160 | 186 | 13 | 0.8 | 165 | 179 | 23.3 | 44.9 | 0.59 |
| RA17013C | 170 | 196 | 13 | 0.8 | 175 | 189 | 23.5 | 46.5 | 0.64 |
| RA18013C | 180 | 206 | 13 | 0.8 | 185 | 199 | 24.5 | 49.8 | 0.68 |
| RA19013C | 190 | 216 | 13 | 0.8 | 195 | 209 | 24.9 | 51.5 | 0.69 |
| RA20013C | 200 | 226 | 13 | 0.8 | 205 | 219 | 25.8 | 54.7 | 0.71 |
CAEC Precision Bearing Quality Control and Assurance:
Austrian AICHELIN heat treatment equipment and long-life heat treatment process provide a strong guarantee for the continuous and reliable operation of bearings.
FAQ:
Q: Are you trading company or manufacturer?
A: CAEC is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.
Q: How do you control quality of bearing?
A: CAEC has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
Q: Is sample avaiable?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
