Single Row Angular Contact Ball Bearing HS719 HS719/HQ1 HS70 HS70/HQ1 Series

  • Single Row Angular Contact Ball Bearing HS719 HS719/HQ1 HS70 HS70/HQ1 Series
  • Single Row Angular Contact Ball Bearing HS719 HS719/HQ1 HS70 HS70/HQ1 Series
Place of Origin China
Brand Name ZYS
Certification ISO9001, CE, SGS, 16949
Model Number HS71915 AC
Minimum Order Quantity One set
Price USD 1 for one set
Packaging Details Standard package for export
Delivery Time 10-15 days
Payment Terms L/C, T/T
Supply Ability 100000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. HS71915 AC Ball Bearings Angular Contact Ball Bearing
Inner Diameter 3-360mm Accuracy Grade ABEC 7 Or ABEC 9 P0, P6, P5, P4, P2
Sealing Type Sealed Or Not Rolling Body Ball Bearings
The Number Of Rows Single/Double Spherical Non-Aligning Bearings
Outer Dimension 8-480mm Application Machine Tool, Spindle, Motor, Separater
Advantages High Speed, High Precision,High Quality Use Automobile, Car, Motorcycle, Ball Screw,Engine,Gas
OEM Acceptable Delivery Period Within 7 Days
Other Contact Angle 15,25,40 Transport Package Cases And Pallets Or As Customer′s Requirment
Specification Customized For Angular Contact Ball Bearing Trademark CAEC, OEM, Neutral
Origin Luoyang, Henan, China HS Code 8482102000
Supply Ability 1000000 PCS/Year Contact Angle 40
Aligning Non-Aligning Bearing Separated Unseparated
Rows Number Single/Double Load Direction Axial And Radial
Material Bearing Steel Samples US$ 5/Piece
Customization Available | Customized Request
High Light

Single Row Angular Contact Ball Bearing

,

HS719 Angular Contact Ball Bearing

,

HS70 Angular Contact Ball Bearing
Leave a Message
Product Description

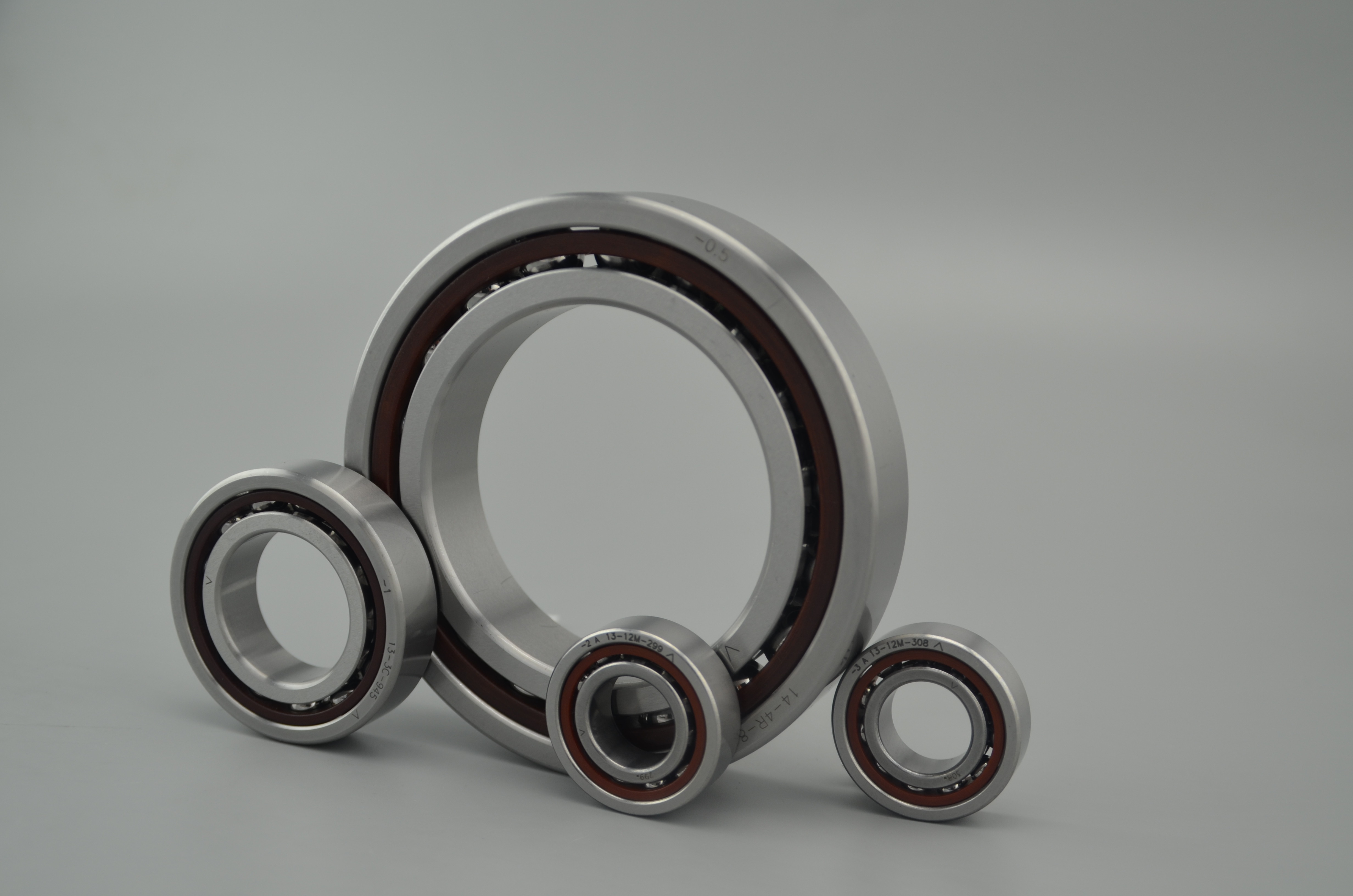

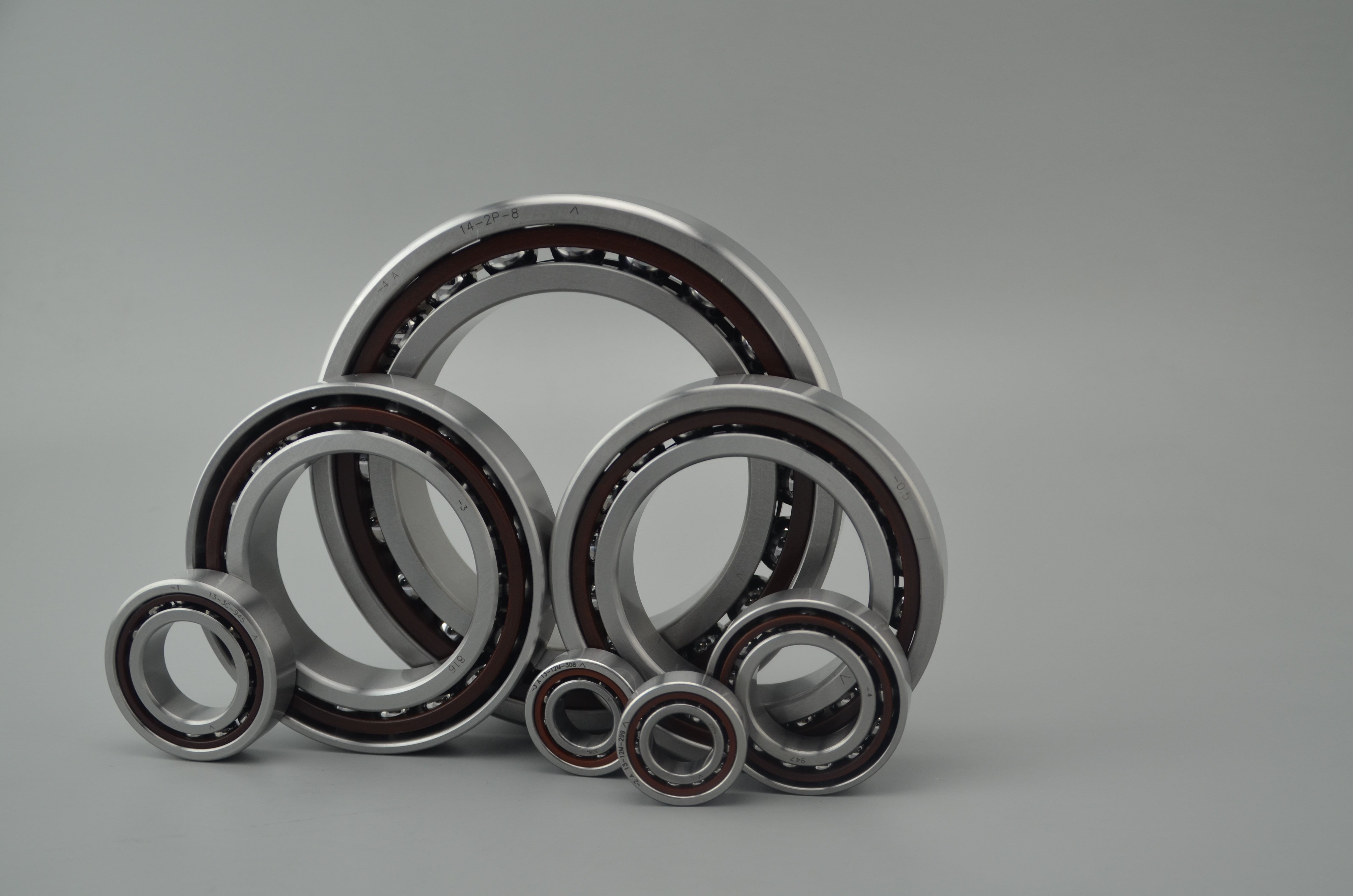

HS719, HS719/HQ1, HS70, HS70/HQ1 Series Single row angular contact ball bearing

Product Description

Bearing type: Super high speed angular contact ball bearing

Bearing series: HS719, HS719/HQ1, HS70, HS70/HQ1 Series

Inner diameter size range: 8-220mm

Performance characteristics: Ultra high speed; high stiffness; suitable for oil and gas lubrication or injection lubrication


Dimension table of angular contact ball bearing:

Bearing designation

 Boundary dimension Rated load Limit speed Weight
d D B rsmin r1smin a Cr Cor Grease Oil
mm KN r/min Kg
HS719/8 C 8 19 6 0.30 0.10 5 1.6 0.8 96000 150000 0.01
HS719/8 AC 8 19 6 0.30 0.10 6 1.5 0.7 86000 170000 0.01
HS71900 C 10 22 6 0.30 0.10 5 1.9 1.0 90000 150000 0.01
HS71900 AC 10 22 6 0.30 0.10 7 1.8 1.0 75000 120000 0.01
HS71901 C 12 24 6 0.30 0.10 5 2.0 1.1 80000 130000 0.01
HS71901 AC 12 24 6 0.30 0.10 7 1.9 1.1 67000 101000 0.01
HS71902 C 15 28 7 0.30 0.10 6 2.2 1.4 67000 101000 0.02
HS71902 AC 15 28 7 0.30 0.10 9 2.1 1.3 56000 84000 0.02
HS71903 C 17 30 7 0.30 0.10 7 2.3 1.5 60000 90000 0.02
HS71903 AC 17 30 7 0.30 0.10 9 2.2 1.4 50000 75000 0.02
HS71904 C 20 37 9 0.30 0.15 8 3.9 2.7 50000 75000 0.04
HS71904 AC 20 37 9 0.30 0.15 11 3.7 2.5 43000 64000 0.04
HS71905 C 25 42 9 0.30 0.15 9 4.2 3.2 43000 64000 0.05
HS71905 AC 25 42 9 0.30 0.15 12 3.9 3.0 36000 54000 0.05
HS71906 C 30 47 9 0.30 0.15 10 6.3 4.9 36000 54000 0.05
HS71906 AC 30 47 9 0.30 0.15 13 6.0 4.6 32000 48000 0.05
HS71907 C 35 55 10 0.60 0.15 11 6.9 6.0 32000 48000 0.08
HS71907 AC 35 55 10 0.60 0.15 15 6.5 5.6 26000 39000 0.08
HS71908 C 40 62 12 0.60 0.15 13 7.3 6.8 28000 43000 0.13
HS71908 AC 40 62 12 0.60 0.15 18 6.8 6.4 24000 38000 0.13
HS71909 C 45 68 12 0.60 0.15 14 10.0 9.3 24000 38000 0.15
HS71909AC 45 68 12 0.60 0.15 19 9.4 8.8 22000 36000 0.15
HS71910 C 50 72 12 0.60 0.15 14 10.3 10.1 22000 36000 0.15
HS71910 AC 50 72 12 0.60 0.15 20 9.7 9.5 20000 34000 0.15
HS71911 C 55 80 13 1.0 0.30 16 13.2 12.9 20000 34000 0.20
HS71911 AC 55 80 13 1.0 0.30 22 12.4 12.2 18000 30000 0.20
HS71912 C 60 85 13 1.0 0.30 16 13.6 13.9 19000 32000 0.22
HS71912 AC 60 85 13 1.0 0.30 23 12.8 13.2 17000 28000 0.22
HS71913 C 65 90 13 1.0 0.30 17 14.0 15.0 18000 30000 0.23
HS71913 AC 65 90 13 1.0 0.30 25 13.2 14.1 15000 24000 0.23
HS71914 C 70 100 16 1.0 0.30 19 18.3 19.9 16000 26000 0.38
HS71914 AC 70 100 16 1.0 0.30 28 17.3 18.7 14000 22000 0.38
HS71915 C 75 105 16 1.0 0.30 20 18.8 21.2 16000 26000 0.41
HS71915 AC 75 105 16 1.0 0.30 29 17.7 20.0 13000 20000 0.41
HS71916 C 80 110 16 1.0 0.30 21 21.0 23.9 15000 24000 0.42
HS71916 AC 80 110 16 1.0 0.30 30 19.8 22.6 13000 20000 0.42
HS71917 C 85 120 18 1.10 0.60 23 21.9 26.2 14000 22000 0.62
HS71917 AC 85 120 18 1.10 0.60 33 20.6 24.8 12000 19000 0.62
HS71918 C 90 125 18 1.10 0.60 23 23.9 28.6 13000 20000 0.64
HS71918AC 90 125 18 1.10 0.60 34 22.5 27.0 11000 18000 0.64
HS71919 C 95 130 18 1.10 0.60 24 24.5 30.3 12000 19000 0.67
HS71919 AC 95 130 18 1.10 0.60 35 23.1 28.6 10000 17000 0.67
HS71920 C 100 140 20 1.10 0.60 26 29.3 36.3 11000 18000 0.92
HS71920 AC 100 140 20 1.10 0.60 38 27.6 34.2 9500 16000 0.92
HS71921 C 105 145 20 1.10 0.60 27 30.1 38.4 11000 18000 0.96
HS71921 AC 105 145 20 1.10 0.60 39 28.4 36.2 9000 15000 0.96
HS71922 C 110 150 20 1.10 0.60 27 34.9 43.8 10000 17000 0.98
HS71922 AC 110 150 20 1.10 0.60 40 32.9 41.4 8500 14000 0.98
HS71924 C 120 165 22 1.10 0.60 30 36.6 49.0 9000 15000 1.37
HS71924 AC 120 165 22 1.10 0.60 44 34.5 46.2 8000 13000 1.37
HS71926 C 130 180 24 1.50 0.60 33 41.1 55.9 8000 13000 1.77
HS71926 AC 130 180 24 1.50 0.60 48 38.6 52.6 7000 11000 1.77
HS71928 C 140 190 24 1.50 0.60 34 41.9 60.0 7000 11000 1.88
HS71928 AC 140 190 24 1.50 0.60 50 39.4 55.6 6700 10000 1.88
HS71930 C 150 210 28 2.00 1.0 38 47.5 71.1 6700 10000 2.94
HS71930 AC 150 210 28 2.00 1.0 56 44.7 67.0 6000 9000 2.94
HS71932 C 160 220 28 2.00 1.0 39 50.1 74.8 6000 9000 3.11
HS71932 AC 160 220 28 2.00 1.0 58 47.1 70.5 5600 8500 3.11
HS71934 C 170 230 28 2.00 1.0 41 57.7 86.8 5600 8500 3.22
HS71934 AC 170 230 28 2.00 1.0 61 54.3 81.8 5000 7500 3.22
HS71936 C 180 250 33 2.00 1.0 45 59.2 93.1 5000 7500 4.93
HS71936 AC 180 250 33 2.00 1.0 67 55.7 87.7 4800 7200 4.93
HS71938 C 190 260 33 2.00 1.0 47 75.0 116.1 4800 7200 5.03
HS71938 AC 190 260 33 2.00 1.0 69 70.6 109.4 4300 6300 5.03
HS71940 C 200 280 38 2.00 1.0 51 75.0 120.7 4500 6700 7.26
HS71940 AC 200 280 38 2.00 1.0 75 70.5 113.7 4000 6000 7.26
HS71944 C 220 300 38 2.00 1.0 54 84.6 139.6 4300 6300 7.77
HS71944 AC 220 300 38 2.00 1.0 80 79.6 131.5 3800 5700 7.77


Performance characteristics of spindle bearing: Ultra high speed, high stiffness, high carrying capacity, good running performance, easy mounting of universally matchable bearings, suitable for oil and gas lubrication or injection lubrication.



Applications of spindle bearing: CAEC super high speed single row angular contact ball bearings might be used in the fields of machine tools, textiles, automobiles, railways, metallurgy, chemicals, electronics, Industrial pumps, Compressors, Material Handling, Electric motors.

Product features of angular contact ball bearing:

1. High-quality bearing materials: CAEC adopts ultra-clean steel, high purity high-carbon chromium bearing steel GCr15 from a well-known domestic manufacturer, which can extend the life of the bearing by 80%.

2. High quality bearing rolling elements: The bearing balls provided by CAEC have good product performance to ensure the optimal bearing configuration and smooth operation at high speed and quiet. CAEC has a complete process production line, from powder ultrasonic pre-dispersion, mixture mixing, spray drying granulation, near-net-size molding, cold isostatic pressing, GPS-HIP combined sintering process, high-precision grinding and processing, total quality inspection to packaging. CAEC has a comprehensive quality control system, quality identification of raw materials and auxiliary materials, quality control of mixed materials, quality control of pressing and sintering, and quality control of finished products.

3. More suitable bearing cage: CAEC mostly adopts bakelite cage, which can more effectively reduce the friction between metal and bearing balls and extend the life of the bearing. CAEC can also choose more suitable bearing cage materials according to customer requirements and bearing applications.

4. Advanced lubrication technology: CAEC uses high performance grease and advanced lubrication technology to extend bearing life and improve bearing performance.

5. Ultra finished raceways:CAEC uses special honing to minimize noise, improve lubricant dispersion and increase bearing life.

6. Contact angle: CAEC ultra high speed precision bearings usually use 15°and 25° contact angles.

7. Accuracy grade: CAEC can offer the high precision angular contact ball bearings with P2, P4A, P4 grade.


CAEC Precision Bearing Quality Control and Assurance:

Austrian AICHELIN heat treatment equipment and long-life heat treatment process provide a strong guarantee for the continuous and reliable operation of bearings.
Zys Auto Parts Spindle Bearing Sealed Angular Contact Ball Bearing 70, 72, 718, 719 for Machine Tool Spindle, CNC Machine, Motor, Gas Turbine, Robot Industry

FAQ:

Q: Are you trading company or manufacturer?
A: CAEC is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.

Q: How do you control quality of bearing?
A: CAEC has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.

Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail  for more information.

Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.

Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.

Q: Is sample avaiable?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
