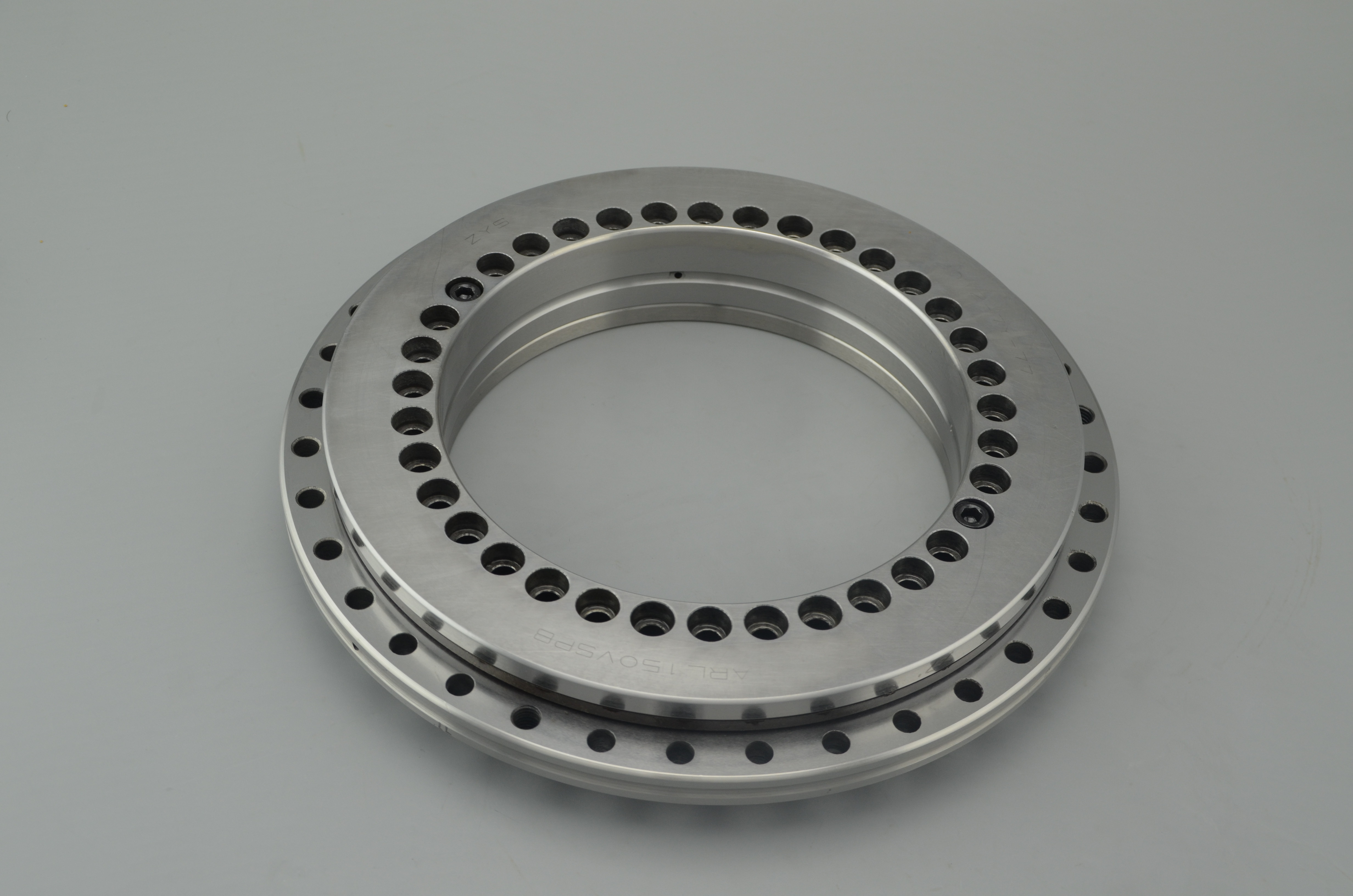

YRTSM Rotary Table Bearing Roller Ball Bearing YRTSM395 38-1080KN

  • YRTSM Rotary Table Bearing Roller Ball Bearing YRTSM395 38-1080KN
Place of Origin China
Brand Name ZYS
Certification ISO9001, ISO14001, OHSAS18001
Model Number YRTSM395
Minimum Order Quantity One set
Price USD 1 for one set
Packaging Details Standard package for export
Delivery Time 15-20 days
Supply Ability 20000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. YRTSM395 Type No Gear
Application 1 Machine Tool Turntable Application 2 Grinding Head
Application 3 Testing Device Dimension Range 50-1030mm
Limiting Speed 440-35r/Min Dynamic Rated Load 38-1080kn
Static Rated Load 265-1860kn Transport Package Cases And Pallets Or As Customer′s Requirment
Specification Customized Trademark CAEC
Origin Luoyang, Henan, China HS Code 8482102000
Supply Ability 200/Month Standard Or Nonstandard Standard
Feature High Speed, Corrosion-Resistant, Heat-Resistant Sealing Gland Non-Seal
Rolling-Element Number Single-Row Roller Type Spherical Raceway
Material Bearing Steel Customization Available | Customized Request
High Light

YRTSM Rotary Table Bearing

,

YRTSM Roller Ball Bearing

,

Roller Ball Bearing YRTSM395
Leave a Message
Product Description

YRTSM series rotary table bearing



►Product description of YRTSM bearing:

Compared with YRT series rotary table bearing, YRTSM series bearing is one kind of high-speed turnable bearing. The limit speed of YRTSM bearing is much higher than that of YRT bearings while the friction torque of YRTSM series rotary table bearing is lower, more even and stable. YRTSM series rotary table bearings can carry combined axial and radial loads, and have the advantages of high tilt rigidity and high precision. Therefore, it is widely used in high-precision CNC equipments,and measurement equipment.

YRTSM series rotary table bearing is the measuring system bearings with SRM measuring electronics for incremental, magneto-resistive angular measurement. YRTSM measuring system bearings allow accurate and reliable angle measurement directly on the machine tool spindle, thereby achieving extremely high machining quality and high machine tool utilization.



CAEC can offer YRT series, YRTS series, ZKLDF series, YRTM series, YRTSM series rotary table bearings. About the performance comparison of YRT, YRTS and ZKLDF series bearings with the same size, the limit speed of ZKLDF, YRTS, YRT series bearings decrease in turn while the overturning rigidity of YRTS, YRT and ZKLDF series bearings decrease sequentially. YRTM or YRTSM rotary table bearings add a set of angular displacement monitoring system on the basis of YRT or YRTS series bearings, to overcome the defect of open-loop control of diagonal displacement control, and realize closed-loop control of rotary table or indexing plate, greatly improving the positioning accuracy of angular displacement.


►Product structure of Slewing Ring Bearing:
Thrust / radial cylindrical roller bearings YRT and YRTS series are composed of two thrust roller bearings and one radial cylindrical roller bearing. Due to the special design of the internal structure of YRTS series bearing, higher limit speed can be achieved. Thrust angular contact ball bearings ZKLDF series consist of an integral outer ring, two inner rings and two sets of steel balls and cage assemblies. Its contact angle is 60, and it is especially for the conditions with high requirements on high speed, high axial and radial loads and overturning moment.

►Product Features of Rotary Table Bearing:
Turntable bearings are ready-to-install high-precision turntable bearings, suitable for occasions with high precision requirements and combined load. They can withstand radial loads, bidirectional axial loads and overturning moments with negative clearance. Turntable bearings have the characteristics of high precision, high rigidity and high load capacity. In order to facilitate transportation and installation, screw holes are opened on the inner ring and the outer ring, and the entire set of bearings is fastened with positioning screws. The bearings are preloaded at the factory, and there is no need to adjust the clearance for installation.



►Technical parameters of YRTSM​ series rotary table bearing:

Bearing model Outer dimension (mm) Limit speed Rotation accuracy Weight
d D H H1 H2 d1 d2 dn dm R/min   Kg
YRTSM200 200 300 45 30 15 15 274 271.2 215 1150 4 9.7
YRTSM260 260 385 55 36.5 18.5 18 345 343.8 280 900 6 18.3
YRTSM325 325 450 60 40 20 20 415 412.6 342 750 6 25
YRTSM395 395 525 65 42.5 22.5 20 486 485.5 415 650 6 33
YRTSM460 460 600 70 46 24 22 560 557.7 482 550 6 45


►CEAC manufacturing capacity of cross roller bearings:



Made in China Slewing Ring Bearing Yrt Rotary Table Bearing Yrt260 Used for Machine Tool TurntableMade in China Slewing Ring Bearing Yrt Rotary Table Bearing Yrt260 Used for Machine Tool Turntable



►Application of rotary table bearings:



Made in China Slewing Ring Bearing Yrt Rotary Table Bearing Yrt260 Used for Machine Tool Turntable



►Package of YRTSM series bearing:

Made in China Slewing Ring Bearing Yrt Rotary Table Bearing Yrt260 Used for Machine Tool Turntable

FAQ

Q: Are you trading company or manufacturer?
A: CAEC is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.

Q: How do you control quality of bearing?
A: CAEC has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.

Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.

Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.

Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.

Q: Is sample avaiable?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
