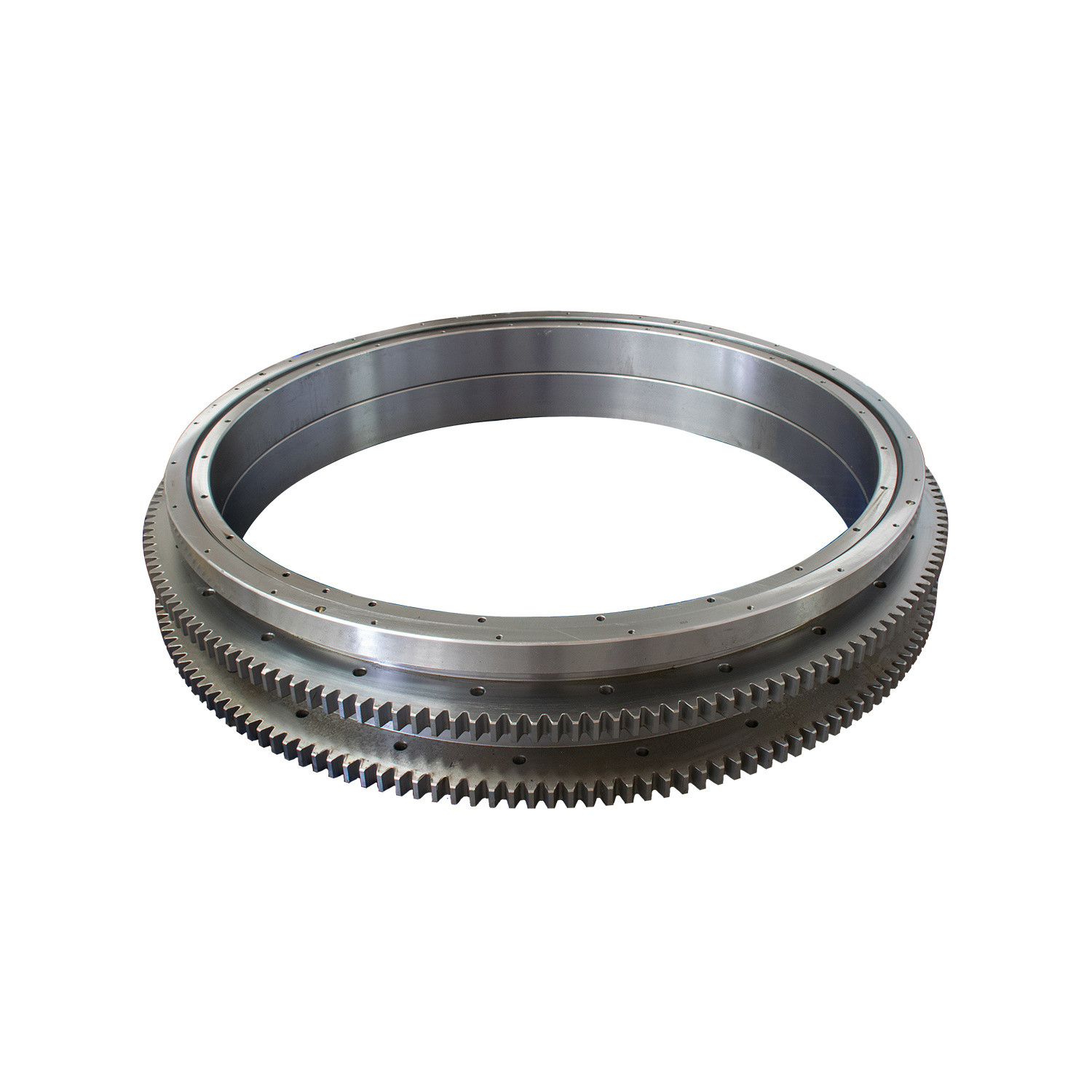

42CrMo Single Row Ball Slewing Bearing Axial And Radial Load

  • 42CrMo Single Row Ball Slewing Bearing Axial And Radial Load
Place of Origin China
Brand Name ZYS
Certification ISO9001, ISO14001, OHSAS18001
Model Number 110.28.800
Minimum Order Quantity One set
Price USD 1 for one set
Packaging Details Standard package for export
Delivery Time 20-30 days
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. Slewing Bearing 110.28.800 Separated Separated
Feature High Dynamic Load Breadth 110mm
Rated Load Cr:1220kn Cor:3220kn Weight 360kg
Inner Diameter 1000mm Product Name 1 Single Row Four Point Contact Ball Slewing Bearing
Product Name 2 Single Row Cross Roller Slewing Bearing Product Name 3 Double Row Different Ball Diameter Slewing Bearing
Product Name 4 Three Row Cylindrical Roller Slewing Bearing Product Name 5 Roller/Ball Combination Slewing Bearings
Bearing Type Without Gear/with External Gear/with Internal Gea Application 1 Hoisting, Mechanical Handling And General Mechanic
Application 2 Deck Hoisting, Mining And Material Handling Application 3 Offshore Technology And General Mechanical Enginee
Material Of Slewing Ring 42CrMo Transport Package Cases And Pallets For Slewing Bearing
Specification Dimension For Slewing Bearing Trademark ZYS
Origin Luoyang, Henan, China Supply Ability 4000/Month
Rolling Body Roller Bearings The Number Of Rows Single
Outer Dimension 1250mm Material Stainless Steel
Spherical Non-Aligning Bearings Load Direction Axial And Radial Load
Customization Available | Customized Request
High Light

42CrMo Single Row Ball Slewing Bearing

,

Axial Single Row Ball Slewing Bearing

,

Radial Load Slewing Bearing
Leave a Message
Product Description
Single row Cross Roller Slewing Bearing

►Product description of slewing ring bearing:

This kind of bearings can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.



CAEC slewing bearings can be divided into the following types according to their structures as single row four point contact ball slewing bearing, single row cross roller slewing bearing, double row different ball diameter slewing bearing, three row cylindrical roller slewing bearing and roller/ball combination slewing bearing. These types of bearings can be further divided into bearings without gears, bearings with external gears and bearings with internal gears.


►Types of Slewing bearing:
Single row four point contact ball slewing bearing
This kind of slewing bearings can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments. Applications of this kind of bearings are hoisting, mechanical handling and general mechanical engineering etc.

Large Size Bearing/Turntable Bearing/Internal Gear Slewing Ring Bearing/Yrt Bearing/Cross Roller Bearing for Deck Crane, Wind Power and Machinery Construction



Single row cross roller slewing bearing
This kind of bearings can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.

Large Size Bearing/Turntable Bearing/Internal Gear Slewing Ring Bearing/Yrt Bearing/Cross Roller Bearing for Deck Crane, Wind Power and Machinery Construction



Double row different ball diameter slewing bearing
     This kind of bearings can support high static loads with simple structures. They are mainly used in situations with variational load position and direction and continuously rotating. Main applications of this kind of bearings are deck hoisting, mining and material handling etc.

Large Size Bearing/Turntable Bearing/Internal Gear Slewing Ring Bearing/Yrt Bearing/Cross Roller Bearing for Deck Crane, Wind Power and Machinery Construction



Three row cylindrical roller slewing bearing
This kind of bearings has high load carrying capacity. Under same loads, this kind of bearings has much smaller diameters which can make the installation much compact, as different kinds of loads are supported by different races and rollers. Main applications of this kind of bearings are hoisting, mechanical handling, mining and materials handling, offshore technology and general mechanical engineering etc.

Large Size Bearing/Turntable Bearing/Internal Gear Slewing Ring Bearing/Yrt Bearing/Cross Roller Bearing for Deck Crane, Wind Power and Machinery Construction



Roller/ball combination slewing bearings
This kind of bearings can support high axial load and low tilting moments. Usually they are large diameter slewing bearings. Applications of this kind of bearings are mining and materials handling etc.

Large Size Bearing/Turntable Bearing/Internal Gear Slewing Ring Bearing/Yrt Bearing/Cross Roller Bearing for Deck Crane, Wind Power and Machinery Construction


►Materials of slewing bearing:
1. Material of slewing ring: 42CrMo is generally used for CAEC slewing ring with surface quenching treatment of the raceway. Other kinds of surface quenched steel can also be used according to customer specification and operating conditions.
2. Material of rolling element: The material of rolling elements in CAEC bearing is GCr15 or GCr15SiMn steel.
3. Material of cage: Various types of cage are used in CAEC slewing bearing, which can be divided into integrated cage, segmented cage, spacer and etc. 20 steel or ZL102 cast aluminum alloy is used for integrated cage and segmented cage. For spacer,the material is polyamide 1010 resin, ZL102 aluminum bronze, QA110-3-1.5 aluminum bronze or GRPA66-25 nylon. 4. Material of sealing ring: The sealing ring is made of NBR.



►Technical parameters of slewing bearing:

Basic Code Dimensions Gear External gear Inner gear Weight
Without gear External gear Inner gear D d T D1 d1 n dn n1 H h b m Da z da z
110.25.500 111.25..500 113.25..500 602 398 75 566 434 20 18 4 65 10 60 5 629 123 367 74 80
112.25..500 114.25..500 6 628.8 102 368.4 62
110.25.560 111.25.560 113.25.560 662 458 75 626 494 20 18 4 65 10 60 5 689 135 427 86 90
112.25.560 114.25.560 6 688.8 112 428.4 72
110.25.630 111.25.630 113.25.630 732 528 75 696 564 24 18 4 65 10 60 6 772.8 126 494.4 83 100
112.25.630 114.25.630 8 774.4 94 491.2 62
110.25.710 111.25.710 113.25.710 812 608 75 776 644 24 18 4 65 10 60 6 850.8 139 572.4 96 110
112.25.710 114.25.710 8 854.4 104 571.2 72
110.28.800 111.28.800 113.28.800 922 678 82 878 722 30 22 6 72 10 65 8 966.4 118 635.2 80 170
112.28.800 114.28.800 10 968 94 634 64
110.28.900 111.28.900 113.28.900 1022 778 82 978 822 30 22 6 72 10 65 8 1062.4 130 739.2 93 190
112.28.900 114.28.900 10 1068 104 734 74
110.28.1000 111.28.1000 113.28.1000 1122 878 82 1078 922 36 22 6 72 10 65 10 1188 116 824 83 210
112.28.1000 114.28.1000 12 1185.6 96 820.8 69
110.28.1120 111.28.1120 113.28.1120 1242 998 82 1198 1042 36 22 6 72 10 65 10 1298 127 944 95 230
112.28.1120 114.28.1120 12 1305.6 106 940.8 79
110.32.1250 111.32.1250 113.32.1250 1390 1110 91 1337 1163 40 26 5 81 10 75 12 1449.6 118 1048.8 88 350
112.32.1250 114.32.1250 14 1453.2 101 1041.6 75
110.32.1400 111.32.1400 113.32.1400 1540 1260 91 1487 1313 40 26 5 81 10 75 12 1605.6 131 1192.8 100 400
112.32.1400 114.32.1400 14 1607.2 112 1195.6 86
110.32.1600 111.32.1600 113.32.1600 1740 1460 91 1687 1513 45 26 5 81 10 75 14 1817.2 127 1391.6 100 440
112.32.1600 114.32.1600 16 1820.8 111 1382.4 87
110.32.1800 111.32.1800 113.32.1800 1940 1660 91 1887 1713 45 26 5 81 10 75 14 2013.2 141 1573.6 113 500
112.32.1800 114.32.1800 16 2012.8 123 1574.4 99
110.40.2000 111.40.2000 113.40.2000 2178 1825 112 2110 1891 48 33 8 100 12 90 16 2268.8 139 1734.4 109 900
112.40.2000 114.40.2000 18 2264.4 123 1735.2 97
110.40.2240 111.40.2240 114.40.2240 2418 2065 112 2350 2131 48 33 8 100 12 90 16 2492.8 153 1990.4 125 1000
112.40.2240 113.40.2240 18 2498.4 136 1987.2 111
110.40.2500 111.40.2500 113.40.2500 2678 2325 112 2610 2391 56 33 8 100 12 90 18 2768.4 151 2239.2 125 1095
112.40.2500 114.40.2500 20 2776 136 2228 112
110.40.2800 114.40.2800 113.40.2800 2978 2625 112 2910 2691 56 33 8 100 12 90 18 3074.4 168 2527.2 141 1250
112.40.2800 114.40.2800 20 3076 151 2528 127
110.50.3150 111.50.3150 114.50.3150 3376 2922 134 3286 3014 56 45 8 122 12 110 20 3476 171 2828 142 2150
112.50.3150 113.50.3150 22 3471.6 155 2824.8 129
110.50.3550 111.50.3550 113.50.3550 3776 3322 134 3686 3414 56 45 8 122 12 110 20 3876 191 3228 162 2470
112.50.3550 114.50.3550 22 3889.6 174 3220.8 147
110.50.4000 111.50.4000 113.50.4000 4226 3772 134 4136 3864 60 45 10 122 12 110 22 4329.6 194 3660.8 167 2800
112.50.4000 114.50.4000 25 4345 171 3660 147
110.50.4500 111.50.4500 113.50.4500 4726 4272 134 4636 4364 60 45 10 122 12 110 22 4835.6 217 4166.8 190 3100
112.50.4500 114.50.4500 25 4845 191 4160 167

►Manufacturing capacity of slewing bearing ring:

Large Size Bearing/Turntable Bearing/Internal Gear Slewing Ring Bearing/Yrt Bearing/Cross Roller Bearing for Deck Crane, Wind Power and Machinery ConstructionLarge Size Bearing/Turntable Bearing/Internal Gear Slewing Ring Bearing/Yrt Bearing/Cross Roller Bearing for Deck Crane, Wind Power and Machinery Construction



►Package of slewing bearing ring:

Large Size Bearing/Turntable Bearing/Internal Gear Slewing Ring Bearing/Yrt Bearing/Cross Roller Bearing for Deck Crane, Wind Power and Machinery Construction

FAQ

Q: Are you trading company or manufacturer?
A: CAEC is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.

Q: How do you control quality of bearing?
A: CAEC has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.

Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail  for more information.

Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.

Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.

Q: Is sample avaiable?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
