9Cr18 9Cr18Mo Stainless Steel Bearing Ball G3 G5 G10 G25 G40
| Place of Origin | China |
|---|---|
| Brand Name | ZYS |
| Certification | ISO9001, ISO14001, OHSAS18001 |
| Model Number | 2.778mm |
| Minimum Order Quantity | 100 pcs |
| Price | USD 1/piece |
| Packaging Details | Standard package for export |
| Delivery Time | 10-15 days |
| Supply Ability | 100000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | 2.788mm | Shape | Polish Round Bearing Steel Ball |
|---|---|---|---|
| Grade | G10-G1000 Chrome Steel Ball | Application | Bearing, Solid Bicycle, Motor, Machinery, Tools |
| Product Name | High-Carbon Stainless Chrome Steel Ball | Structure | Solid Chrome Steel Ball |
| Size Range | 0.5mm-180mm Chrome Steel Ball | Accuracy Grade | G3 G5 G10 G25 G40 |
| Ball Material | Steel Ball, Ceramic Ball, Si3n4 ,Zro2 | Color | White, Black |
| Compressive Strength | Above 3500 | Use Upper Limit Temperature | 800-1250 |
| Vickers Hardness | 1400~1800 | Density | 3.19~3.3 |
| Use | Light Duty Bearing,Conveyer Belt, Bicycle | Transport Package | Cases And Pallets Or As Customer′s Requirment |
| Specification | 38.1-180mm | Trademark | CAEC/OEM |
| Origin | Luoyang, Henan, China | Supply Ability | 400000/Month |
| Customized | Non-Customized | Certification | CE, ISO |
| Standard Parts | Yes | Universal | Yes |
| Material | Galvanized Steel, Plastic, Brass Steel And Others | Hardness | 58-65 HRC Bearing Ball |
| Samples | US$ 0.1/Piece | Customization | Available | Customized Request |
| High Light | 9Cr18Mo Stainless Steel Bearing Ball,9Cr18 Stainless Steel Bearing Ball,Stainless Steel Bearing Ball G3 |
||
Product Description

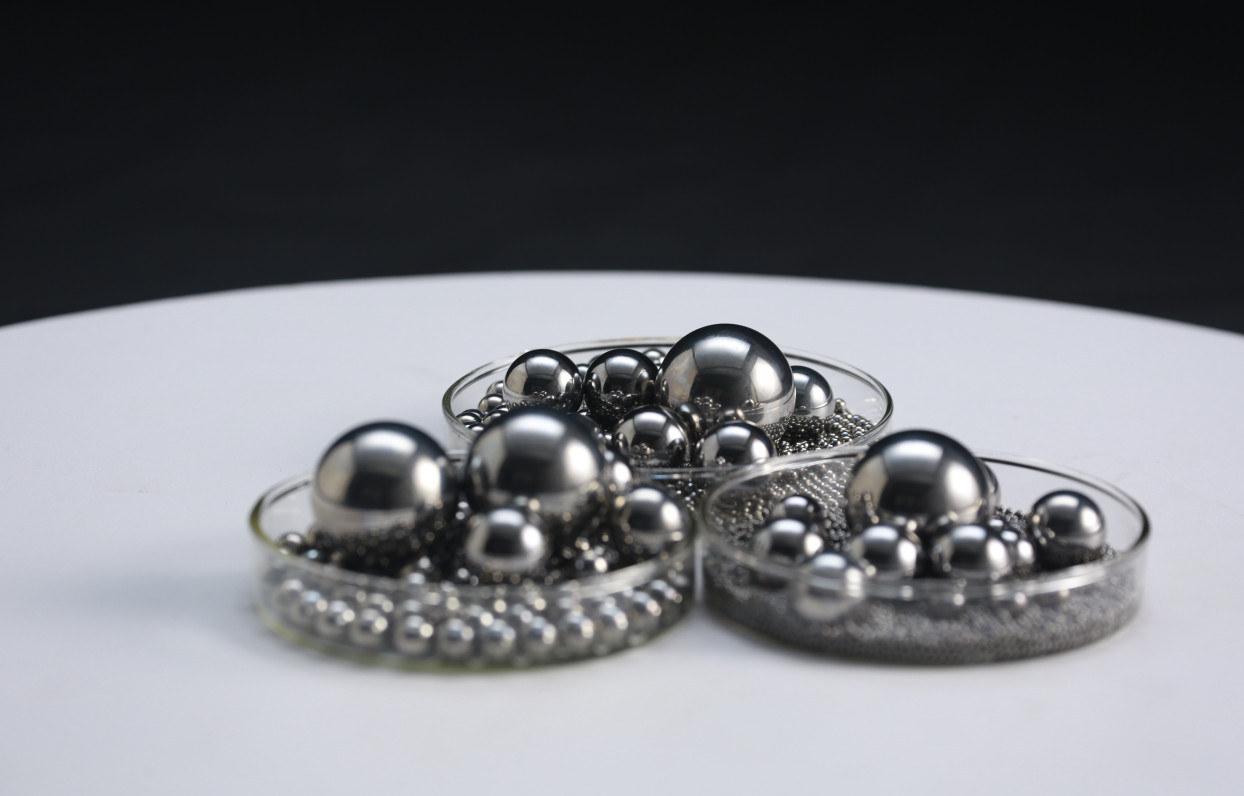

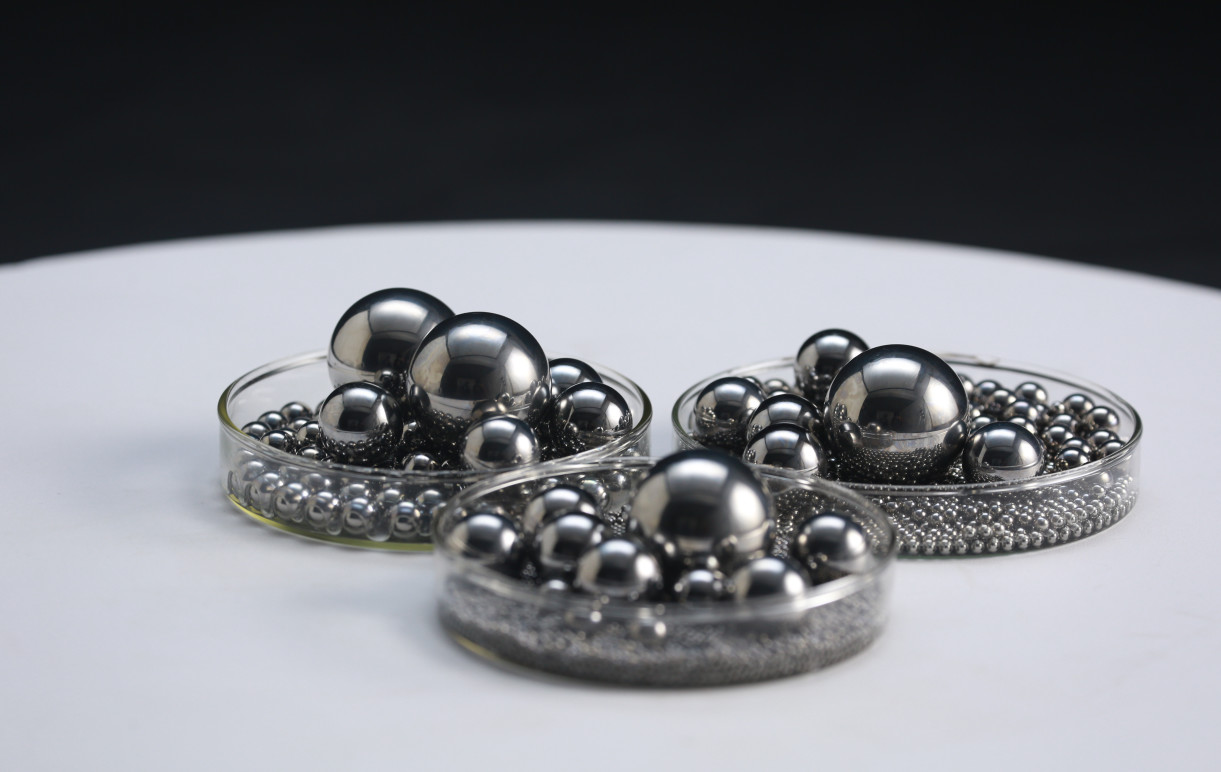

9Cr18, 9Cr18Mo stainless steel ball
9Cr18 is high carbon and high chromium martensite stainless bearing steel. After quenching, it has high hardness and wear resistance, high dimensional stability, generally used after quenching and tempering.
9Cr18Mo has the same characteristics and application as 9Cr18 steel, but has higher hardness and stability after quenching. Molybdenum can increase the passivation effect of stainless steel.
| 9Cr18, 9Cr18Mo material chemical composition | ||||||||||
| Steel grade | Carbon | Manganese | Silicon | Chromium | Nickel | Copper | Sulfur | Phosphorus | Molybdenum | |
| Stainless steel 9Cr18 | 0.90/1.00 | ≤0.70 | ≤0.80 | 17.0/19.0 | ≤0.60 | ≤0.030 | ≤0.030 | |||
| Stainless steel 9Cr18Mo | 1.00/1.10 | ≤0.80 | ≤0.50 | 16.0/18.0 | ≤0.030 | ≤0.030 | 0.40-0.70 | |||
| 9Cr18, 9Cr18Mo material mechanical properties | |||||
| Heat treatment | σb Mpa | σs % | Ψ% | HRC/HBW | |
| Quenching and tempering state | --- | --- | --- | ≥58 HRC | |
| Annealing state | 755 | 14 | 27.5 | 230-240 HBW | |
| 9Cr18, 9Cr18Mo High carbon chromium stainless steel ball specifications | |||||
| Nominal diameter of steel ball | Nominal diameter of steel ball | Nominal diameter of steel ball | |||
| mm | in | mm | in | mm | in |
| 0.5 | 0.6 | 0.794 | 1/32 | ||
| 0.8 | 1 | 1.588 | 1/16 | ||
| 2 | 2.381 | 3/32 | 2.5 | ||
| 2.778 | 7/64 | 3 | 3.175 | 1/8 | |
| 3.5 | 3.969 | 5/32 | 4 | ||
| 4.5 | 4.762 | 3/16 | 5 | ||
| 5.159 | 13/64 | 5.5 | 5.953 | 15/64 | |
| 6 | 6.35 | 1/4 | 6.5 | ||
| 6.747 | 17/64 | 7 | 7.144 | 9/32 | |
| 7.5 | 7.938 | 5/16 | 8 | ||
| 8.5 | 9 | 9.525 | 3/8 | ||
| 10 | 11.112 | 7/16 | 12 | ||
| 12.303 | 31/64 | 12.7 | 1/2 | 13.494 | 17/32 |
| 14.288 | 9/16 | 15.081 | 19/32 | 15.875 | 5/8 |
| 16.669 | 21/32 | 17.462 | 11/16 | 18.256 | 23/32 |
| 19.05 | 3/4 | 20.638 | 13/16 | 22.225 | 7/8 |

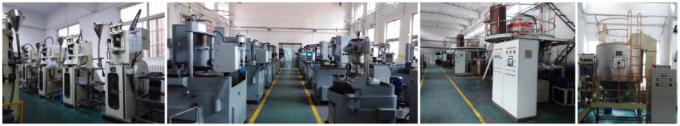

►Manufacturing capacity of 9Cr18, 9Cr18Mo stainless steel ball:
►Exhibition of 9Cr18, 9Cr18Mo stainless steel ball:
