Angular Contact Bearing Spare Parts Plastic Bearing Cage 7012C/AC

  • Angular Contact Bearing Spare Parts Plastic Bearing Cage 7012C/AC
  • Angular Contact Bearing Spare Parts Plastic Bearing Cage 7012C/AC
  • Angular Contact Bearing Spare Parts Plastic Bearing Cage 7012C/AC
  • Angular Contact Bearing Spare Parts Plastic Bearing Cage 7012C/AC
Place of Origin China
Brand Name ZYS
Certification ISO9001, ISO14001, OHSAS18001
Model Number 7012C/AC
Minimum Order Quantity 100 pcs
Price USD 1/piece
Packaging Details Standard package for export
Delivery Time 10-15 days
Supply Ability 100000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. 7012C/AC Application Bearing
Product Name Angular Contact Ball Bearing Plastic Cage Origin Luoyang, Henan, China
Supply Ability 400000/Month Customized Non-Customized
Certification CE, ISO Standard Parts Yes
Universal Yes
High Light

Angular Contact Bearing Spare Parts

,

7012C Plastic Bearing Cage

,

7012AC Plastic Bearing Cage
Leave a Message
Product Description

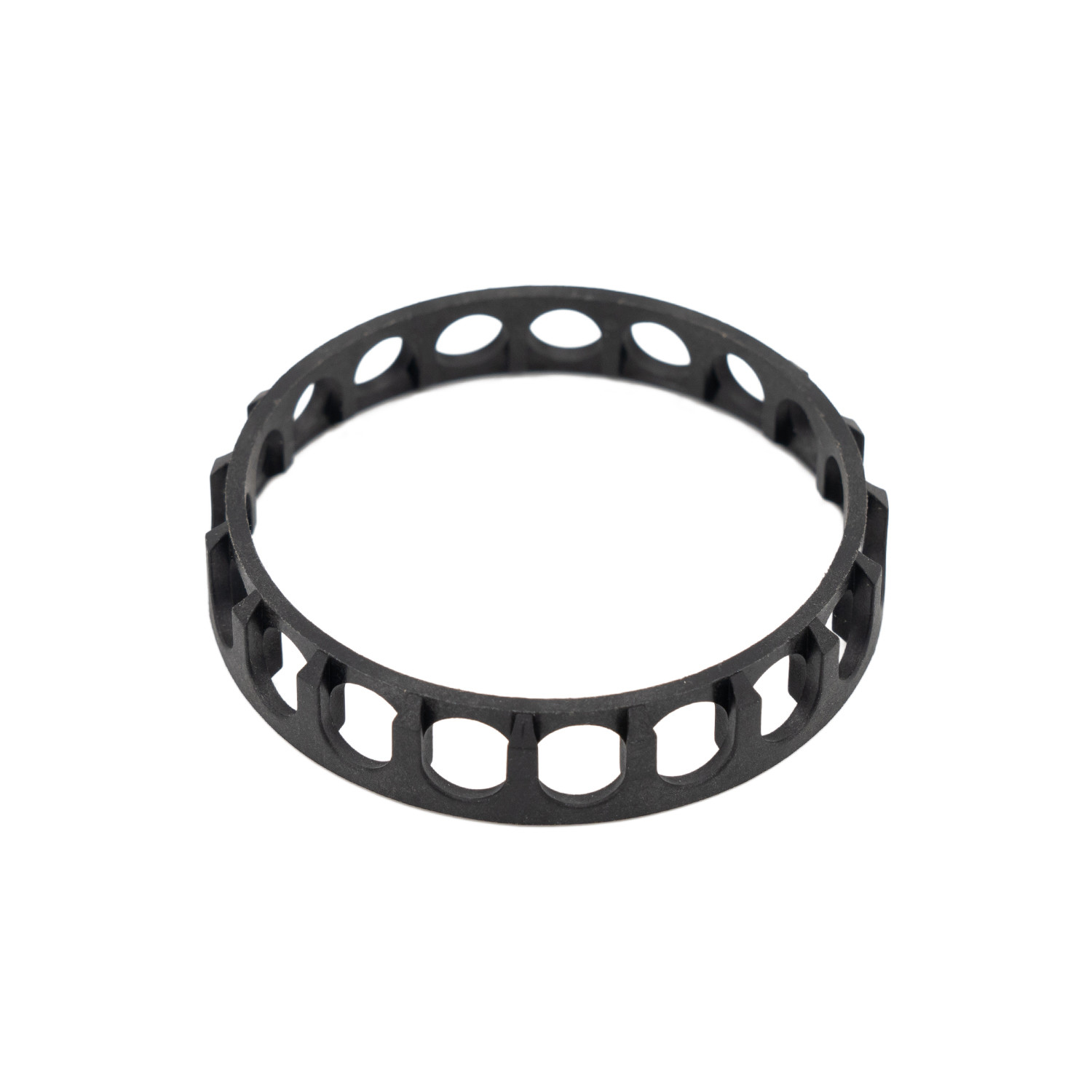

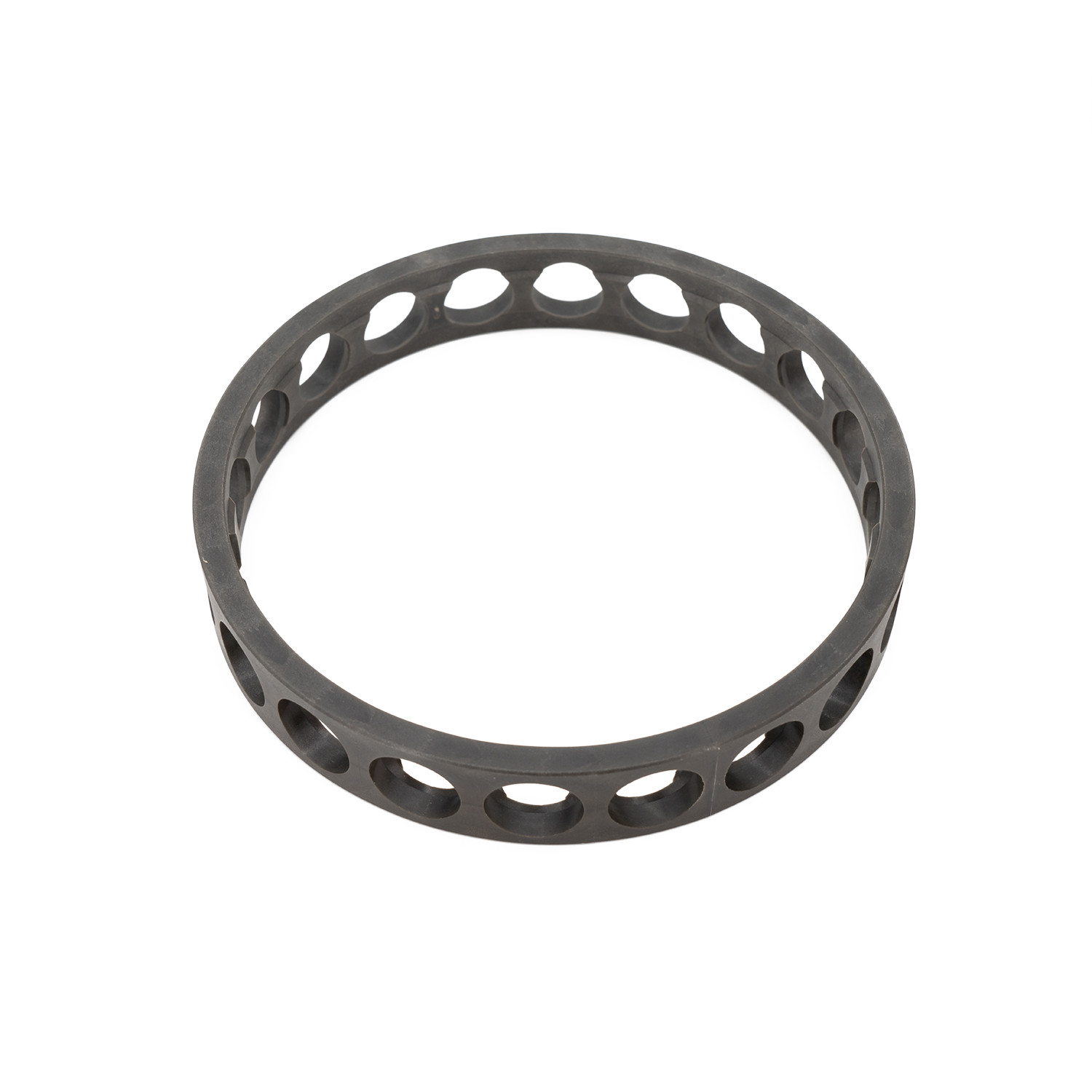

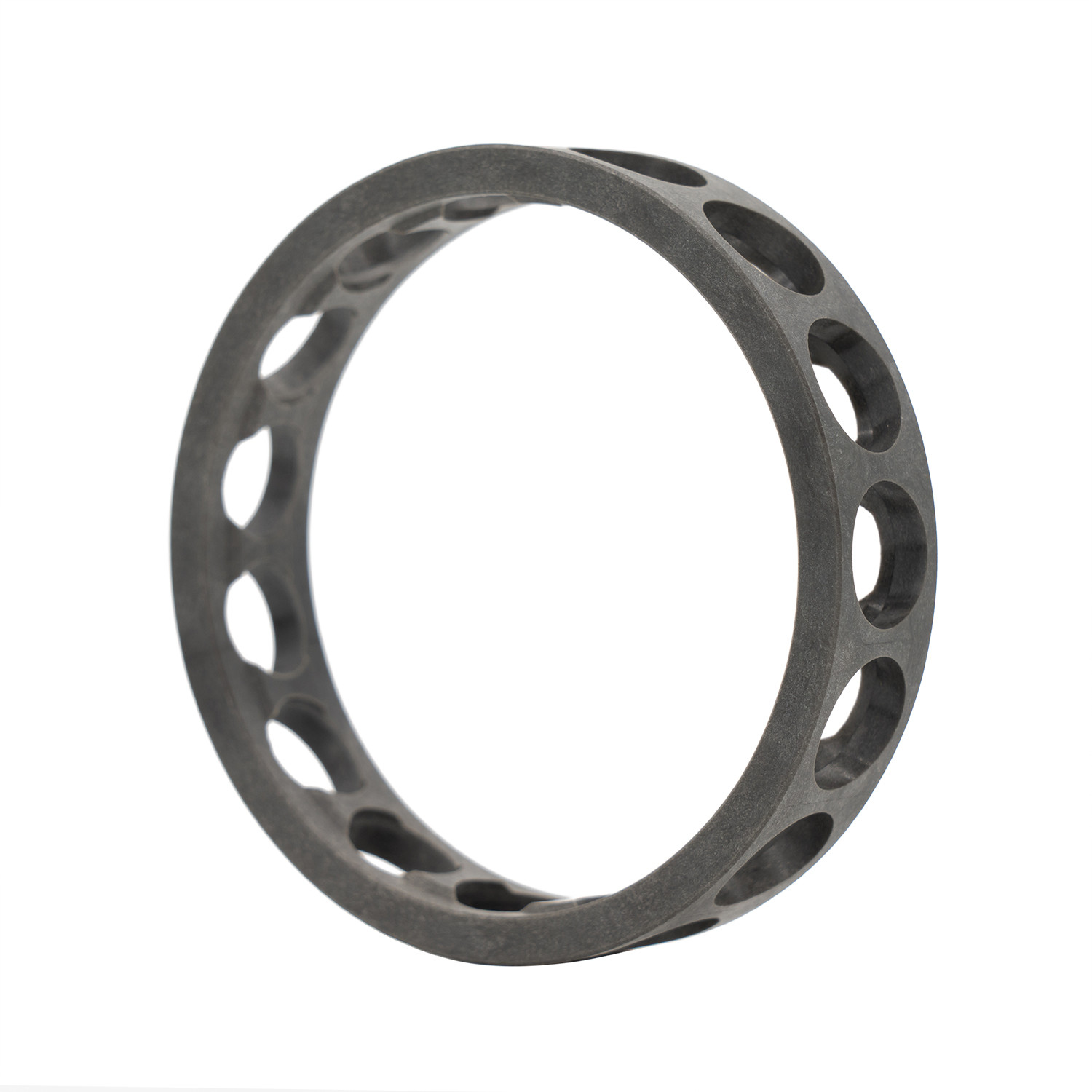

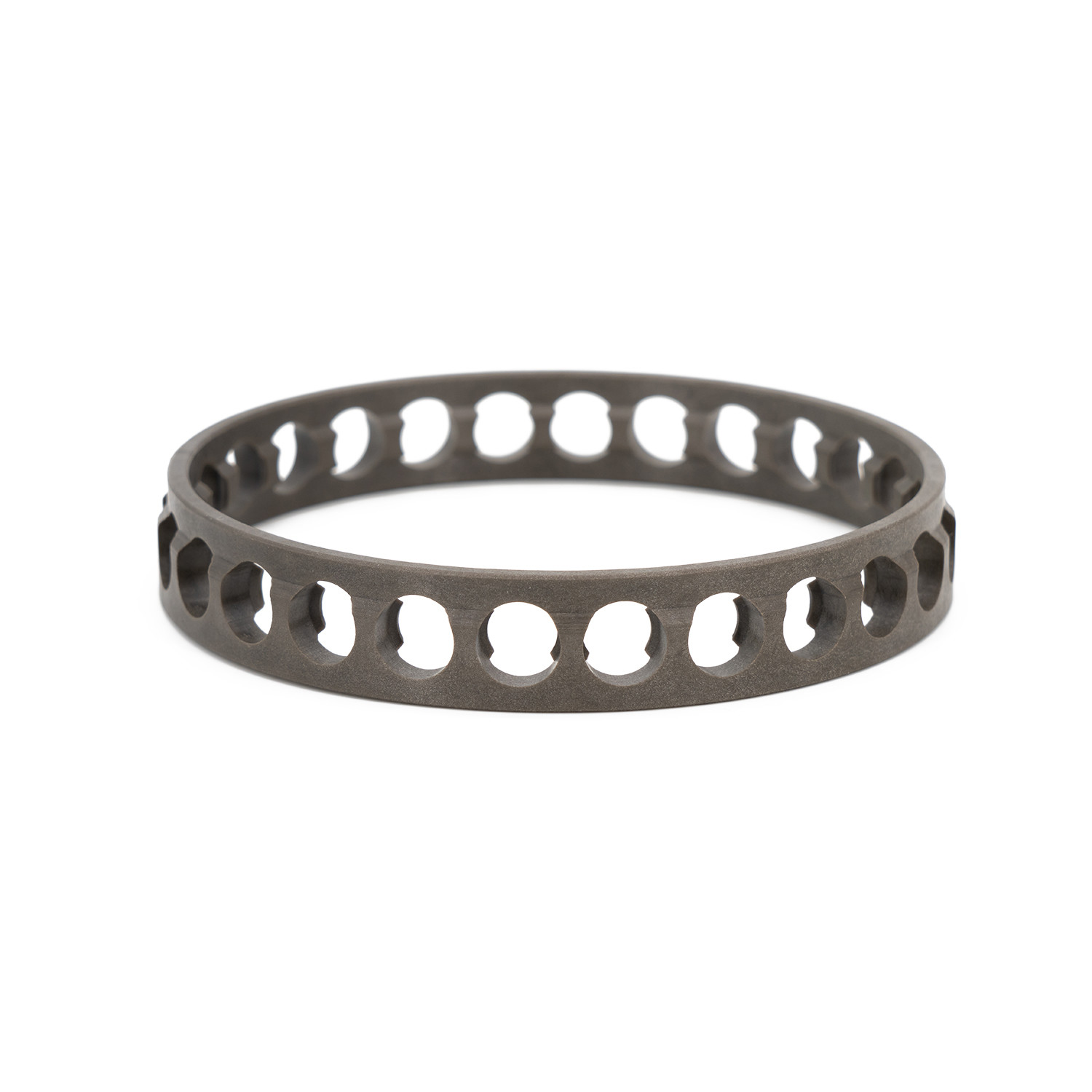

Angular contact ball bearing plastic cage



Material: DSM nylon PA46-GF25

Application:

Machine tool spindle (including spindle of CNC lathe, spindle of grinding machine and spindle of machining center),high frequency motor, centrifugal separator and so on. It can bear axial load and radial load at the same time and can work at higher speed.

Features:

Angular contact ball bearing plastic cage adopts glass fiber modified PA46, so it can bear the temperature from -40 to 150 ℃ and continuous use of 5000 hours at 150 ℃ and then can still maintain excellent mechanical properties. Comparing with other heat resistant plastics, angular contact ball bearing plastic cage has the features of longer service life, better fatigue resistance, better friction and wear resistance. The accuracy of angular contact ball bearing plastic cage can reach P2, P4 grade bearing requirements.

Model Central diameter Ball diameter Number of balls
7012C/AC 77.46 10.319 19
7013C/AC 82.50 10.319 21
7014C/AC 90.00 11.906 20
7015C/AC 95.00 11.906 21
7016C/AC 102.50 13.494 20
7017C/AC 107.50 13.494 21
7018C/AC 115.00 15.081 20
7019C/AC 120.00 14.288 22
7020C/AC 125.00 15.081 22



►Exhibition of Angular contact ball bearing plastic cage​:

ZYS Rolling Element Precision Bearing Ball 9cr18/9cr18mo Stainless Chrome Steel Ball, Silicon Nitride Ceramic Balls, Zro2 Zirconia Ceramic Ball G10 for Bearing
